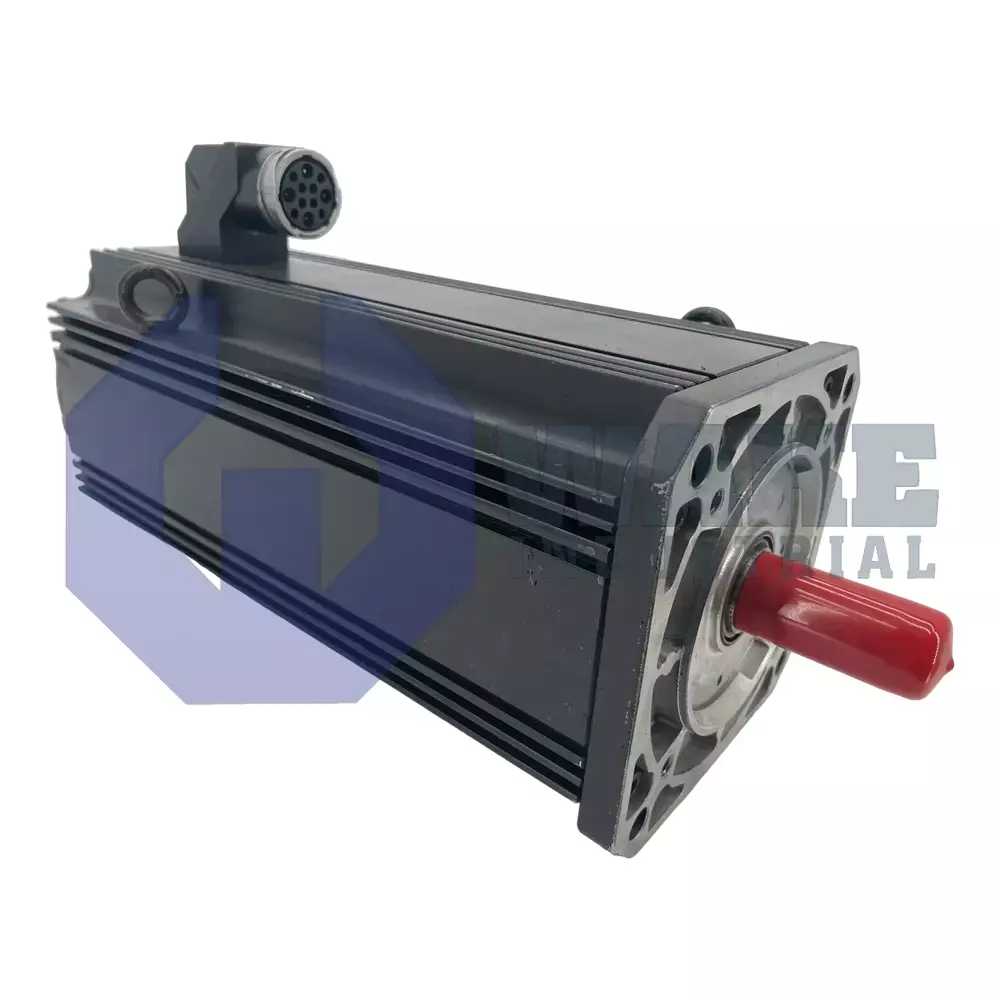

MKD112D-024-KP2-AN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911274813
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112D-024-KP2-AN is part of the MKD Synchronous Motors series and features a flange size of 192 mm and a centering diameter of 130 mm. This servo motor provides a continuous torque at standstill of 48.0 Nm and uses resolver feedback with an integrated encoder for absolute position detection. It has insulation class F, IP65 protection, and a shaft with keyway and seal.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112D-024-KP2-AN is a three-phase servo motor produced by Bosch Rexroth Indramat for the MKD Synchronous Motors series. In automated lines, it converts precisely regulated electrical power into mechanical rotation, allowing coordinated positioning, steady speed control, and repeatable motion in packaging stations, gantry axes, or CNC spindles. System precision of ±8 angular minutes helps the axis maintain accurate contouring during interpolated paths and repeated point-to-point moves.
At stall, the motor develops a continuous torque of 48.0 Nm, so the drive can be matched to sustained load demand without relying only on short-term overload values. A centering diameter of 130 mm and a flange size of 192 mm provide the mounting interface, while the size 112 stator laminations supply the magnetic volume needed for this output level and support accurate alignment to mating machine surfaces. Winding code 024 identifies the coil arrangement used with typical 300 V class inverters. Side-A routing for power and feedback is provided through an output connector, which helps keep cable runs organized toward the machine cabinet. Heat tolerance is supported by an F-class insulation system rated for 155 °C conductor temperature, and the enclosure has an IP65 rating that helps keep dust and low-pressure water jets away from internal components.
A permissible ambient range of 0–40 °C allows installation on the machine frame when surrounding airflow is not blocked by neighboring components or guards. Feedback is supplied by resolver-based electronics that return analog sine-cosine signals and commutation data, while multi-turn position tracking beyond 4096 mechanical revolutions is supported by absolute detection electronics in the same housing. The D-coded motor length gives the unit higher rotor inertia than shorter frame variants, which can help smooth speed changes on heavier loads. The shaft has a keyway for standard couplings, and a shaft seal helps block lubricant migration into the resolver chamber.
Frequently Asked Questions about MKD112D-024-KP2-AN:
Q: What is the centering diameter of the MKD112D-024-KP2-AN motor?
A: The MKD112D-024-KP2-AN features a centering diameter of 130 mm for secure mounting.
Q: What is the continuous torque at standstill for the MKD112D-024-KP2-AN?
A: This servo motor provides a continuous torque of 48.0 Nm at standstill.
Q: What encoder type does the MKD112D-024-KP2-AN motor use?
A: Resolver feedback with an integrated encoder is used for position detection in this motor.
Q: What is the protection rating of the MKD112D-024-KP2-AN servo motor?
A: The MKD112D-024-KP2-AN has a protection category of IP65, offering dust-tight and water jet-resistant construction.
Q: What type of shaft design is implemented in the MKD112D-024-KP2-AN?
A: A shaft with a keyway and shaft seal is configured on this model.
