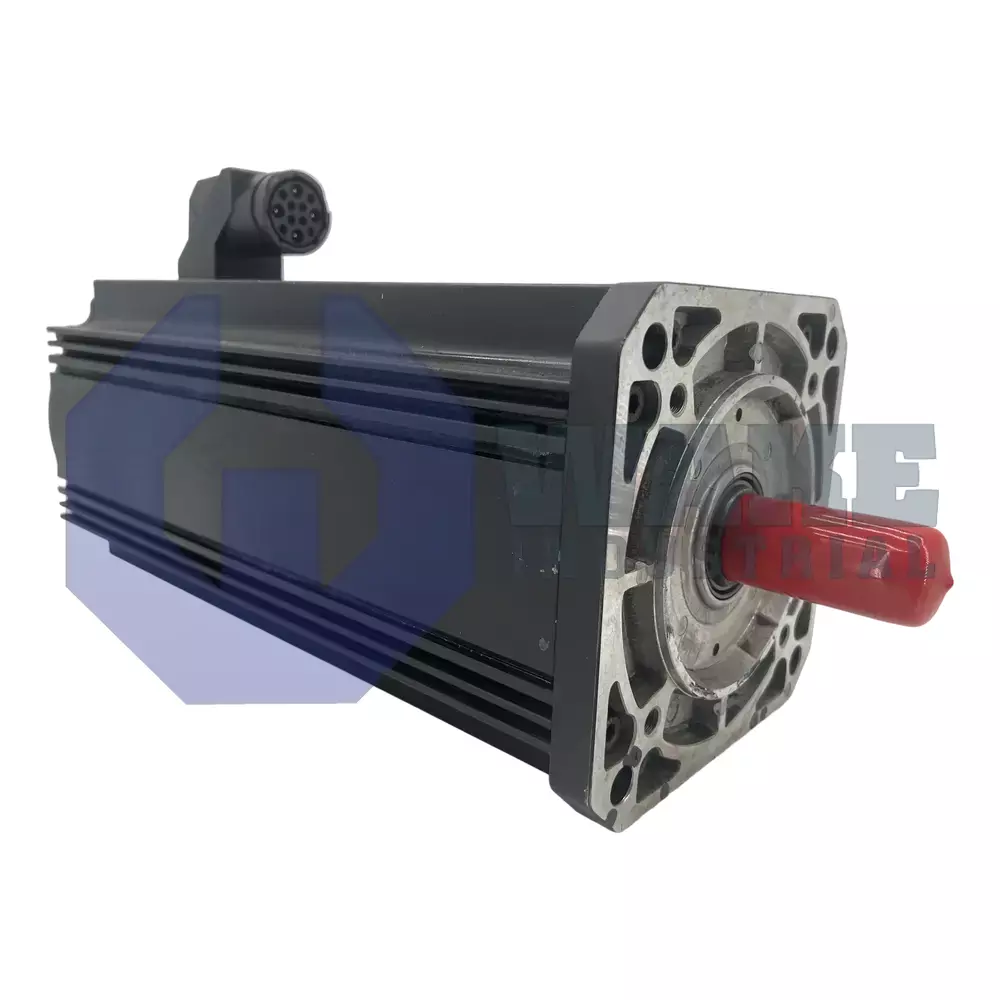

MKD112D-024-GG0-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911280708
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112D-024-GG0-BN is a servo motor from the MKD Synchronous Motors series with a continuous torque at standstill of 48.0 Nm and an insulation class F. It features a 192 mm flange size, a centering diameter of 130 mm, and resolver feedback for position detection. The motor has IP65 protection, includes a plain shaft with a shaft seal, and does not have a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112D-024-GG0-BN is a servo motor produced by Bosch Rexroth Indramat as part of the MKD Synchronous Motors series. In an automation cell, it links a drive controller to mechanical loads and delivers rotary motion that can be regulated for speed or position. Its electromagnetic design and feedback interface make it suitable for multi-axis systems where coordinated motion and repeatable positioning are required. This arrangement supports controlled movement on equipment that depends on stable torque delivery and consistent response to command changes.
At standstill, the rotor can supply 48.0 Nm of continuous torque, giving a clear reference for static load support. A housing rated IP65 blocks dust and low-pressure water jets, so the motor can be mounted outside a sealed cabinet when the surrounding machine layout requires it. The centering pilot measures 130 mm, which helps align the motor housing accurately during installation. Rotor angle is reported by resolver feedback, which is well suited for operation in environments with vibration and elevated temperatures. The motor is supplied without a holding brake, so any load that must remain fixed during power loss requires external holding force from the machine or drive system. Electrical power and feedback connections exit on side B through an output connector, while the winding code 024 and insulation class F indicate the thermal and electrical characteristics of the winding.
The mounting flange measures 192 mm, which sets the bolt pattern for direct attachment to machine frames or gearboxes. The ambient operating range is 0 to 40 °C, so the motor is intended for use within that surrounding air temperature window. Torque is transmitted through a plain shaft, and a shaft seal helps limit lubricant migration and contaminant entry at the shaft opening. The feedback system supports relative position detection with an accuracy of ±8 angular minutes, which is suitable for medium-precision contouring and general servo tasks. Motor size 112 and length code D indicate the frame and stack length used for this unit.
Frequently Asked Questions about MKD112D-024-GG0-BN:
Q: What type of encoder does the MKD112D-024-GG0-BN motor use for position detection?
A: This model features resolver feedback (RSF) for position detection, offering relative feedback information.
Q: What is the continuous torque at standstill for the MKD112D-024-GG0-BN motor?
A: The MKD112D-024-GG0-BN delivers a continuous standstill torque of 48.0 Nm.
Q: What is the protection category of the MKD112D-024-GG0-BN servo motor?
A: This motor has a protection rating of IP65, providing dust tightness and protection against water jets.
Q: What type of shaft and sealing arrangement is used on the MKD112D-024-GG0-BN motor?
A: A plain shaft design with a shaft seal is utilized on this model.
Q: What is the allowable ambient temperature range for the MKD112D-024-GG0-BN motor?
A: The MKD112D-024-GG0-BN operates within a permissible ambient temperature range of 0 to 40°C.
