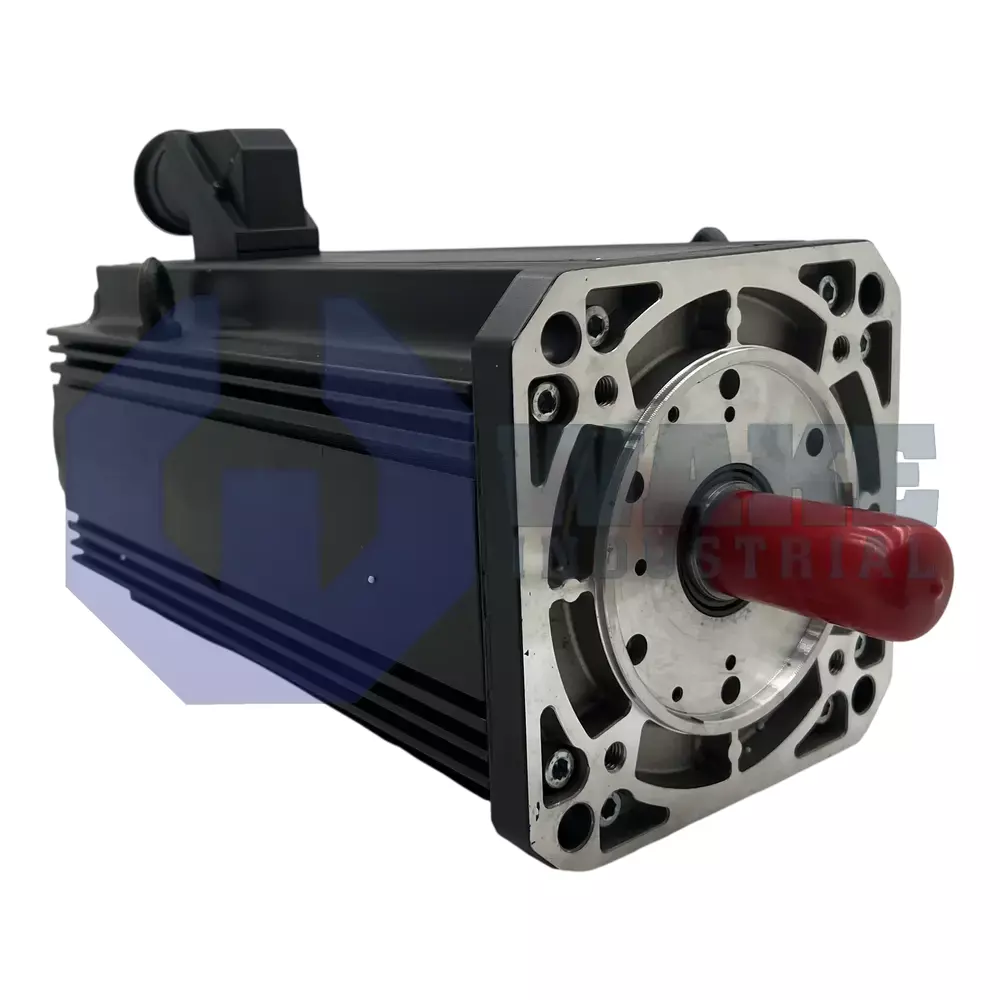

MKD112C-024-KP3-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911282463
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112C-024-KP3-BN is a servo motor from the MKD Synchronous Motors series. It has a continuous torque at standstill of 38.0 Nm, a holding brake torque of 70 Nm, and features a resolver feedback encoder with absolute position detection. The motor has a flange size of 192 mm, a centering diameter of 130 mm, and comes with a shaft with keyway and shaft seal.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112C-024-KP3-BN is a servo motor manufactured by Bosch Rexroth Indramat for the MKD Synchronous Motors series. It converts drive controller current into tightly regulated rotary motion for positioning, indexing, and transport axes in automated machinery. Permanent-magnet excitation and integrated feedback permit fast acceleration and accurate settling, supporting short cycle times on assembly lines, packaging stations, and multi-axis machining platforms. The motor is intended for indoor installation where high repeatability and continuous duty operation are required.
The mechanical interface begins with a centering diameter of 130 mm that aligns the housing to machinery frames. The mounting flange spans 192 mm, providing the bolt circle for rigid fastening. A keyed shaft and a shaft seal transmit torque while helping prevent oil ingress. During static loads, the motor sustains 38.0 Nm of continuous standstill torque, and the integrated brake can hold up to 70 Nm when power is removed. Rotor position is tracked by resolver feedback, providing analog sine-cosine signals to the drive for closed-loop control. Because the sensor sits inside the motor, no separate encoder mounting or alignment is necessary.
Power and signal leads exit on side B through a sealed output connector that groups phase, brake, and sensor conductors. The embedded counting electronics provide absolute position data over more than 4096 revolutions, eliminating homing after shutdown. Thermal behavior and current limits correspond to winding code 024, while motor length C and frame size 112 help match inertia and installation space requirements. Connection orientation also frees the front and opposite sides for coolant hoses or mechanical guards.
Frequently Asked Questions about MKD112C-024-KP3-BN:
Q: What shaft design does the MKD112C-024-KP3-BN motor use?
A: The MKD112C-024-KP3-BN features a shaft with keyway for secure mechanical coupling.
Q: Does the MKD112C-024-KP3-BN motor include a holding brake, and what is its torque?
A: This model is equipped with a holding brake, providing 70 Nm of torque to secure the axis when stopped.
Q: What type of feedback and position detection does the MKD112C-024-KP3-BN provide?
A: Resolver feedback with integrated encoder is used for position detection on this motor, delivering absolute position feedback for over 4096 revolutions.
Q: What is the flange size of the MKD112C-024-KP3-BN servo motor?
A: The flange size for the MKD112C-024-KP3-BN motor is 192 mm.
Q: What is the continuous torque at standstill for the MKD112C-024-KP3-BN motor?
A: Continuous torque at standstill for this model is rated at 38.0 Nm.
