MKD112C-024-KP0-LN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911297678
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

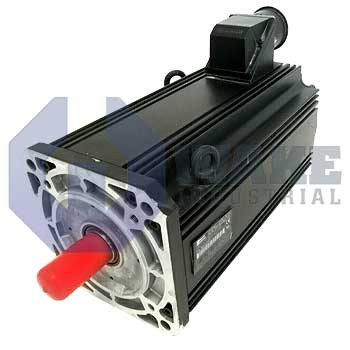

The Bosch Rexroth Indramat MKD112C-024-KP0-LN is a servo motor from the MKD Synchronous Motors series, featuring a flange size of 192 mm and a centering diameter of 130 mm. It provides 38.0 Nm of continuous torque at standstill and uses resolver feedback with an integrated encoder for absolute position detection. This motor has an IP65 protection category, F-class insulation, and operates within an ambient temperature range of 0 to 40°C.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112C-024-KP0-LN is a servo motor manufactured by Bosch Rexroth Indramat within the MKD Synchronous Motors series. Designed as a closed-loop drive element, it transforms electrical energy from the associated inverter into controlled rotational motion for positioning, conveying, or machining tasks in industrial automation environments. It pairs with digital drive controllers to form responsive axis modules in assembly lines and packaging machines. Its synchronous design allows the drive to regulate torque response closely during indexing, transfer, and coordinated axis movement. The motor is intended for applications that need repeatable motion, stable speed control, and accurate shaft positioning during changing load conditions.
At standstill, the motor can supply 38.0 Nm of continuous torque, enabling direct coupling to medium-mass loads without external gearing. A centering diameter of 130 mm aligns the stator precisely to the machine frame. The square flange measures 192 mm on each side and uses a standard bolt pattern for common machine interfaces. This mounting geometry helps keep shaft alignment consistent when the motor is installed on machine plates or gearbox adapters. The housing carries an IP65 rating, so internal windings and bearings are protected from airborne dust and low-pressure water jets during washdown cycles. Closed-loop accuracy is supported by a system precision of ±8 angular minutes, which is the maximum composite deviation between the commanded and actual shaft angle under rated conditions.
The power connector is oriented on the left side, which suits machines that route motor cables from that direction. This layout can reduce cable bending near the housing and supports orderly routing in compact machine layouts. The motor uses winding code 024, and the active section length marked as C balances torque density with the overall mass of this size 112 frame. Continuous operation is permitted at ambient temperatures of 0–40 °C, and insulation class F supports thermal durability during industrial duty. It has a shaft with a keyway for standard couplings, and a shaft seal helps limit lubricant escape. Resolver feedback supports position monitoring over more than 4096 revolutions, and the motor is supplied without a holding brake, so static load retention must be handled by the drive or by external mechanisms.
Frequently Asked Questions about MKD112C-024-KP0-LN:
Q: What is the continuous torque at standstill for the MKD112C-024-KP0-LN motor?
A: The MKD112C-024-KP0-LN servo motor delivers a continuous torque of 38.0 Nm at standstill.
Q: What type of encoder is used in the MKD112C-024-KP0-LN servo motor?
A: This model utilizes resolver feedback with an integrated encoder for its position detection system.
Q: Does the MKD112C-024-KP0-LN servo motor come with a holding brake?
A: The MKD112C-024-KP0-LN motor does not include a holding brake from the factory.
Q: What kind of shaft design does the MKD112C-024-KP0-LN have?
A: This model features a shaft with keyway and comes with a shaft seal for added protection.
Q: What is the protection category rating for the MKD112C-024-KP0-LN servo motor?
A: The MKD112C-024-KP0-LN is constructed to meet the IP65 protection category for dust and water ingress.
