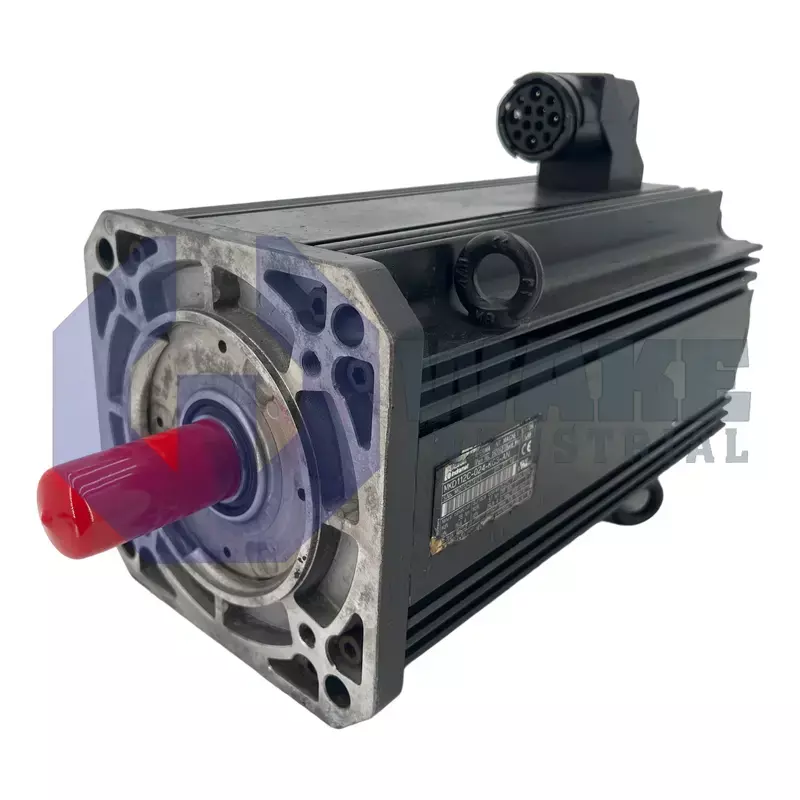

MKD112C-024-KG3-AN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911282092
The Bosch Rexroth Indramat MKD112C-024-KG3-AN is a servo motor from the MKD Synchronous Motors series. It offers a continuous standstill torque of 38.0 Nm, with resolver feedback and absolute position detection for over 4096 revolutions. The motor features a flange size of 192 mm, a centering diameter of 130 mm, and has a holding brake with a brake torque of 70 Nm.
Internal Product Review
The MKD112C-024-KG3-AN is a Bosch Rexroth Indramat servo motor designed for accurate motion control, with resolver feedback and absolute position detection. Continuous standstill torque of 38.0 Nm and a 70 Nm holding brake support confident load handling in demanding servo applications. IP65 protection with a shaft seal makes the unit a strong choice for dependable industrial service.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112C-024-KG3-AN servo motor is manufactured by Bosch Rexroth Indramat and belongs to the MKD Synchronous Motors series. Designed for operation with digital inverters, it delivers tightly controlled rotary power to indexing tables, pick-and-place axes, and other motion stations where cycle time and positional repeatability are critical. Its size 112 housing with motor length C gives it a medium-frame format for applications that need substantial torque without moving to a larger mounting pattern. All power and feedback conductors exit on Side A through a dedicated output connector, which helps simplify cable routing when the motor is mounted in compact machine sections.
At standstill, the motor supplies a continuous torque of 38.0 Nm, which allows sustained load holding without overheating during demanding duty cycles. The square flange measures 192 mm and is paired with a centering pilot of 130 mm, which helps align the frame accurately against machine surfaces. A spring-applied brake produces up to 70 Nm of static locking torque so vertical or suspended axes remain fixed during power loss. The housing is rated IP65, which blocks dust ingress and low-pressure water jets. The plain shaft carries a shaft seal, and the absolute resolver provides multi-turn position data exceeding 4096 revolutions for closed-loop control.
Class F insulation permits winding temperatures up to 155 °C, supporting repeated load cycles while maintaining thermal margin in the stator. System accuracy is specified at ±8 angular minutes, which helps the controller maintain precise positioning from the feedback system. Electrical characteristics follow winding code 024, so the matching drive can apply the proper motor parameters for voltage constant and inductance. The allowed ambient range of 0 to 40 °C maintains output capability without derating, and the integrated shaft seal supports operation in mildly wet or dusty areas.
