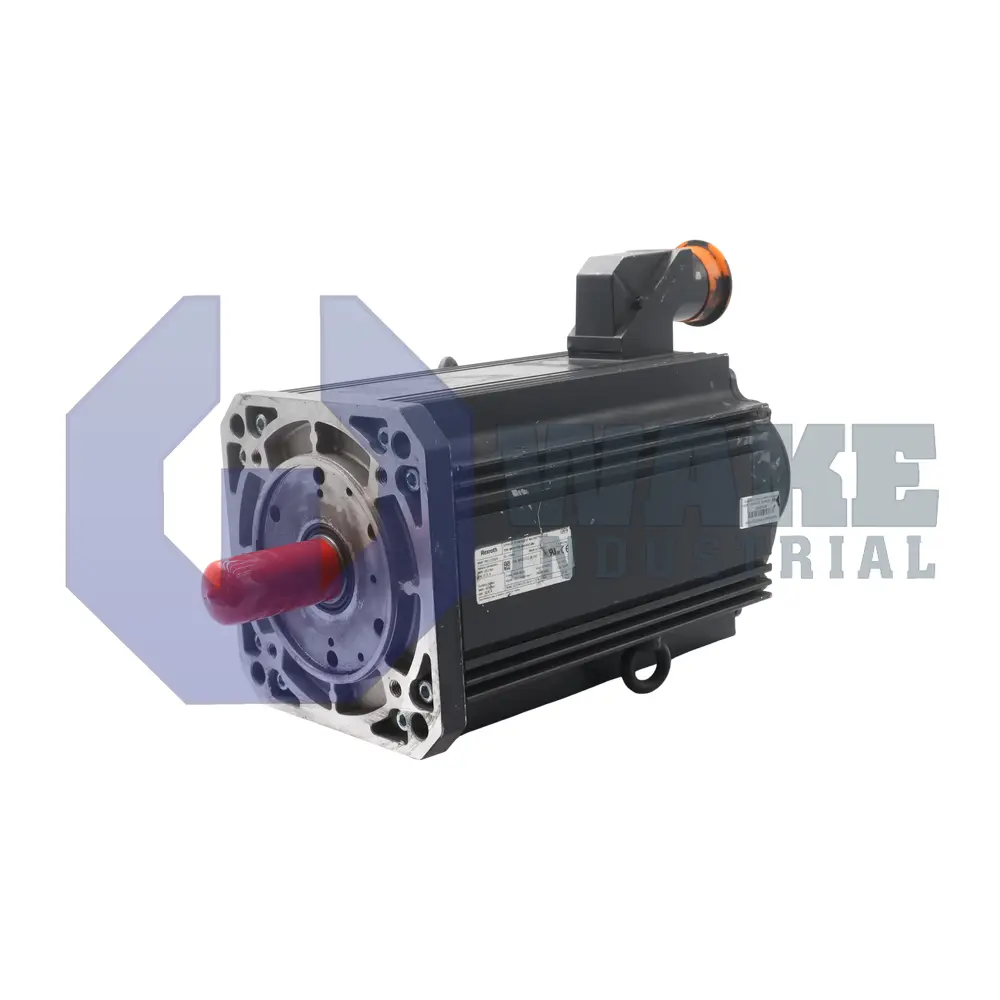

MKD112B-048-GG0-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911268916
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112B-048-GG0-BN is a servo motor from the MKD Synchronous Motors series, featuring a continuous torque at standstill of 28.0 Nm and a plain shaft design with a shaft seal. This model comes with resolver feedback for position detection and has a 192 mm flange size, centering diameter of 130 mm, and connects via an output connector on Side B.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112B-048-GG0-BN is a servo motor built by Bosch Rexroth Indramat for the MKD Synchronous Motors series. It is supplied for industrial automation applications where precise rotary positioning is required on packaging, printing, and material-handling machines. Compatible servo controllers regulate current, speed, and position in closed-loop operation, which helps the motor deliver repeatable axis motion during synchronized starts, stops, and reversals in demanding automated systems.
The motor can deliver a continuous standstill torque of 28.0 Nm, giving machinery the ability to hold or slowly move loads without overheating. Mechanical alignment during installation is aided by a centering diameter of 130 mm, while a flange size of 192 mm matches common mounting patterns for machine interfaces. Rotor position is monitored with resolver feedback (RSF), which provides analog sine-cosine signals for smooth speed and position evaluation by the drive. Electrical and feedback leads exit on side B, which can simplify cable routing where the connection direction must face away from adjacent axes. The B-length housing and 112 frame size provide additional thermal mass for cyclic-duty operation.
Cabling terminates through an output connector, which carries both power and feedback conductors in one interface. The motor uses a plain shaft for direct coupling to keyed or clamped hubs, and winding code 048 matches the electrical characteristics expected by the paired drive controller. Position feedback is relative, so the axis requires a homing routine after power-up before the machine position is known. A shaft seal helps limit dust or fluid ingress at the coupling interface, and the motor is supplied without a holding brake, so stationary loads need external retention when power is removed.
Frequently Asked Questions about MKD112B-048-GG0-BN:
Q: What is the continuous torque at standstill for the MKD112B-048-GG0-BN motor?
A: The MKD112B-048-GG0-BN motor provides 28.0 Nm of continuous torque at standstill.
Q: What type of encoder feedback does the MKD112B-048-GG0-BN motor use?
A: This model uses resolver feedback (RSF) for relative position detection.
Q: What is the shaft design of the MKD112B-048-GG0-BN motor?
A: The MKD112B-048-GG0-BN features a plain shaft with a shaft seal for extra protection.
Q: Where is the connection located on the MKD112B-048-GG0-BN servo motor and what type is used?
A: Connection for this motor is located on Side B and uses an output connector.
Q: Does the MKD112B-048-GG0-BN motor have a holding brake?
A: This motor does not include a holding brake.
