MKD112B-024-KP0-LN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911308227
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

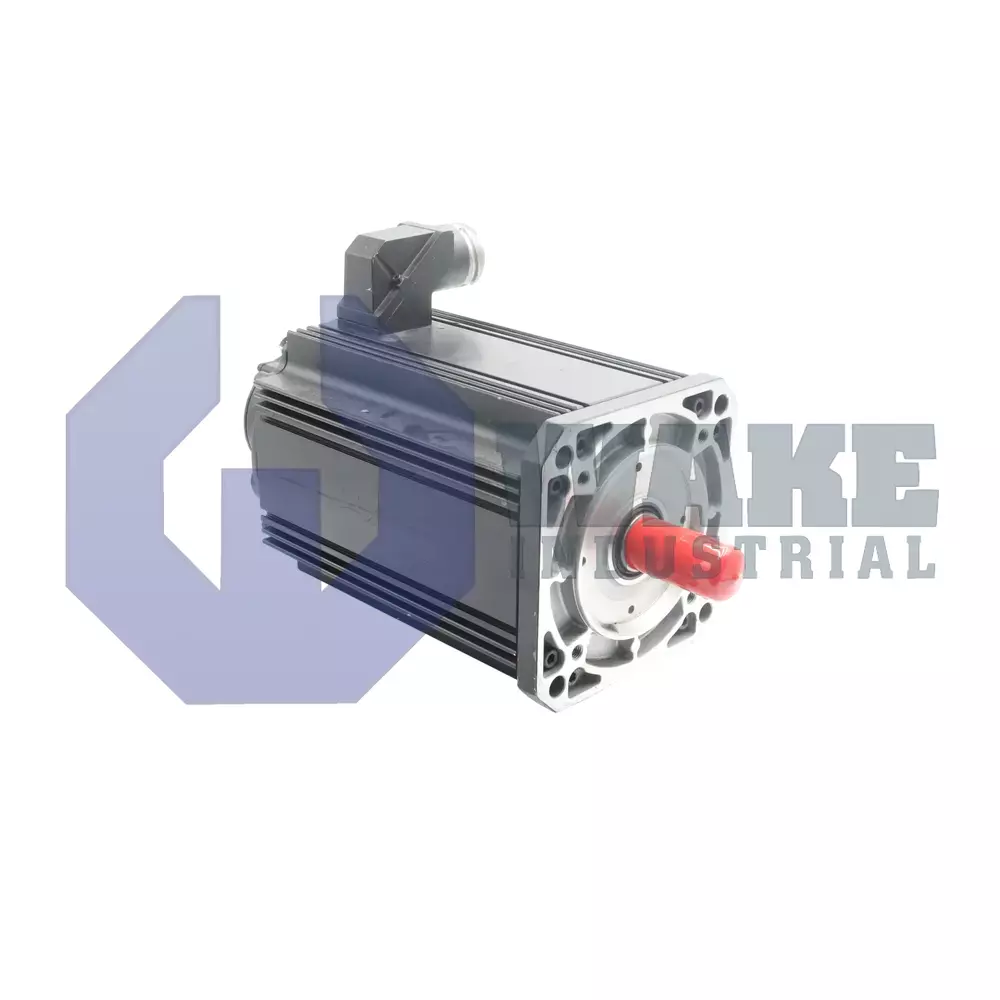

The Bosch Rexroth Indramat MKD112B-024-KP0-LN is a servo motor from the MKD Synchronous Motors series with a centering diameter of 130 mm and a flange size of 192 mm. It features resolver feedback with an integrated encoder for absolute position detection above 4096 revolutions and provides a continuous torque of 28.0 Nm at standstill. This motor has a shaft with keyway, includes a shaft seal, and uses a left-facing power connector.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The Bosch Rexroth Indramat MKD112B-024-KP0-LN is a three-phase AC servo motor in the MKD Synchronous Motors series. It serves as a drive element in automated press, handling, and packaging stations where precise velocity and torque control are required. The motor combines electronic commutation with resolver-based feedback so the connected drive can close a high-resolution position loop without additional sensors. Its mechanical outline follows the 112 size class and supports direct flange mounting to gearboxes or machine frames. This layout makes the motor suitable for axis systems that need accurate motion response and stable operation under changing loads.
The mechanical interface is fixed by a centering shoulder of 130 mm, allowing accurate alignment between the motor and the driven machine. At standstill, the electromagnetic system can supply 28.0 Nm continuously, which supports static loads on vertical or indexing axes. Rotor position is measured with resolver feedback integrated into the housing, providing analog sine-cosine signals to the controller. The square flange measures 192 mm on each side and follows ISO dimensions so existing brackets can be reused. For applications that rely on external holding devices, the unit is specified without a holding brake to reduce mass and inertia. The centering shoulder and square flange also help keep the motor aligned with mating equipment during installation.
Power is introduced through a left-oriented power connector, simplifying cable routing when the cabinet is on that side of the machine. The drive end uses a shaft with keyway so torque is transmitted through a positive mechanical fit without a clamping hub. A dedicated shaft seal guards the front bearing against splash or lubricant ingress during washdown cycles. Feedback electronics support absolute position detection over 4096 revs, allowing restart without a new homing sequence after power loss. Thermal and electrical behavior corresponds to winding code 024, which matches drives that can supply the required current and voltage for this B-length stator. The protected shaft end and integrated feedback arrangement support reliable operation in machines that need consistent position information at startup.
Frequently Asked Questions about MKD112B-024-KP0-LN:
Q: What is the centering diameter of the MKD112B-024-KP0-LN motor?
A: The MKD112B-024-KP0-LN features a centering diameter of 130 mm, allowing for precise alignment during installation.
Q: What type of encoder and position detection does the MKD112B-024-KP0-LN utilize?
A: This model uses resolver feedback with an integrated encoder, supporting absolute position detection for over 4096 revolutions.
Q: What shaft configuration and sealing does the MKD112B-024-KP0-LN provide?
A: A shaft with keyway and shaft seal is included on the MKD112B-024-KP0-LN, offering secure mechanical coupling and protection against contaminants.
Q: What is the continuous torque at standstill of the MKD112B-024-KP0-LN?
A: The continuous torque at standstill for this motor is rated at 28.0 Nm.
Q: Does the MKD112B-024-KP0-LN servo motor include a holding brake?
A: The MKD112B-024-KP0-LN does not include a holding brake.
