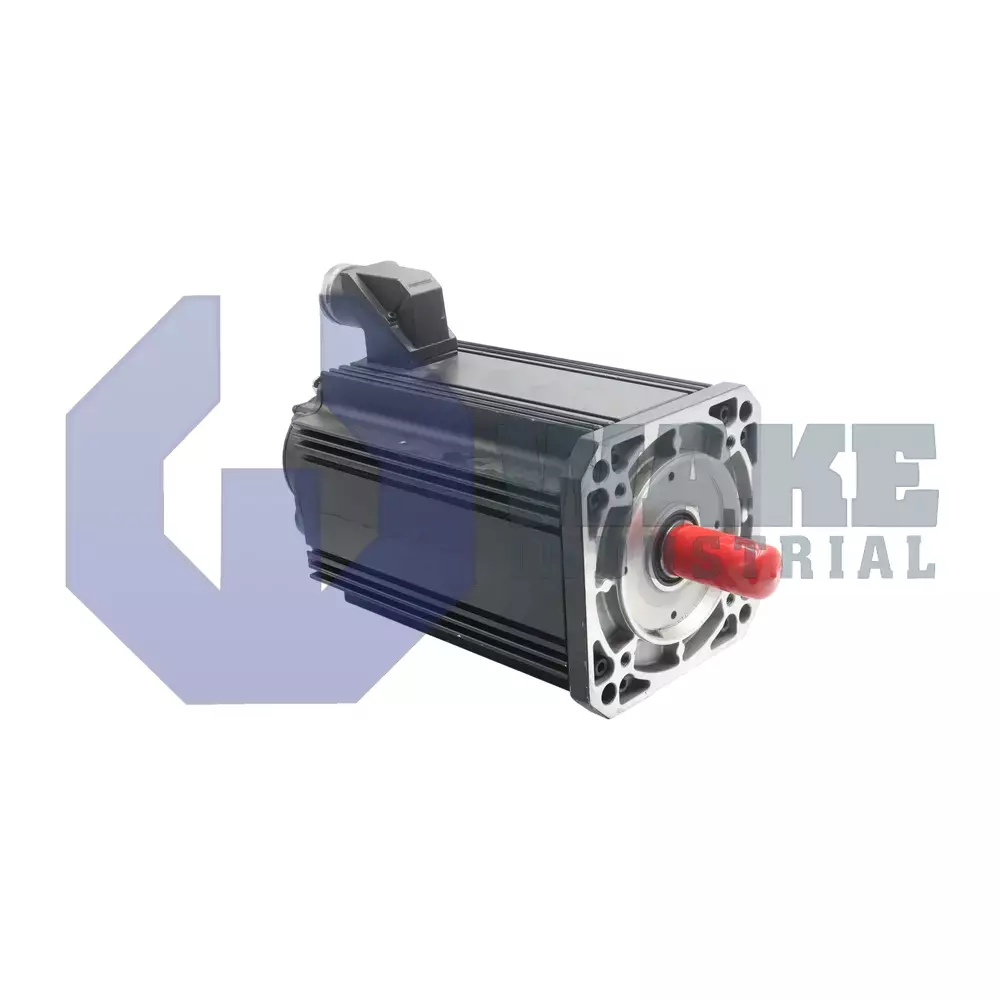

MKD112B-024-KG2-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911307519
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112B-024-KG2-BN is a servo motor from the MKD Synchronous Motors series featuring a plain shaft design with a shaft seal and flange size of 192 mm. It provides a continuous torque at standstill of 28.0 Nm and offers resolver feedback with an integrated encoder for absolute position detection over 4096 revolutions.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112B-024-KG2-BN is a servo motor manufactured by Bosch Rexroth Indramat within the MKD Synchronous Motors series. As a rotary actuator for industrial automation, it converts drive current into controlled torque and speed for positioning tasks on machine tools, packaging lines, and material-handling axes. When paired with a compatible drive controller, it supports precise axis movement during repeated starts, stops, and speed changes. Its synchronous design helps the drive system maintain smooth rotation and accurate response under changing load conditions.
A centering diameter of 130 mm aligns the flange, and the square mounting face measures 192 mm across. On this model, all power and feedback leads exit on Side B, and the housing uses an output connector that mates with standard hybrid cables for clean cable routing. With its B length code, the stator stack fits within medium-depth cabinets and sustains a continuous standstill torque of 28.0 Nm, allowing closed-loop regulation against static loads without overheating. Size code 112 is used with coupling hardware common to the manufacturer’s 100-series drives, and a shaft seal helps keep airborne coolant or oil out of the front bearing chamber. This layout also helps preserve space around the motor face where cable paths are constrained by nearby guards, covers, or mounting structures.
Motion control accuracy is delivered through the integrated resolver feedback unit, which produces analog sine-cosine signals that the drive converts into high-resolution rotor angle data. Combined with Absolute (>4096 revs) multi-turn capability, the axis powers up with immediate position awareness and can return to stored positions without a homing cycle. The mechanical output end uses a plain shaft, which suits direct couplings or gearboxes where a keyway is not required. The stator uses winding code 024, which sets the coil resistance and inductance for use with 300 V DC bus drives while supporting responsive current rise. That combination supports stable low-speed control as well as consistent feedback during rapid direction changes.
Frequently Asked Questions about MKD112B-024-KG2-BN:
Q: What is the continuous torque at standstill for the MKD112B-024-KG2-BN motor?
A: The MKD112B-024-KG2-BN servo motor features a continuous torque of 28.0 Nm at standstill.
Q: What type of encoder feedback does the MKD112B-024-KG2-BN motor use?
A: This motor provides resolver feedback with an integrated encoder for precise position detection.
Q: What kind of shaft design does the MKD112B-024-KG2-BN motor have?
A: A plain shaft design is equipped on the MKD112B-024-KG2-BN, ideal for secure and smooth coupling to machinery.
Q: What level of position detection capability does the MKD112B-024-KG2-BN provide?
A: The MKD112B-024-KG2-BN supports absolute position detection for more than 4096 revolutions.
Q: Where is the connection direction and type located on the MKD112B-024-KG2-BN?
A: Side B of the motor is where the output connector is located for electrical connection.
