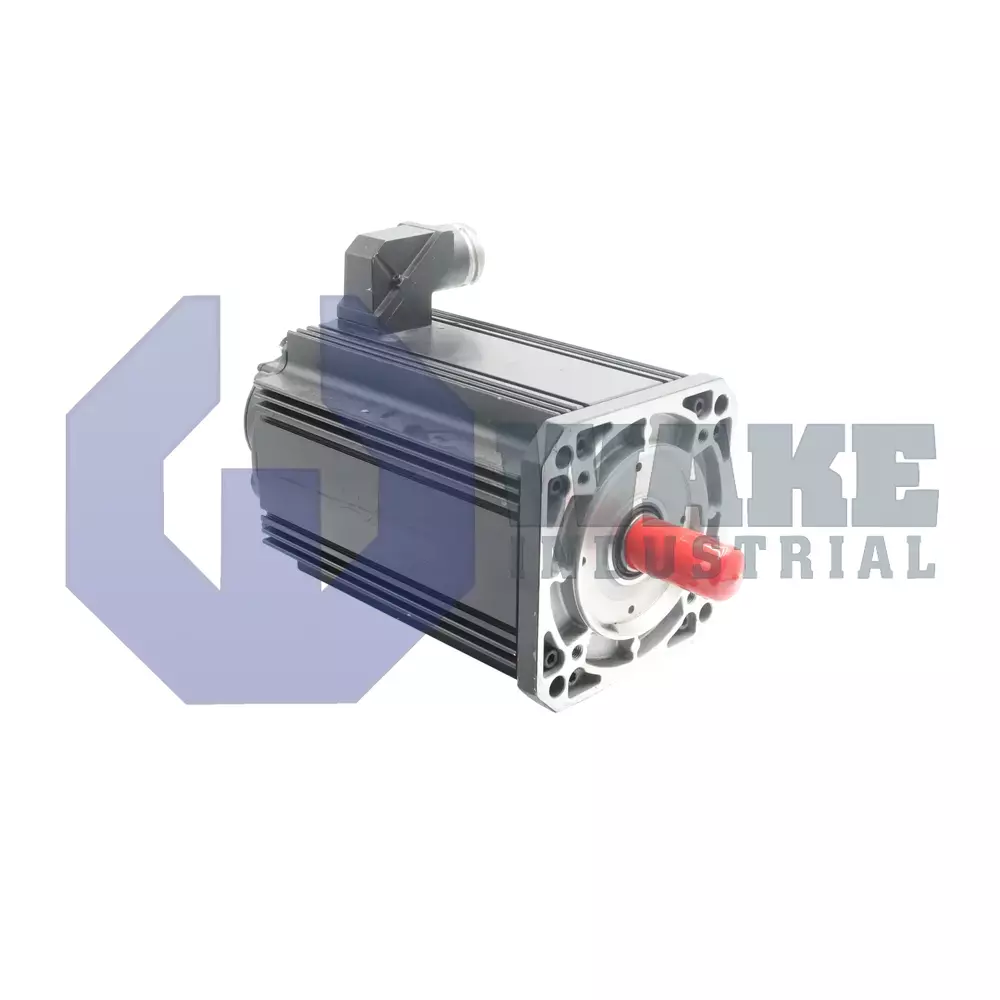

MKD112B-024-KG1-LN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911279479
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112B-024-KG1-LN is a servo motor from the MKD Synchronous Motors series with a flange size of 192 mm and a centering diameter of 130 mm. It features resolver feedback with an integrated encoder for absolute position detection over 4096 revolutions and a holding brake with 22 Nm of torque. This motor has IP65 protection, a plain shaft with shaft seal, and offers 28.0 Nm continuous torque at standstill.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112B-024-KG1-LN is a three-phase permanent-magnet servo motor built by Bosch Rexroth Indramat within the MKD Synchronous Motors series. It is intended for closed-loop industrial axes where rapid torque delivery and precise position control are required, such as gantry drives, tool changers, or packaging stations. When paired with a compatible digital drive controller, the motor converts commanded current into regulated mechanical output for coordinated motion. Because it is designed for servo duty, it can support repeated starts, stops, and position corrections under controller supervision. This makes it suitable for machinery that needs quick response and repeatable positioning during continuous production.
The motor mounts with a 192 mm square flange and a concentric 130 mm centering diameter, which helps align the housing accurately to the machine interface. The square flange supports rigid face mounting, while the centering shoulder helps maintain concentric installation with couplings or gearheads. The shaft is protected by an oil seal, and the motor can deliver a continuous standstill torque of 28.0 Nm. An integral holding brake rated at 22 Nm is released electrically and helps hold the axis when power is removed. External cabling enters from the left side through a sealed power connector, and the housing carries an IP65 rating that resists dust and water jets.
In operation, the MKD112B unit can run in ambient air from 0–40 °C without output derating, and its Class F insulation tolerates winding temperatures up to 155 °C. Motion feedback is provided by Resolver feedback, allowing the drive to monitor rotor position with a control accuracy window of ±8 angular minutes. This feedback format supports stable position monitoring across the motor’s operating range and works well in closed-loop servo applications. Winding code 024 identifies the electrical configuration used for this motor, while the B frame length and 112 frame size provide a balance between inertia and dynamic response.
Frequently Asked Questions about MKD112B-024-KG1-LN:
Q: What is the continuous torque at standstill for the MKD112B-024-KG1-LN motor?
A: The MKD112B-024-KG1-LN servo motor provides a continuous torque at standstill of 28.0 Nm.
Q: What type of encoder does the MKD112B-024-KG1-LN servo motor use for position detection?
A: This model features resolver feedback with an integrated encoder.
Q: Does the MKD112B-024-KG1-LN include a holding brake, and what is its torque?
A: The MKD112B-024-KG1-LN is equipped with a holding brake that provides a holding brake torque of 22 Nm.
Q: What is the position detection capability of the MKD112B-024-KG1-LN motor?
A: This servo motor offers absolute position detection for more than 4096 revolutions.
Q: What level of protection does the MKD112B-024-KG1-LN provide against dust and water?
A: The MKD112B-024-KG1-LN has a protection rating of IP65, allowing it to operate in environments with dust and water jet exposure.
