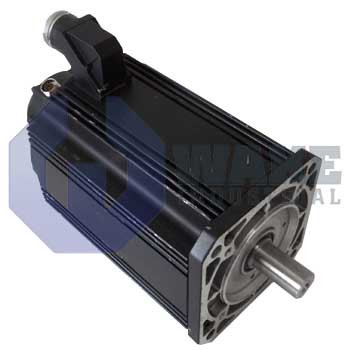

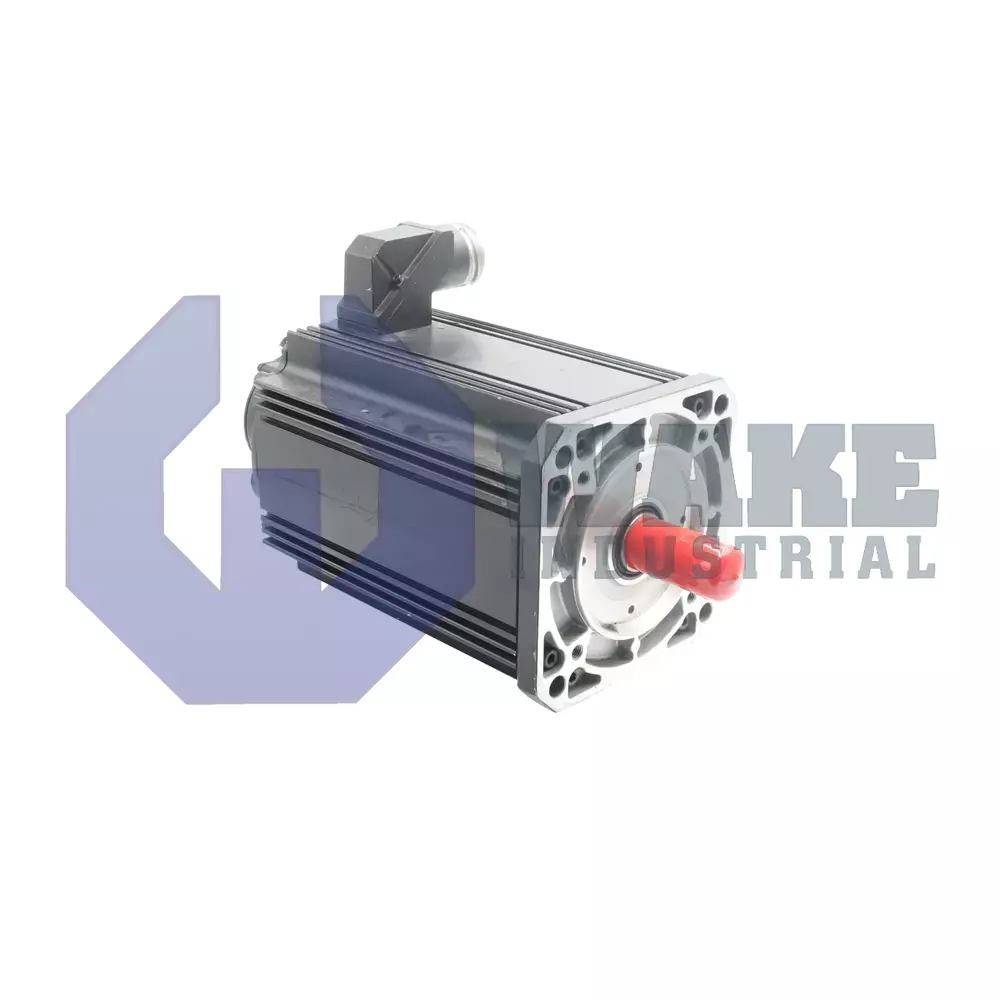

MKD112B-024-GP0-LN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911308632
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112B-024-GP0-LN is a servo motor from the MKD Synchronous Motors series with a continuous torque at standstill of 28.0 Nm and a flange size of 192 mm. It features resolver feedback for encoder type, a shaft with keyway, and a left-side power connector.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112B-024-GP0-LN is a servo motor produced by Bosch Rexroth Indramat as part of the MKD Synchronous Motors series. It is intended for closed-loop industrial automation tasks where precise torque and speed control are required, such as indexing tables, packaging axes, and material-handling gantries. The motor couples with a compatible drive controller to translate commanded current into exact shaft movement, allowing coordinated multi-axis operation in production cells and assembly systems. This operating role makes it suitable for equipment that depends on repeatable positioning during frequent starts, stops, and speed changes.
A continuous stall capability of 28.0 Nm permits the motor to hold load torque without overheating during static or low-speed duties. The centering diameter of 130 mm aligns the housing to mounting fixtures, while a 192 mm square flange provides the bolt pattern for rigid attachment to the machine frame. Position information is generated by resolver feedback, giving analog sinusoidal signals that the drive converts into high-resolution digital position data. Cabling leaves the housing on the left side, which can simplify wiring runs when motors are installed in mirrored pairs or tight enclosures. This mounting and feedback arrangement supports stable mechanical alignment and consistent motion control throughout repeated operating cycles.
An integrated power connector carries phase conductors and protective earth without auxiliary junction boxes, and mechanical output is delivered through a shaft with keyway that locks pulleys or couplings against slip under cyclic torque. A dedicated shaft seal keeps lubricant inside the bearing cavity and blocks dust or coolant from entering, supporting the IP65 protection class of the enclosure. Electrical characteristics correspond to winding code 024, which matches the motor to drives that can supply the required voltage constant and current range. Because the unit is supplied without a holding brake, external mechanical locking or drive torque must maintain axis position during power loss or emergency stop events. This layout suits servo axes that use direct couplings, belt drives, or similar power transmission elements.
Frequently Asked Questions about MKD112B-024-GP0-LN:
Q: What is the continuous torque at standstill for the MKD112B-024-GP0-LN motor?
A: The MKD112B-024-GP0-LN features a continuous torque output of 28.0 Nm at standstill.
Q: What type of encoder does the MKD112B-024-GP0-LN motor use for feedback?
A: This motor uses resolver feedback (RSF) to provide relative position detection.
Q: What is the flange size of the MKD112B-024-GP0-LN servo motor?
A: The MKD112B-024-GP0-LN has a 192 mm flange size for mounting purposes.
Q: What shaft features are present on the MKD112B-024-GP0-LN motor?
A: The shaft includes a keyway and is equipped with a shaft seal for added protection.
Q: Does the MKD112B-024-GP0-LN motor come with a holding brake?
A: This model is manufactured without a holding brake.
