MKD112A-058-KP0-BN
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911308434
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

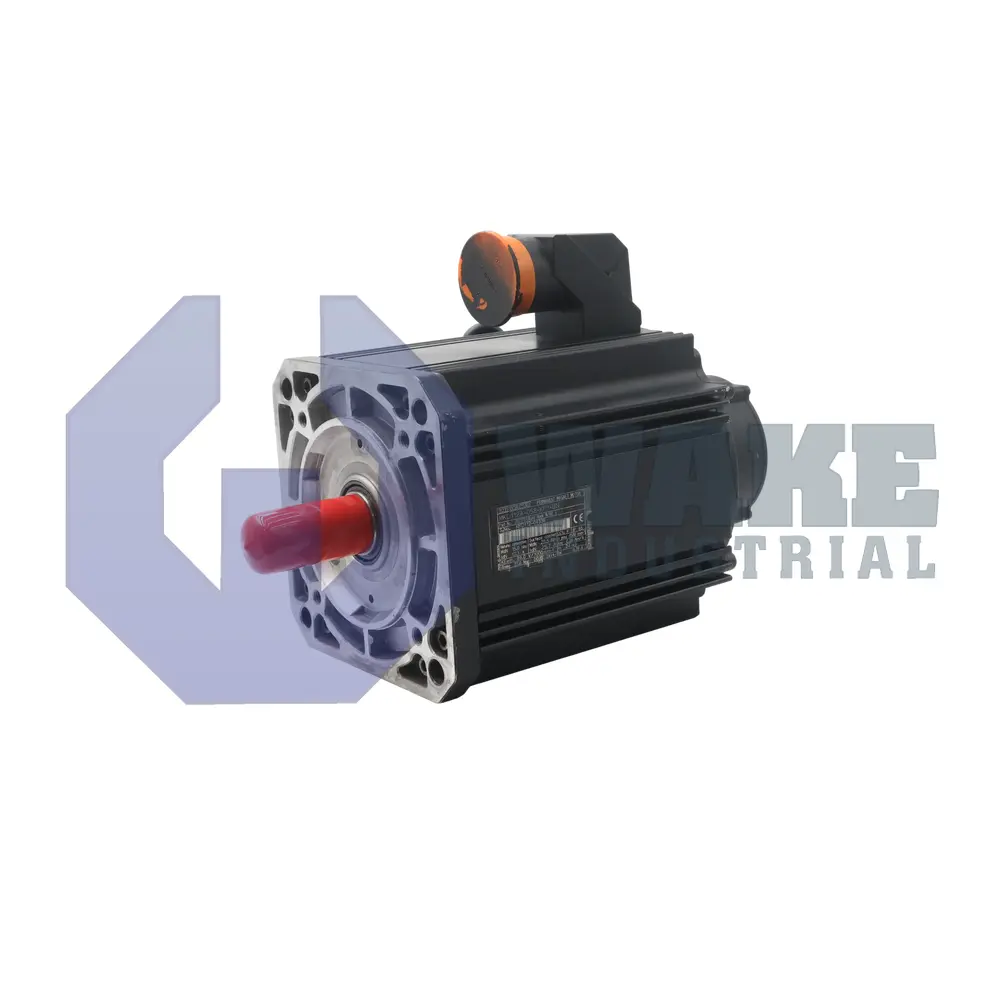

The Bosch Rexroth Indramat MKD112A-058-KP0-BN, a member of the MKD Series, is a synchronous servomotor featuring natural convection cooling. This motor offers a nominal power of 9 kW, a rated torque of 28 Nm, and operates at a nominal speed of 3000 RPM. It comes with IP65 protection and weighs 25 kilograms.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112A-058-KP0-BN is a high-dynamics AC motor from Bosch Rexroth, and it is designed and intended for use with Rexroth digital drive controller series. The use cases of MKD motors stretch across a variety of fields and they belong to the DIAX04 category of controllers. The MKD112A-058-KP0-BN finds application in machine tools, robotics, web handling and packaging. In addition, this equipment offers cost-saving multi functionalities, low-maintenance, overtemperature monitoring and excellent operational reliability. The winding resistance and peak current rating of this synchronous MKD motor is 7.8 mH and 77 Amps respectively.
The electric connections on the MKD112A-058-KP0-BN are the plug-in connector type. This equipment has a winding designation of 058, and its frame size is 112. It has a maximum setup height of 1000m above NN and insulation class is F. This model features a maximum theoretical torque of 54 Nm and weighs 23 kg. The MKD112A-058-KP0-BN has four pole pairs and a characteristic speed rating of 4000 rpm. Also, it does not have a holding brake. It comes with a standardly designed shaft with superb running smoothness. In addition, the shaft of this MKD motor has a keyway, as per DIN 6885.
The MKD112A-058-KP0-BN leverages an integrated servo feedback system (IES) with a multiturn-absolute encoder that sends information regarding the position and/or speed of the motor to the corresponding drive controller. The feedback system has an absolute position input with over 4096 revolutions. Also, the electronic mechanism of the IEC has a data memory that holds the motor/control loop parameters, controls the motor/drive controller and enables easy and quick start-up. The power connection on the MKD112A-058-KP0-BN is to the B side. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
