MKD112A-024-KP1-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911288256
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

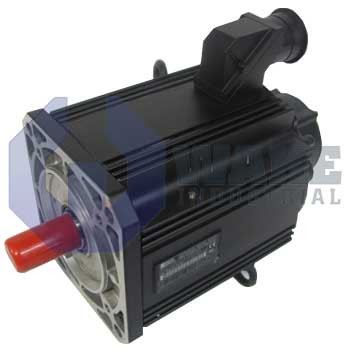

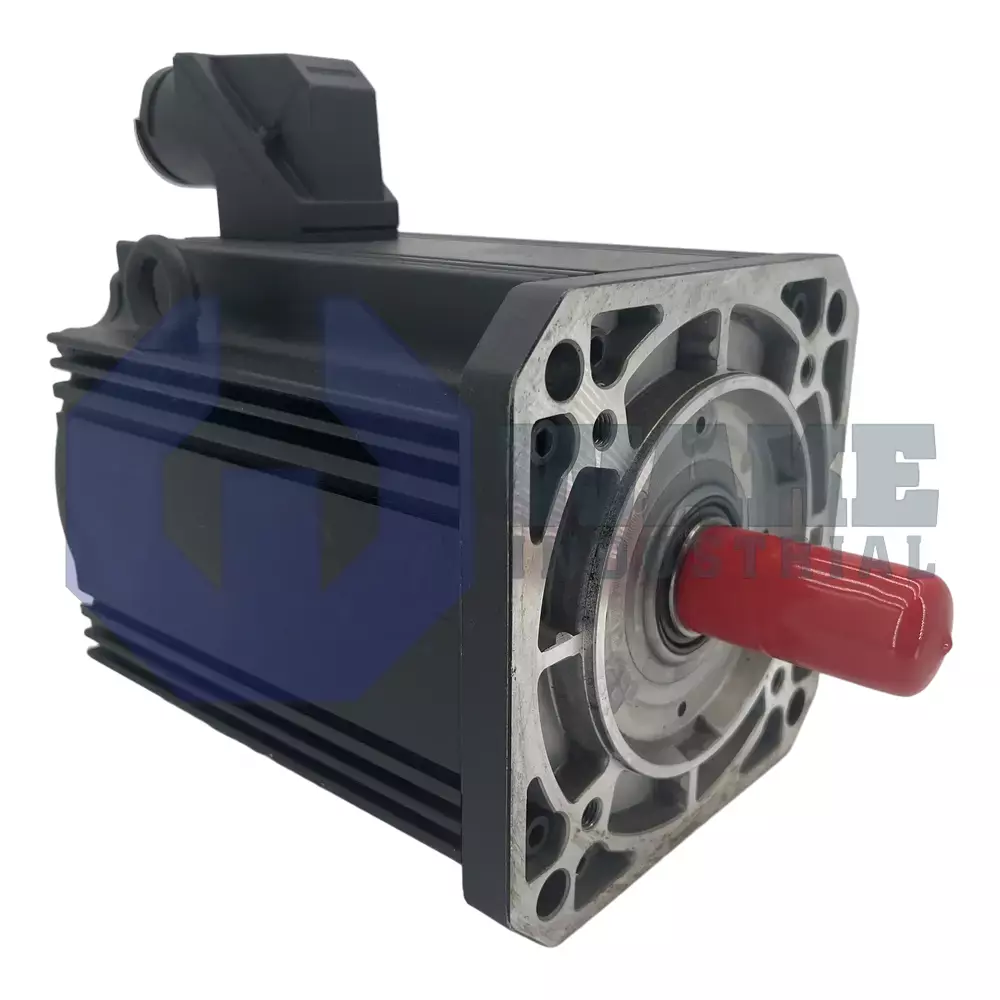

The Bosch Rexroth Indramat MKD112A-024-KP1-BN is a servo motor from the MKD Synchronous Motors series with a continuous torque at standstill of 15.0 Nm and a holding brake that provides 22 Nm of torque. This motor features a 192 mm flange, a 130 mm centering diameter, and resolver feedback with an integrated encoder for absolute position detection exceeding 4096 revolutions. It has a shaft with keyway and includes a shaft seal, with the connection output on Side B.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112A-024-KP1-BN is a servo motor produced by Bosch Rexroth Indramat within the MKD Synchronous Motors series. In industrial automation, the unit converts drive controller current into controlled mechanical torque for positioning tasks and speed-regulated rotary axes. Its 112-frame design provides a direct means of coupling to gearboxes, ball screws, or belt transmissions used in packaging systems, material-handling equipment, and machine tools.
A flange size of 192 mm mates the motor to standard IEC and proprietary housings, while the centering pilot measures 130 mm to maintain concentric alignment during installation. Electrical and feedback leads exit on Side B through an output connector, which simplifies cable routing where cabinet space is limited. The A-length housing provides enough thermal mass for a continuous standstill torque of 15.0 Nm, allowing the shaft to hold static loads without exceeding winding temperature limits. For power-off load retention, a spring-applied brake provides 22 Nm of static holding torque and releases when the brake coil is energized. The motor also uses a keyed shaft and an integral shaft seal to support secure coupling and to help keep coolant spray or lubricant away from the bearing cavity.
Feedback is generated by a resolver embedded in the stator and paired with an integrated electronic module that provides position data to the drive. The system reports absolute position over more than 4096 revolutions, which supports startup without a separate homing move in suitable control configurations. That resolver signal also supports field-oriented current control so the winding identified by code 024 receives phase current matched to the motor’s magnetic characteristics. A shaft with a keyway helps maintain positive mechanical locking under bidirectional load reversals. The shaft seal also helps protect the interior from low-pressure washdown spray and airborne particulates commonly present in automated production environments.
Frequently Asked Questions about MKD112A-024-KP1-BN:
Q: What type of encoder does the MKD112A-024-KP1-BN motor use for feedback?
A: The MKD112A-024-KP1-BN features resolver feedback with an integrated encoder for precise position detection.
Q: What is the continuous torque at standstill for the MKD112A-024-KP1-BN?
A: This motor provides a continuous torque at standstill of 15.0 Nm.
Q: Does the MKD112A-024-KP1-BN have a holding brake, and what is its torque?
A: The MKD112A-024-KP1-BN includes a holding brake with a torque capability of 22 Nm.
Q: What shaft configuration does the MKD112A-024-KP1-BN motor offer?
A: A keyway shaft design with seal is included on this model for secure power transmission and protection.
Q: Where is the electrical connection port located on the MKD112A-024-KP1-BN?
A: Electrical connections on the MKD112A-024-KP1-BN are made via an output connector located on Side B.
