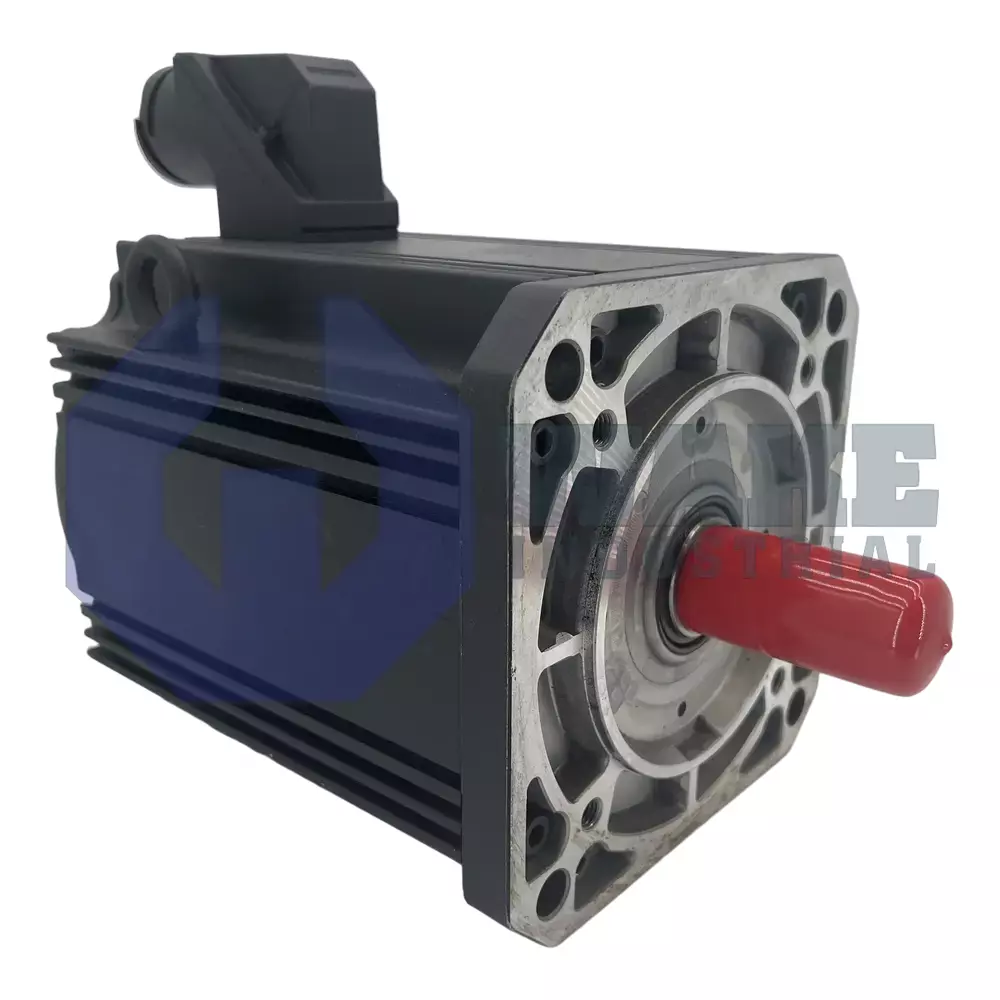

MKD112A-024-KG1-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911298845
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112A-024-KG1-BN is a servo motor from the MKD Synchronous Motors series with a flange size of 192 mm and a centering diameter of 130 mm. It features a plain shaft with shaft seal, resolver feedback with integrated encoder for absolute position detection, and has an IP65 protection category. The motor includes a holding brake with 22 Nm torque and provides 15.0 Nm continuous torque at standstill.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112A-024-KG1-BN servo motor is produced by Bosch Rexroth Indramat and belongs to the MKD Synchronous Motors series. It is intended for closed-loop industrial drives where consistent torque and speed are required for indexing tables, gantry axes, or general handling equipment. In these applications, the motor converts commanded current into controlled rotary motion so the axis can accelerate, hold speed, and settle accurately at target positions. Its design suits machines that run repeated motion cycles and need stable response under changing load conditions. That behavior is useful on axes that must start and stop frequently without losing repeatability.
Its mechanical interface uses a centering diameter of 130 mm and a square flange that measures 192 mm across, allowing direct mounting to standard machine frames without additional bushings. The flange layout also helps keep alignment consistent when the motor is mounted directly to a gearbox or machine plate. Power and feedback lines exit on Side B through a single output connector, which helps keep cable routing orderly in compact cabinets. The plain shaft is held axially by an internal clamp, and the windings use Class F insulation for 155 °C hot spot operation. During continuous stall, the rotor can deliver 15.0 Nm of torque, while an integrated holding brake supplies 22 Nm to secure loads when the drive is disabled. The housing is rated IP65, and a shaft seal helps keep dust or coolant away from the shaft journal.
Resolver feedback with an integrated encoder provides absolute position information spanning more than 4096 revolutions, allowing the control system to retain position data over many turns. This arrangement gives the drive continuous rotor angle information during motion and standstill. The control loop can be tuned to a system accuracy of ±8 angular minutes, which supports precise positioning during repeated moves. The permissible ambient range of 0–40 °C supports operation in typical factory conditions without special cooling hardware. The winding identified by code 024 matches the motor's electrical characteristics to compatible mid-voltage servo drives.
Frequently Asked Questions about MKD112A-024-KG1-BN:
Q: What is the continuous torque at standstill for the MKD112A-024-KG1-BN motor?
A: The MKD112A-024-KG1-BN motor provides a continuous torque of 15.0 Nm at standstill, making it suitable for demanding motion tasks.
Q: What type of encoder feedback is provided on the MKD112A-024-KG1-BN?
A: This motor features resolver feedback with an integrated encoder for precise position detection.
Q: How much holding brake torque does the MKD112A-024-KG1-BN servo motor supply?
A: The MKD112A-024-KG1-BN includes a holding brake with a torque rating of 22 Nm.
Q: What shaft design does the MKD112A-024-KG1-BN motor utilize?
A: A plain shaft design is used for the MKD112A-024-KG1-BN, offering smooth rotational output.
Q: What is the protection rating of the MKD112A-024-KG1-BN motor?
A: This motor offers protection category IP65, ensuring dust-tight and water-resistant operation.
