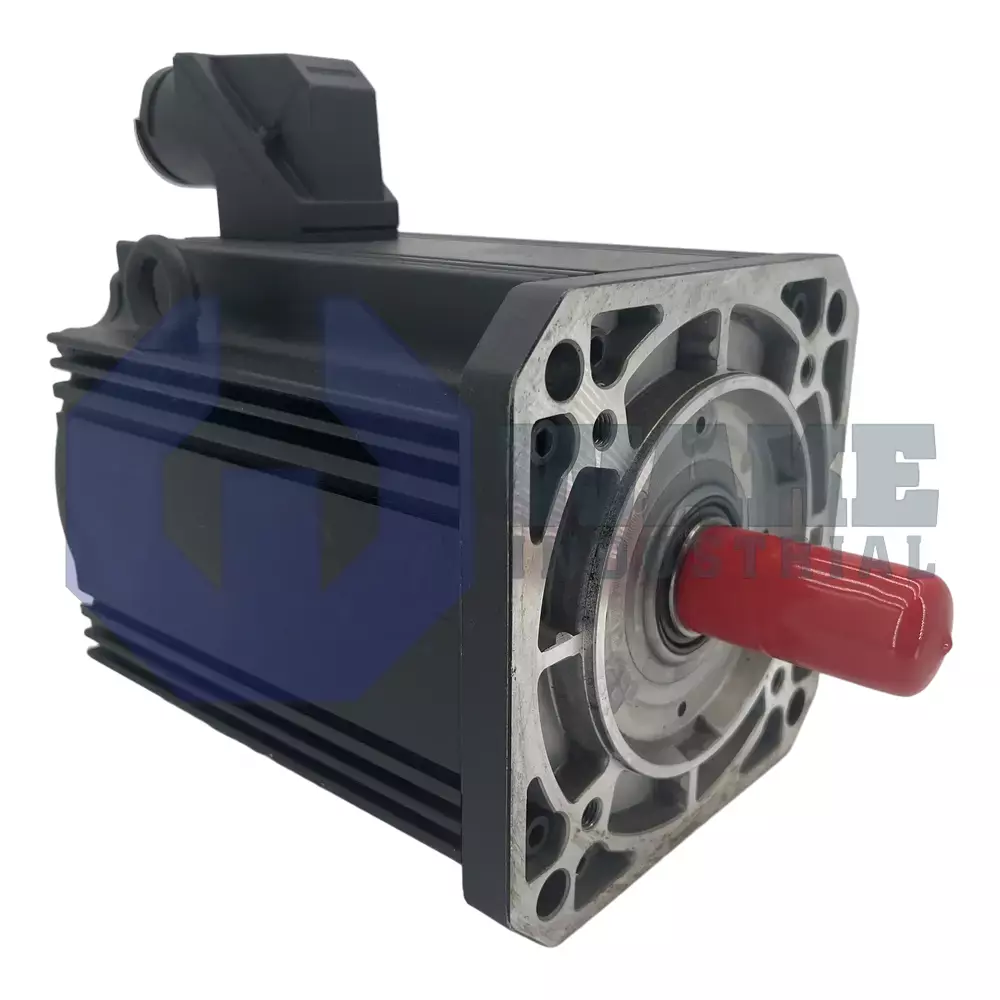

MKD112A-024-GP2-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911310806
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112A-024-GP2-BN is a servo motor from the MKD Synchronous Motors series with a flange size of 192 mm and a centering diameter of 130 mm. It features a shaft with keyway and shaft seal, and offers a continuous torque at standstill of 15.0 Nm. The motor includes resolver feedback for position detection, insulation class F, and has IP65 protection.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactures the MKD112A-024-GP2-BN, a servo motor in the MKD Synchronous Motors series. The unit converts controlled three-phase supply from a drive into mechanical rotation for positioning axes, conveyors, and handling modules within automated cells. This model combines a size 112 stator with length code A for medium-inertia loads that require repeatable speed and torque regulation. It is suited to machines that need stable motion control during indexing, transport, and positioning tasks.
At standstill it sustains a continuous torque of 15.0 Nm, permitting stable holding force without overheating during clamping or dwell phases. The square flange measures 192 mm, giving a mounting footprint compatible with planetary gearboxes and standard machine frames. Alignment against the driven load is set by a 130 mm centering diameter, which supports concentric mounting and helps reduce radial runout. The housing carries an IP65 rating, so internal windings are protected from dust and low-pressure water jets. The windings use class F insulation, allowing conductor temperatures up to 155 °C before thermal derating is required. The keyed shaft and the Side B connector support secure mechanical coupling and straightforward cable routing with compatible Indramat digital drives.
For integration, the motor length code A and size 112 keep overall mass manageable while still providing the needed inertia. Electrical power and feedback exit on Side B through an output connector, which helps keep cable routing organized inside the machine. Position data is supplied by resolver feedback (RSF), which supports relative position detection with a system accuracy of ±8 angular minutes when paired with a compatible controller. A fitted shaft seal protects the front bearing against coolant splash, and the keyed shaft supports positive locking to couplings. Continuous operation is specified for ambient conditions from 0–40 °C, which suits enclosed machine spaces common in packaging, printing, and assembly lines. Winding code 024 helps the drive use the correct commutation settings for this motor.
Frequently Asked Questions about MKD112A-024-GP2-BN:
Q: What is the continuous torque at standstill for the MKD112A-024-GP2-BN motor?
A: The MKD112A-024-GP2-BN provides a continuous torque of 15.0 Nm at standstill.
Q: What type of encoder does the MKD112A-024-GP2-BN motor use for position detection?
A: This model uses resolver feedback (RSF) for position detection, offering relative position feedback.
Q: What type of shaft design is featured on the MKD112A-024-GP2-BN motor?
A: The shaft on this motor is designed with a keyway and includes a shaft seal for enhanced reliability during operation.
Q: What protection rating does the MKD112A-024-GP2-BN motor offer?
A: The MKD112A-024-GP2-BN has an IP65 protection category, making it dust-tight and protected against water jets.
Q: What ambient temperature range is suitable for the MKD112A-024-GP2-BN motor?
A: The allowed ambient temperature for this motor ranges from 0 to 40°C.
