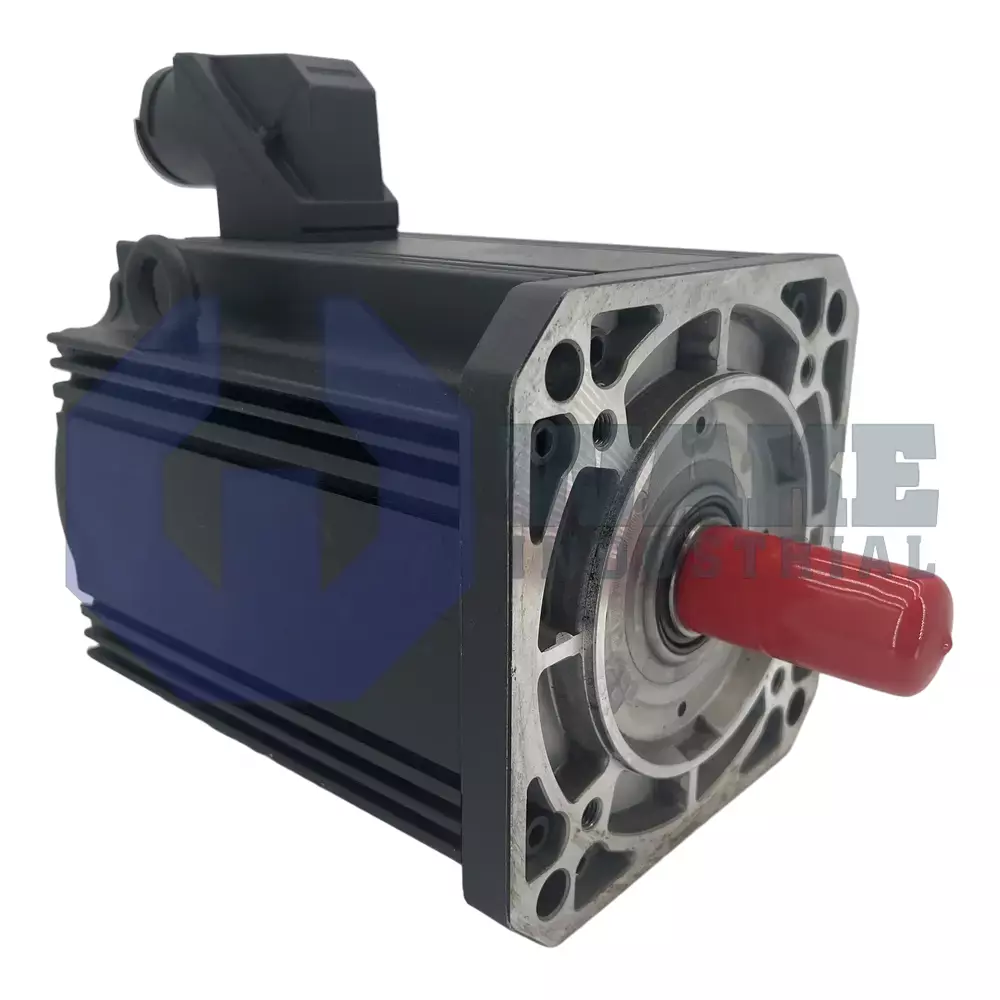

MKD112A-024-GP1-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911299988
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112A-024-GP1-BN is a servo motor from the MKD Synchronous Motors series with a continuous torque at standstill of 15.0 Newton-meters and a holding brake torque of 22 Newton-meters. It features an IP65 protection category, a flange size of 192 mm, and resolver feedback for position detection. The motor includes a shaft with keyway and operates within an ambient temperature range of 0 to 40 degrees Celsius.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112A-024-GP1-BN servo motor is produced by Bosch Rexroth Indramat within the MKD Synchronous Motors series. Designed for closed-loop motion axes in industrial automation, this permanent-magnet unit converts drive commands into precise rotary movement for positioning tables, packaging machinery, and material-handling gantries. It works with compatible digital drive controllers to provide the torque, speed, and feedback needed for repeatable motion during frequent starts, stops, and speed changes. This makes the motor suitable for machines that need steady positioning performance under varying load conditions.
A centering pilot of 130 mm aligns the housing, while the square flange spans 192 mm to fit standardized machine frames. Power and feedback leads exit on side B through an output connector, which helps keep cable routing clear of moving machine elements. The shaft is supplied with a keyway and a shaft seal, so torque can be transferred through a keyed coupling while splash-borne contaminants are kept away from the bearing area. Continuous stall torque of 15.0 Nm is available without forced cooling, allowing the motor to hold or index loads during extended low-speed operation. Thermal endurance is supported by insulation class F, which allows higher winding temperature tolerance during continuous use. The enclosure carries an IP65 rating to protect the motor against dust ingress and low-pressure water jets in industrial environments.
Dynamic safety is provided by an integral holding brake that clamps the rotor with 22 Nm of torque when power is removed. Position signals are generated by resolver feedback, and because the transducer is relative, the axis must complete a homing routine at startup to establish its reference position. Under closed-loop control, the system can repeat angles within ±8 angular minutes, which is suitable for general automation tasks that require consistent positioning. Copper loss and bearing grease are rated for ambient conditions of 0–40 °C, supporting normal operation within that temperature range. The three-phase stator uses winding code 024, which sets the electrical characteristics expected by compatible Rexroth drives.
Frequently Asked Questions about MKD112A-024-GP1-BN:
Q: What is the continuous standstill torque of the MKD112A-024-GP1-BN motor?
A: The MKD112A-024-GP1-BN offers a continuous torque at standstill of 15.0 Nm.
Q: What type of encoder feedback does the MKD112A-024-GP1-BN provide?
A: This motor is equipped with resolver feedback (RSF) for relative position detection.
Q: What type of shaft is included on the MKD112A-024-GP1-BN servo motor?
A: The shaft design on this model features a keyway and includes a shaft seal.
Q: Does the MKD112A-024-GP1-BN include a holding brake, and what is its torque?
A: A holding brake with a torque of 22 Nm is included in this model.
Q: What is the protection category for the MKD112A-024-GP1-BN servo motor?
A: The MKD112A-024-GP1-BN has IP65 protection, guarding against dust and water ingress.
