MKD112A-024-GP1-AN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911294395
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

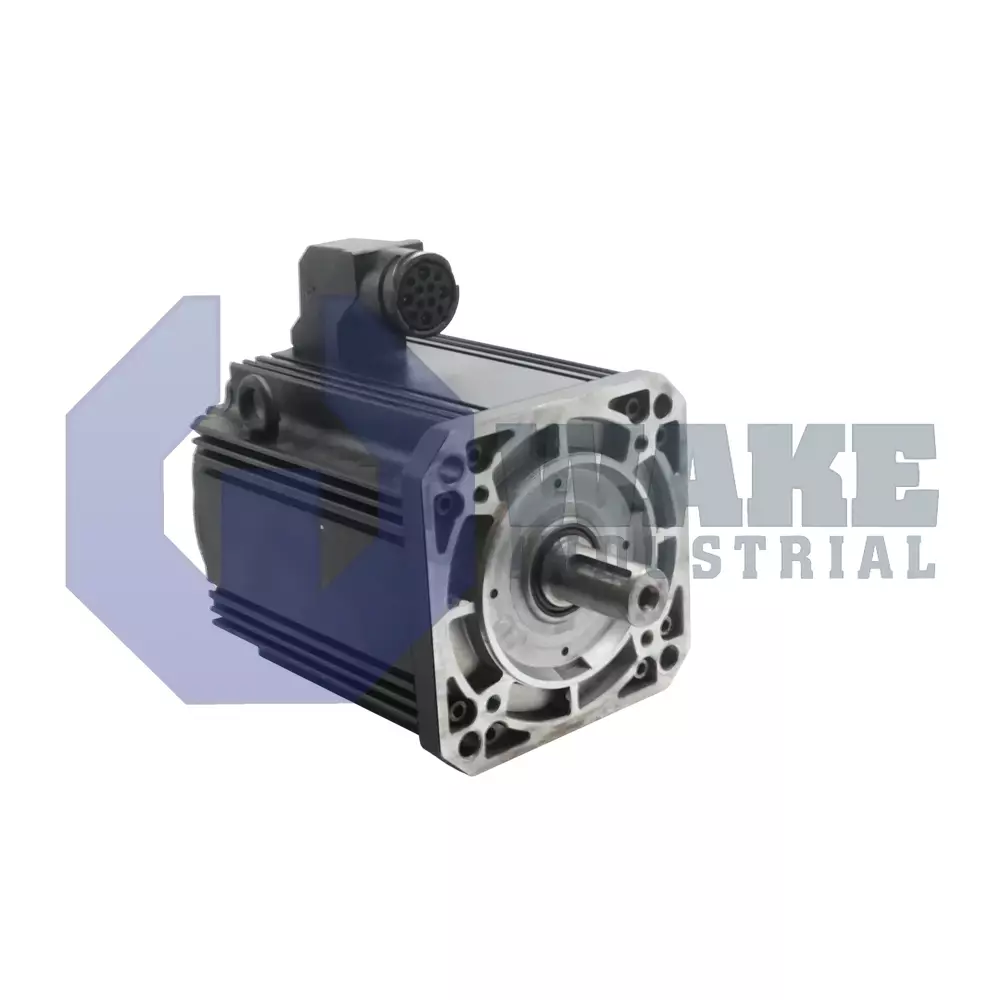

The Bosch Rexroth Indramat MKD112A-024-GP1-AN is a servo motor from the MKD Synchronous Motors series and features a flange size of 192 mm with a centering diameter of 130 mm. It delivers a continuous torque at standstill of 15 Nm and is equipped with a resolver feedback encoder and an IP65 protection rating. The motor includes a holding brake with 22 Nm torque and a keyway shaft design.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112A-024-GP1-AN servo motor is built by Bosch Rexroth Indramat within the MKD Synchronous Motors series. In industrial automation, this unit converts electrical power into controllable mechanical motion for indexing tables, material-handling axes, and other dynamic processes. Its design supports feedback-driven speed regulation and precise positioning when paired with a compatible drive controller, making it a core actuator for multi-axis machines that demand consistent cycle times. The motor is suited to applications that require repeatable acceleration, controlled stopping, and stable motion over long operating periods.
At standstill, the motor can deliver 15.0 Nm of continuous torque, supporting static loads without thermal overload. Mechanical integration is handled through a 192 mm square flange with a 130 mm centering diameter that aligns quickly against machine interfaces and gearboxes. Power and feedback exit the housing on side A through an output connector, which helps simplify cable routing in compact enclosures. The embedded resolver feedback (RSF) supplies rotor angle data to the drive for commutation and speed control. The motor has frame size 112 with housing length A, and it uses winding code 024. A dedicated shaft seal works with the IP65 enclosure rating to help keep dust and washdown spray away from internal components.
An integral holding brake applies 22 Nm of brake torque to lock the shaft when supply power is removed. This retained force, together with the feedback system, helps keep motion errors within ±8 angular minutes after restart. Safe operation is specified for environments between 0–40 °C, and Class F insulation gives the winding system added thermal margin during changing load conditions. A shaft with keyway provides positive torque transfer to couplings, which is useful where slip cannot be tolerated. The brake also helps restrain vertically loaded axes during stops and power-loss events.
Frequently Asked Questions about MKD112A-024-GP1-AN:
Q: What is the continuous torque output of the MKD112A-024-GP1-AN servo motor at standstill?
A: The MKD112A-024-GP1-AN motor provides a continuous torque of 15.0 Nm at standstill.
Q: What type of encoder is used on the MKD112A-024-GP1-AN servo motor?
A: This servo motor uses resolver feedback (RSF) for position detection, which allows for relative position sensing.
Q: Does the MKD112A-024-GP1-AN motor include a holding brake, and what is its torque?
A: The MKD112A-024-GP1-AN comes equipped with a holding brake that provides 22 Nm of braking torque.
Q: What protection category does the MKD112A-024-GP1-AN servo motor have?
A: The MKD112A-024-GP1-AN offers IP65 protection, making it dust tight and protected against water jets.
Q: What shaft design does the MKD112A-024-GP1-AN servo motor use?
A: This model features a shaft with keyway and is fitted with a shaft seal for added protection against contaminants.
