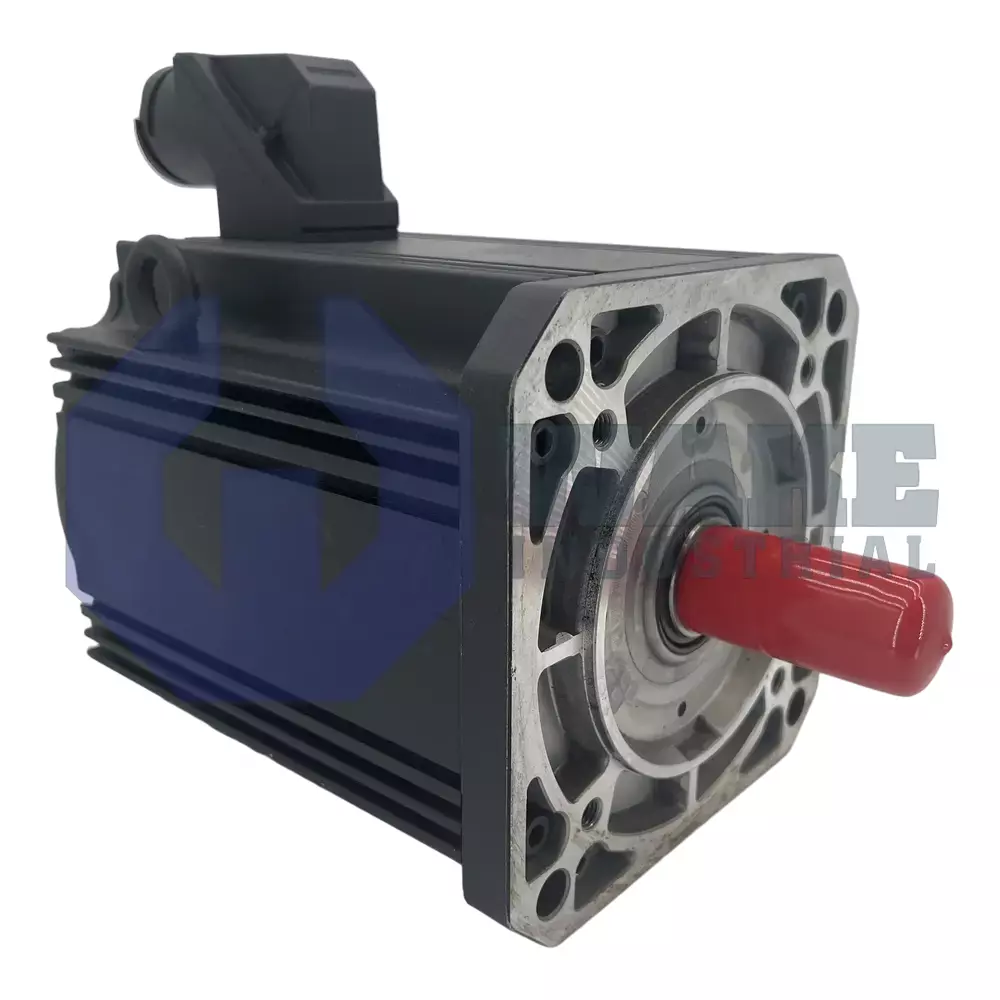

MKD112A-024-GG1-BN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911293381
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD112A-024-GG1-BN is a servo motor from the MKD Synchronous Motors series with a continuous torque at standstill of 15.0 Nm and a holding brake torque of 22 Nm. It features a 192 mm flange size, resolver feedback, and is rated with IP65 protection. The motor operates in ambient temperatures from 0 to 40°C and uses insulation class F.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD112A-024-GG1-BN is a servo motor built by Bosch Rexroth Indramat for the MKD Synchronous Motors series. Serving as a drive element in CNC machines, packaging stations, and handling axes, it converts electrical power into regulated rotary motion so automation controllers can execute precise speed and position commands. Its synchronous design supports stable response during repeated acceleration and deceleration. This makes the motor suitable for axes that must start, stop, and reverse direction without losing control quality. Because feedback is processed by the control system, the motor can be used in applications that require coordinated motion with conveyors, indexing tables, or transfer mechanisms.
It delivers a continuous standstill torque of 15.0 Nm, allowing machinery to support load without auxiliary gearing. The square mounting flange measures 192 mm, and a centering diameter of 130 mm locates the housing concentrically on the mating surface for accurate installation. Stator windings use code 024, and class F insulation allows winding temperatures up to 155 °C before derating. The motor operates in ambient temperatures from 0 to 40 °C, and resolver feedback provides shaft angle information after each power-up. Terminations leave through the connector on side B, while the compact A-length housing helps conserve installation space. The flange and centering dimensions also help maintain alignment with couplings and driven loads over long operating cycles.
Dynamic holding is supplied by an internal brake with 22 Nm of static torque when power is off. The enclosure has an IP65 rating, which helps protect the windings, bearings, and resolver from dust and water jets in exposed machine areas. Positioning accuracy is limited to ±8 angular minutes, which supports tight electronic gearing across multiple axes. The plain shaft includes an integral seal, so the motor can connect directly to gearboxes or pulleys while helping keep contaminants away from internal components. This combination of brake, sealing, and enclosure protection supports installation close to the machine in demanding automated environments.
Frequently Asked Questions about MKD112A-024-GG1-BN:
Q: What kind of encoder is used in the MKD112A-024-GG1-BN motor?
A: This motor features a resolver feedback (RSF) encoder, enabling relative position detection for motion control applications.
Q: What is the continuous torque at standstill for the MKD112A-024-GG1-BN?
A: The MKD112A-024-GG1-BN has a continuous standstill torque rating of 15.0 Nm.
Q: Does the MKD112A-024-GG1-BN have a holding brake and what is its torque?
A: A holding brake with a torque of 22 Nm is included on this model.
Q: What is the protection rating of the MKD112A-024-GG1-BN?
A: The protection category for this motor is IP65, offering complete protection against dust ingress and low pressure water jets.
Q: Where is the electrical connection located on the MKD112A-024-GG1-BN and what type is used?
A: The connection direction for this model is located at Side B, using an output connector.
