Product Description:

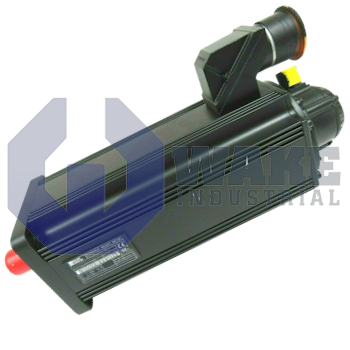

The MKD093B-035-PG0-BA is a servo motor built by Bosch Rexroth Indramat for the MKD Synchronous Motors series. It functions as the electromechanical link between a digital drive controller and the load, providing closed-loop torque and speed control for positioning tables, pick-and-place heads, and other motion axes in automated machinery. Its synchronous design allows the connected drive to regulate rotor motion precisely during acceleration, steady running, and deceleration. Because the control loop is closed through the drive, the motor can support repeatable speed changes and accurate stopping on indexing and transfer axes.

Electrical and mechanical connections exit on Side B, a layout that keeps power and feedback leads away from gearboxes or machine walls mounted on the opposite face. The motor uses an output connector rather than fixed terminals, which keeps cable attachment straightforward and enclosed. This arrangement also reduces exposed wiring at the housing. A plain shaft is supplied, so couplings or pulleys must be clamped instead of keyed, which can simplify alignment in high-speed applications. There is a shaft seal that blocks lubricant migration and airborne contaminants along the journal interface. Winding code 035 indicates the coil impedance and thermal behavior used by the matching drive for current and speed regulation.

The unit is delivered without a holding brake, so static load retention must be handled by the drive or by external mechanics when power is removed. Housing code B corresponds to the second-longest stator stack in this frame size, which increases continuous torque while keeping rotor inertia moderate. Position signals are handled through resolver feedback on the same side-exit connection set, allowing the controller to monitor rotor angle continuously during operation. This layout fits enclosed equipment where cable space is limited and the motor must sit close to adjacent mechanical parts.
