MKD090B-047-GP1-KN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911263089
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

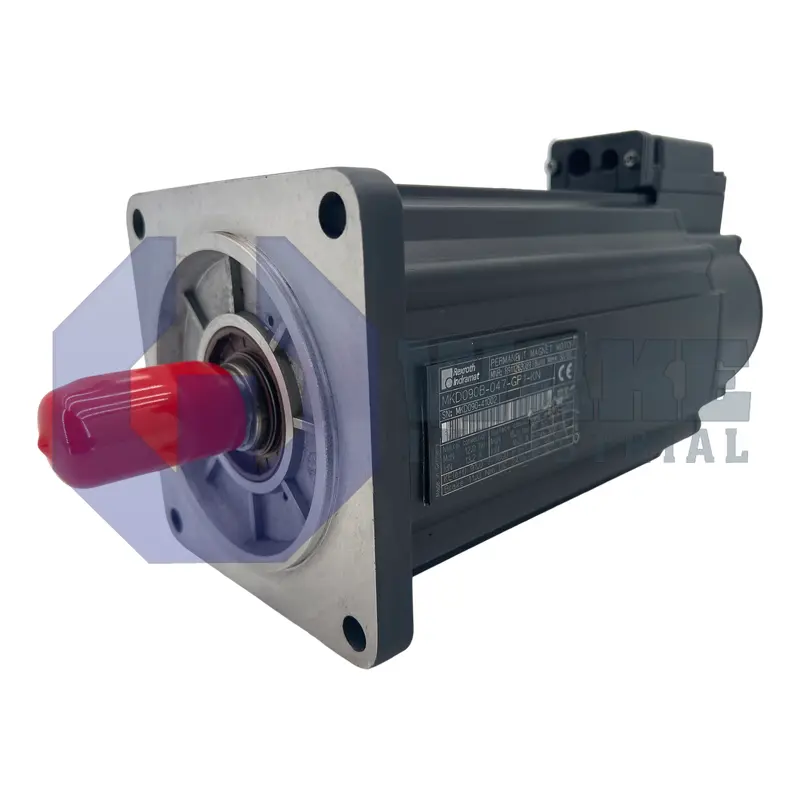

The Bosch Rexroth Indramat MKD090B-047-GP1-KN is a servo motor from the MKD Synchronous Motors series with a 140 mm flange size and 110 mm centering diameter. It provides a continuous torque at standstill of 12.0 Nm, utilizes resolver feedback for position detection, and includes a holding brake with 11 Nm torque. The motor features a shaft with keyway and a connection box oriented to Side B.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD090B-047-GP1-KN is a servo motor manufactured by Bosch Rexroth Indramat and assigned to the MKD Synchronous Motors series. Within automated machinery it converts drive current into regulated rotary motion so axes can be positioned with tight velocity and torque control. The motor’s dimensional code 090 and length class B place it in the medium power segment favored in packaging lines, material-handling stations, and light machining centers.
Its mechanical interface is defined by a 140 mm flange size and a 110 mm centering diameter, giving a rigid mounting surface while ensuring coaxial alignment with gearboxes or belt pulleys. A keyed steel shaft—listed as Shaft with keyway—transmits the rated torque, which reaches 12.0 Nm continuous at standstill without excessive heating when the Resolver feedback (RSF) maintains rotor position. The resolver supplies incremental and absolute angle data, so the drive can apply field-oriented current even during acceleration. Position detection is relative, matching applications where homing routines are executed at start-up. Thermal behavior and impedance are tied to winding code 047, and the unit’s sealed front bearing includes a shaft seal to limit lubricant escape and particle ingress. The motor ships with a holding brake that engages whenever power is removed.
Electrical terminations exit on the Side B connections, and a compact connection box termination houses both power and sensor leads to simplify cabinet wiring. Inside the stator, the 047 winding code balances resistance with inductance so the drive can supply peak current without overshoot. A permanent-magnet brake is fitted; its 11 Nm holding brake torque prevents back-driving during power loss and allows maintenance positioning. Together, motor size 090, length class B, and the integrated shaft seal complete a package that fits through the 140 mm square mounting face while still providing resolver-based relative position reporting and 12.0 Nm of continuous torque.
Frequently Asked Questions about MKD090B-047-GP1-KN:
Q: What type of position feedback is provided by the MKD090B-047-GP1-KN motor?
A: This motor is equipped with resolver feedback (RSF) for position detection, which provides relative position information.
Q: What is the continuous torque rating at standstill for this motor?
A: The MKD090B-047-GP1-KN delivers a continuous torque of 12.0 Nm at standstill.
Q: Does the MKD090B-047-GP1-KN include a holding brake, and what is its torque?
A: This model comes with a holding brake that provides 11 Nm of torque.
Q: What is the flange size on the MKD090B-047-GP1-KN servo motor?
A: The motor has a flange size of 140 mm for its mounting interface.
Q: Where is the electrical connection made on the MKD090B-047-GP1-KN, and what type is it?
A: Connection is made via a connection box located on Side B of the motor.
