MKD090B-047-GP0-KN-SA001 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R985000502
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

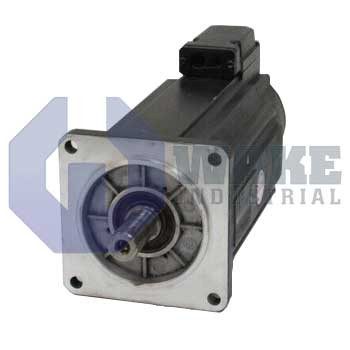

The Bosch Rexroth Indramat MKD090B-047-GP0-KN-SA001 is a servo motor from the MKD Synchronous Motors series with a flange size of 140 mm and a centering diameter of 110 mm. It features a continuous torque at standstill of 12.0 Nm, resolver feedback encoder, and a shaft with keyway and seal. The motor is connected via a connection box on Side B and does not include a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD090B-047-GP0-KN-SA001 is a servo motor from Bosch Rexroth Indramat in the MKD Synchronous Motors series. As a rotary actuator, it pairs with digital drive controllers to provide closed-loop positioning and speed control on assembly lines, pick-and-place modules, transfer systems, and similar motion stations. When matched to a suitable controller, it converts commanded current into controlled rotary motion for repeatable axis response during starts, stops, and speed changes. Its compact frame makes it a practical fit for integrated multi-axis platforms used in general automation.
The motor mounts to the machine frame through a 140 mm square flange, while a 110 mm centering diameter aligns the stator with the gearbox or load adapter and helps reduce radial runout during coupling. At standstill, the electromagnetic design produces 12.0 Nm continuous standstill torque, allowing the shaft to support inertia and process forces without overheating during continuous holding duty. Rotor position is detected by resolver feedback, which provides analog sine-cosine signals for real-time commutation and avoids incremental count loss during power cycles or electrical interruptions. Power, signal, and protective-earth conductors are routed through a connection box on Side B of the stator, which helps suit compact cabinet layouts and organized cable routing. The B length code balances thermal mass with overall motor depth for mid-range dynamic loads.
Because the unit is supplied without a holding brake, position must be maintained by external locking or drive torque when power is removed. Output torque is transferred through a shaft with keyway, which helps prevent slippage under reversing load peaks and repeated acceleration changes. Contamination ingress is limited by the integrated shaft seal, helping the bearing set stay lubricated in dusty environments and around machine debris. Electrical characteristics follow the 047 winding, which matches the phase resistance and inductance expected by compatible Indramat drive modules for stable current control.
Frequently Asked Questions about MKD090B-047-GP0-KN-SA001:
Q: What type of encoder does the MKD090B-047-GP0-KN-SA001 motor use?
A: This model features a resolver feedback (RSF) encoder for position detection.
Q: Where is the electrical connection located on the MKD090B-047-GP0-KN-SA001 motor?
A: The MKD090B-047-GP0-KN-SA001 has a connection box oriented on Side B.
Q: Does the MKD090B-047-GP0-KN-SA001 include a holding brake?
A: The MKD090B-047-GP0-KN-SA001 is manufactured without a holding brake.
Q: What is the continuous torque at standstill for the MKD090B-047-GP0-KN-SA001 motor?
A: This model delivers a continuous standstill torque of 12.0 Nm.
Q: What is the shaft design of the MKD090B-047-GP0-KN-SA001 motor?
A: The shaft design on this motor includes a keyway and is equipped with a shaft seal.
