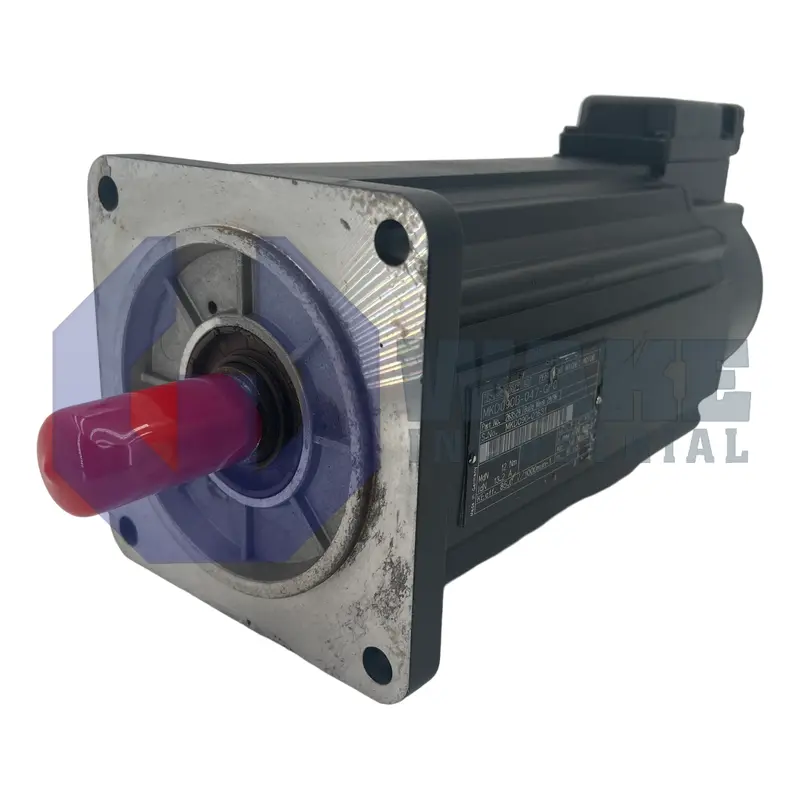

MKD090B-047-GP0-KN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911263529
The Bosch Rexroth Indramat MKD090B-047-GP0-KN is a servo motor from the MKD Synchronous Motors series. It delivers 12.0 Nm of continuous torque at standstill and features resolver feedback for position detection. The motor has a 140 mm flange size, a shaft with keyway, and uses a connection box on Side B.
Internal Product Review
The MKD090B-047-GP0-KN from the MKD Synchronous Motors series is a high-performance servo motor featuring a continuous torque at standstill of 12.0 Nm and a shaft with keyway for secure load coupling. Equipped with resolver feedback (RSF) for reliable relative position detection, this motor integrates easily into automation systems. This model is a strong choice for applications requiring precise motion control and dependable feedback.
Have a part to sell?
Wake Industrial Warranty
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD090B-047-GP0-KN is a three-phase servo motor built by Bosch Rexroth Indramat for the MKD Synchronous Motors series. It functions as the rotary actuator in closed-loop drive systems, receiving current from an Indramat drive controller and delivering constant torque to automated machinery such as gantry axes, packaging stations, and handling modules.
This model has a centering diameter of 110 mm, allowing precise alignment against the mating pilot on a 140 mm square mounting interface. Under continuous stall conditions, it can hold 12.0 Nm of torque without overheating, so static loads remain stable during dwell periods. Rotor position is reported through resolver feedback (RSF), giving analog sine-cosine signals for fine commutation even during rapid speed reversals. Power and feedback conductors exit on the rear housing face designated as Side B, simplifying cable routing in cabinets where the front face is embedded. A square flange measuring 140 mm on each side mates to ISO motor adapters and keeps the shaft axis concentric with geared reducers or timing pulleys.
Terminals are grouped inside a sealed connection box, so field wiring can be completed without opening the stator frame. The output end uses a shaft with a keyway, enabling positive mechanical locking to couplings that transfer intermittent or bidirectional torque peaks. A shaft seal is fitted to block coolant spray and airborne dust from entering the bearing set. Relative commutation is supported because the feedback system provides relative position data referenced from an index on power-up. The windings use code 047, matching the electrical resistance and inductance expected by MKD drives for this 090 frame. Length code B keeps the active stack short.
