MKD090B-047-GG1-KN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911263067
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

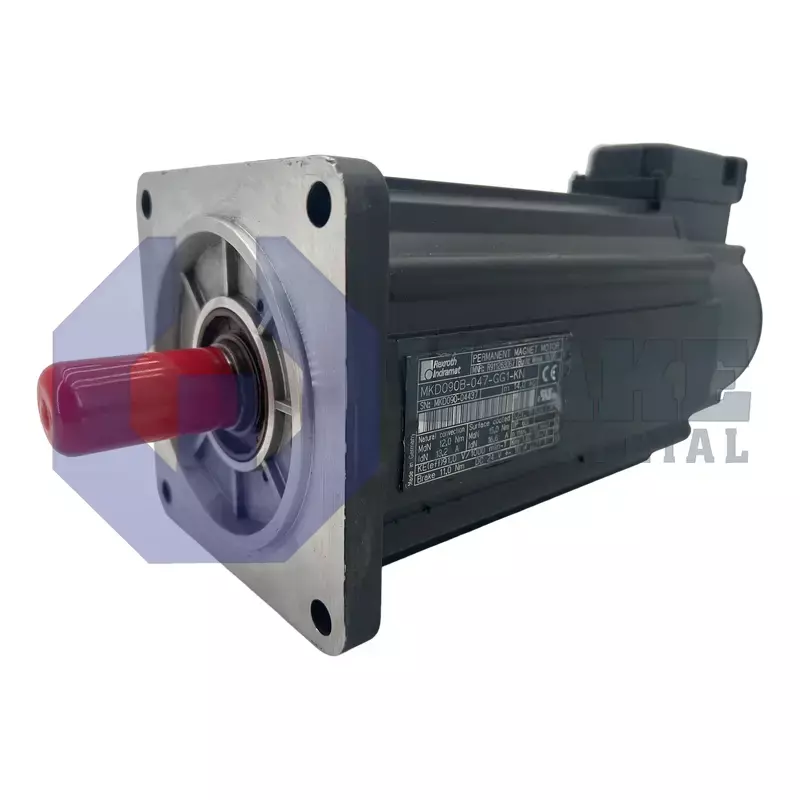

The Bosch Rexroth Indramat MKD090B-047-GG1-KN is a servo motor from the MKD Synchronous Motors series and includes a plain shaft with a shaft seal. This motor offers a continuous torque at standstill of 12.0 Nm and features resolver feedback for position detection. It has a flange size of 140 mm, a centering diameter of 110 mm, and a holding brake torque of 11 Nm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD090B-047-GG1-KN is a servo motor produced by Bosch Rexroth Indramat within the MKD Synchronous Motors series. In automated machinery it supplies controlled rotary motion to axes that demand repeatable speed and position profiles, and its resolver feedback works with drive electronics to close the velocity and position loops.
This model delivers a continuous standstill torque of 12.0 Nm, allowing it to hold load without overheating when stalled under rated current. For short-term stops during power loss, the integrated brake applies 11 Nm of resisting torque, so vertical or rotary tables stay in place until power returns. The square mounting interface is defined by a 140 mm flange, while concentric alignment is maintained by the 110 mm centering diameter; together they match common gearbox and machine frames. Motion feedback is provided by a Resolver (RSF), a passive sensor that survives high temperature and vibration, and drives interpret its analog signals at high resolution to maintain commutation accuracy.
Mechanical layout details support installation flexibility. Cables leave the housing on Side B, and the conductors terminate inside a sealed connection box that simplifies field wiring and shields the resolver leads from electrical noise. The laminated stator stack follows Winding Code 047, establishing the voltage constant and thermal behavior expected by compatible drive controllers. Frame designation 090 indicates the stator outer diameter, and the “B” motor length provides a mid-range inertia for applications that cycle frequently without overshooting. There is a shaft seal that blocks coolant or lubricant from entering the bearing cavity, and the plain shaft design accepts backlash-free clamp couplings. Relative position detection, rather than absolute, keeps cost down while still giving the controller an accurate incremental reference once homing is performed.
Frequently Asked Questions about MKD090B-047-GG1-KN:
Q: What type of encoder is used in the MKD090B-047-GG1-KN motor?
A: The MKD090B-047-GG1-KN is equipped with resolver feedback (RSF) for position detection.
Q: What is the continuous torque at standstill for the MKD090B-047-GG1-KN servo motor?
A: This model provides a continuous torque of 12.0 Nm at standstill.
Q: What is the shaft design and sealing for the MKD090B-047-GG1-KN motor?
A: The MKD090B-047-GG1-KN has a shaft designed as a plain shaft and includes a shaft seal.
Q: Where is the connection direction for wiring on the MKD090B-047-GG1-KN?
A: The connection box of this motor is mounted on Side B for convenient wiring access.
Q: What is the holding brake torque available on the MKD090B-047-GG1-KN motor?
A: This motor features a holding brake torque of 11 Nm for reliable stopping power.
