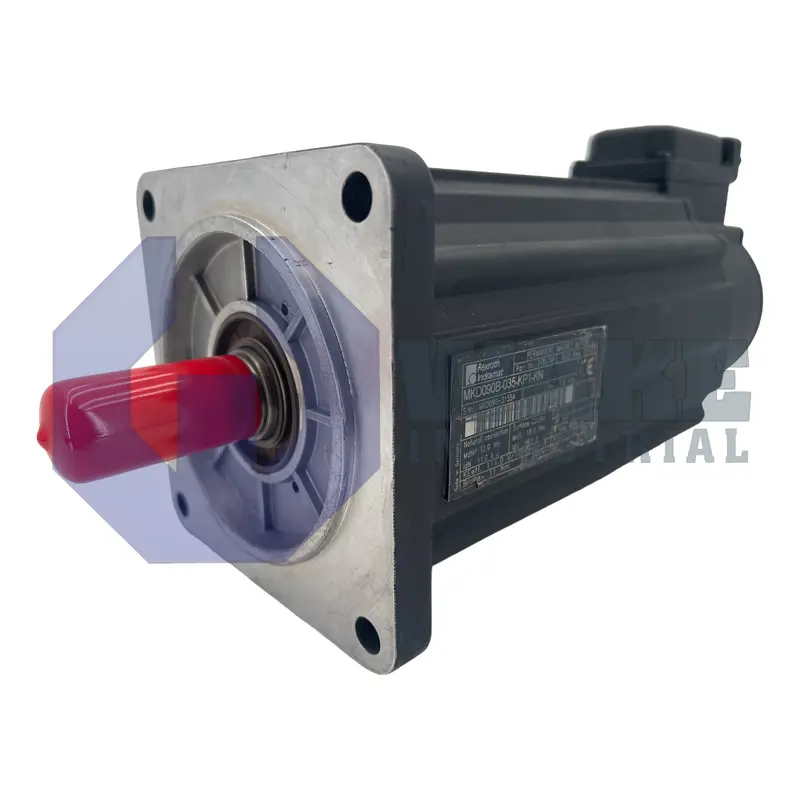

MKD090B-035-KP1-KN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911278174
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD090B-035-KP1-KN is a servo motor from the MKD Synchronous Motors series with a flange size of 140 mm and a centering diameter of 110 mm. It features resolver feedback with an integrated encoder for absolute position detection over 4096 revolutions and includes a holding brake with 11 Nm torque. The motor has a shaft with keyway, a connection box on Side B, and delivers 12 Nm of continuous torque at standstill.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD090B-035-KP1-KN synchronous servo motor is manufactured by Bosch Rexroth Indramat as part of the MKD Synchronous Motors series. Within an automation cell, it couples to a drive controller to deliver programmable speed, position, and torque, supplying the mechanical output required to index conveyors, rotate tooling, or coordinate multi-axis assemblies. Its electromagnetic design allows rapid acceleration while maintaining precise feedback, making it a typical choice for applications that require coordinated motion profiles and high repeatability. It is well suited to equipment that runs repeated motion cycles and depends on stable closed-loop response throughout normal operation.
The motor generates a continuous standstill torque of 12.0 Nm, giving it sufficient holding capability for loads that must remain stationary without overheating. A centering pilot of 110 mm aligns the housing concentrically with the machine frame, and the square flange measures 140 mm across for ISO-standard mounting patterns. Electrical power and resolver cabling leave the unit at the rear because the connections are oriented toward Side B and terminate in a rugged connection box that protects the terminals against vibration and contamination. These dimensions support consistent installation and predictable heat flow from the stator to the mounting surface. The rear-facing cable arrangement can also help keep wiring clear of couplings, rotating parts, and surrounding machine hardware.
The integral brake supplies 11 Nm of static torque to hold vertical axes when power is removed, and a shaft seal helps prevent coolant mist from entering during washdown cycles. Rotor position is measured by resolver feedback, and the feedback system supports Absolute (>4096 revs) position tracking so the drive retains position after power cycling. Magnetic characteristics follow winding code 035, matching the motor to the appropriate current and voltage range used by compatible drive systems. A keyed shaft transmits torque positively, and the motor uses size 090 with length code B for a balanced combination of inertia and torque density in mid-range applications. This arrangement supports axes that must move accurately during production and remain secure between motion cycles.
Frequently Asked Questions about MKD090B-035-KP1-KN:
Q: What type of encoder is used in the MKD090B-035-KP1-KN servo motor?
A: This motor is equipped with resolver feedback and an integrated encoder for precise position detection.
Q: What is the holding brake torque for the MKD090B-035-KP1-KN motor?
A: The holding brake supplies a maximum torque of 11 Nm to help secure loads when the motor is powered off.
Q: How much continuous torque does the MKD090B-035-KP1-KN deliver at standstill?
A: The continuous torque at standstill for this model is rated at 12.0 Nm.
Q: What is the shaft design of the MKD090B-035-KP1-KN servo motor?
A: A keyway shaft design is present, providing reliable mechanical coupling for mounted components.
Q: How is the electrical connection implemented on the MKD090B-035-KP1-KN?
A: The connection type for this servo motor utilizes a connection box located on side B.
