MKD041B-144-GP0-KN
MPN: R911261680
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

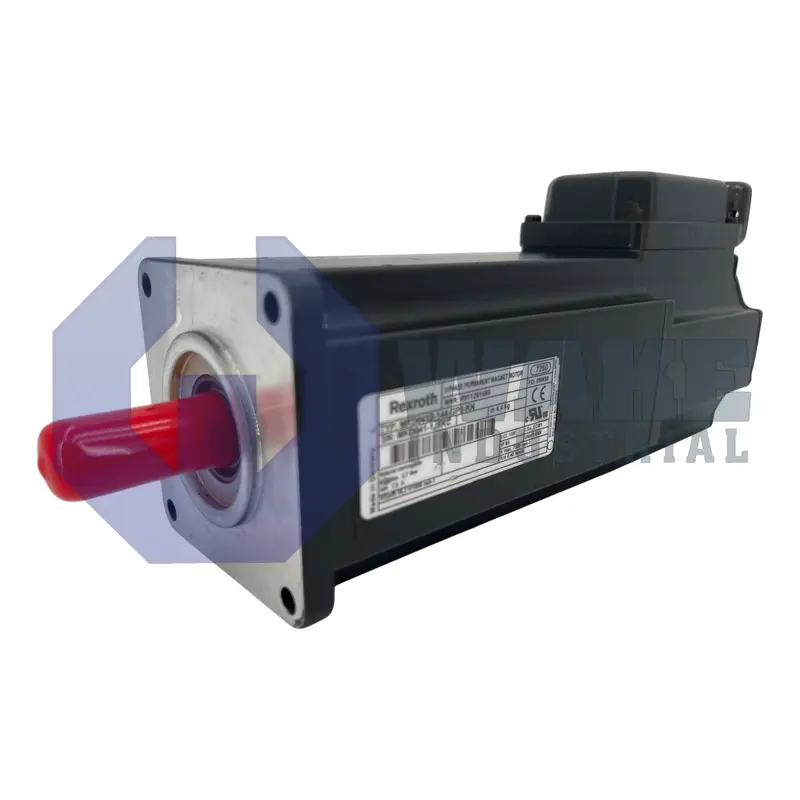

The synchronous motor MKD041B-144-GP0-KN offers a characteristic speed of 6000 rpm and continuous torque of 2.9 Nm. It operates at 115 V and is designed with a winding inductance of 5 mH.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
This synchronous motor MKD041B-144-GP0-KN is mechanically designed with rotor inertia of 1.7 x 10^-4 kgm^2 and can withstand a maximum torque of 11.3 Nm. It has a permissible ambient temperature range of 0 to 40 degrees C and a storage and transport temperature range of - 20 to + 80 degrees C. The protection category is IP65 that makes it suitable for demanding environments. It also supports a maximum speed of 7500 rpm and can be installed at heights up to 1000 meters above sea level. Its insulation class is F and it comes with a black prime coat according to RAL 9005.
The MKD041B-144-GP0-KN synchronous motor is equipped with a resolver encoder and an output shaft that has keyways. The holding brake is not available in this model. It operates with a winding inductance of 5 mH and a winding resistance of 1.8 Ohm at 20 degrees C. The motor has a characteristic speed of 6000 rpm and a continuous standstill torque of 2.7 Nm for natural cooling at 60 K and 2.9 Nm for 100 K. It can handle a peak current of 34 A and has a continuous current at a standstill of 7.5 A at 60 K and 8.2 A at 100 K. Its voltage constant at 20 degrees C is 36.3 V/1000rpm while the torque constant is 0.4 Nm/A.
The rated data includes a speed of 3000 rpm at 60 K and 4500 rpm at 100 K with rated torque values of 1.4 Nm and 1.5 Nm respectively. The motor has a rated power of 0.52 kW at 60 K and 0.88 kW at 100 K with a rated voltage of 115 V and 170 V. The rated frequency is 150 Hz at 60 K and 225 Hz at 100 K.
Frequently Asked Questions about MKD041B-144-GP0-KN:
Q: What is the rotor inertia of the MKD041B-144-GP0-KN synchronous motor?
A: The rotor inertia of this motor is 1.7 x 10^-4 kgm^2. This ensures precise mechanical performance during high-speed operations, making it suitable for demanding applications requiring consistent torque delivery.
Q: What is the protection category for the MKD041B-144-GP0-KN motor?
A: The motor has an IP65 protection rating. This makes it resistant to dust and water, ensuring reliable operation in harsh and demanding environments, even at installation heights up to 1000 meters.
Q: What is the operating temperature range for the MKD041B-144-GP0-KN motor?
A: The motor can operate within an ambient temperature range of 0 to 40 degrees C. For storage and transport, the allowable temperature range is from -20 to +80 degrees C.
Q: Does the MKD041B-144-GP0-KN motor come with a holding brake?
A: No, this model does not include a holding brake. However, it features a resolver encoder and an output shaft with keyways for precise position feedback and secure mechanical connection.
Q: What is the peak current rating of the MKD041B-144-GP0-KN synchronous motor?
A: The motor can handle a peak current of 34 A. It also provides continuous current at a standstill of 7.5 A at 60 K and 8.2 A at 100 K.
