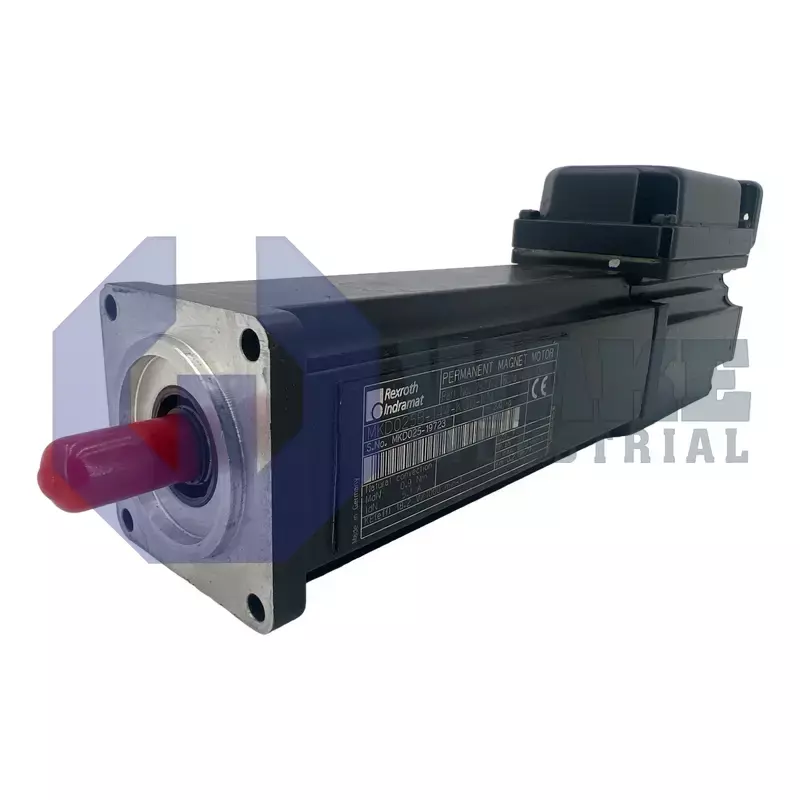

MKD025B-144-KG0-KN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911267372
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD025B-144-KG0-KN is a servo motor from the MKD Synchronous Motors series with a flange size of 54 mm and a centering diameter of 40 mm. It features a resolver feedback encoder with absolute position detection exceeding 4096 revolutions and a continuous torque at standstill of 0.9 Nm. The motor has a plain shaft design and a connection box located on Side B.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MKD025B-144-KG0-KN servo motor is built by Bosch Rexroth Indramat and belongs to the MKD Synchronous Motors series. Paired with digital drive controllers, it delivers tightly coordinated rotary motion in packaging lines, semiconductor handlers, and small pick-and-place axes. Its role is to translate commanded current into proportioned torque and speed so that linear actuators, rotary tables, or belt stages follow reference trajectories without cumulative positioning error. This makes the motor suitable for compact automation tasks that require repeatable motion and stable closed-loop control.
It features a centering pilot of 40 mm, allowing the motor nose to seat squarely against the mating surface and keep the air gap concentric. Power and feedback conductors exit on Side B, which helps keep cabling clear when the unit is installed in confined cabinets or beside adjacent machine elements. Terminations are completed inside a sealed connection box, which provides strain relief and 360-degree shielding against electromagnetic interference. At thermal equilibrium, the rotor can supply 0.9 Nm of continuous stall torque, supporting stable low-speed operation and axis sizing. Rotor position is tracked by resolver feedback, allowing the drive to close the control loops as soon as power is applied.
A square mounting interface with a 54 mm flange mates with compact planetary reducers, allowing the motor to fit small drive trains without changing the basic mounting pattern. The sensing system provides absolute (>4096 revs) position data, so the axis can retain position information across many revolutions and avoid routine homing after startup. The output uses a plain shaft, which accepts clamp couplings that minimize runout and avoid backlash from keyed connections. Internal copper geometry follows winding code 144; together with the B-length stator and 025 frame size, it sets the resistance, inductance, and allowable current for axes that share a common DC bus.
Frequently Asked Questions about MKD025B-144-KG0-KN:
Q: What type of feedback does the MKD025B-144-KG0-KN motor use for position detection?
A: The MKD025B-144-KG0-KN features resolver feedback with an integrated encoder for position detection.
Q: What is the continuous standstill torque of the MKD025B-144-KG0-KN motor?
A: This model delivers a continuous torque at standstill of 0.9 Nm.
Q: What is the centering diameter of the MKD025B-144-KG0-KN motor?
A: The centering diameter of this servo motor is specified as 40 mm.
Q: What type of shaft design is featured on the MKD025B-144-KG0-KN motor?
A: The MKD025B-144-KG0-KN is equipped with a plain shaft design for coupling.
Q: How is the electrical connection configured on the MKD025B-144-KG0-KN motor?
A: Connection for the MKD025B-144-KG0-KN is made via a connection box on connection side B.
