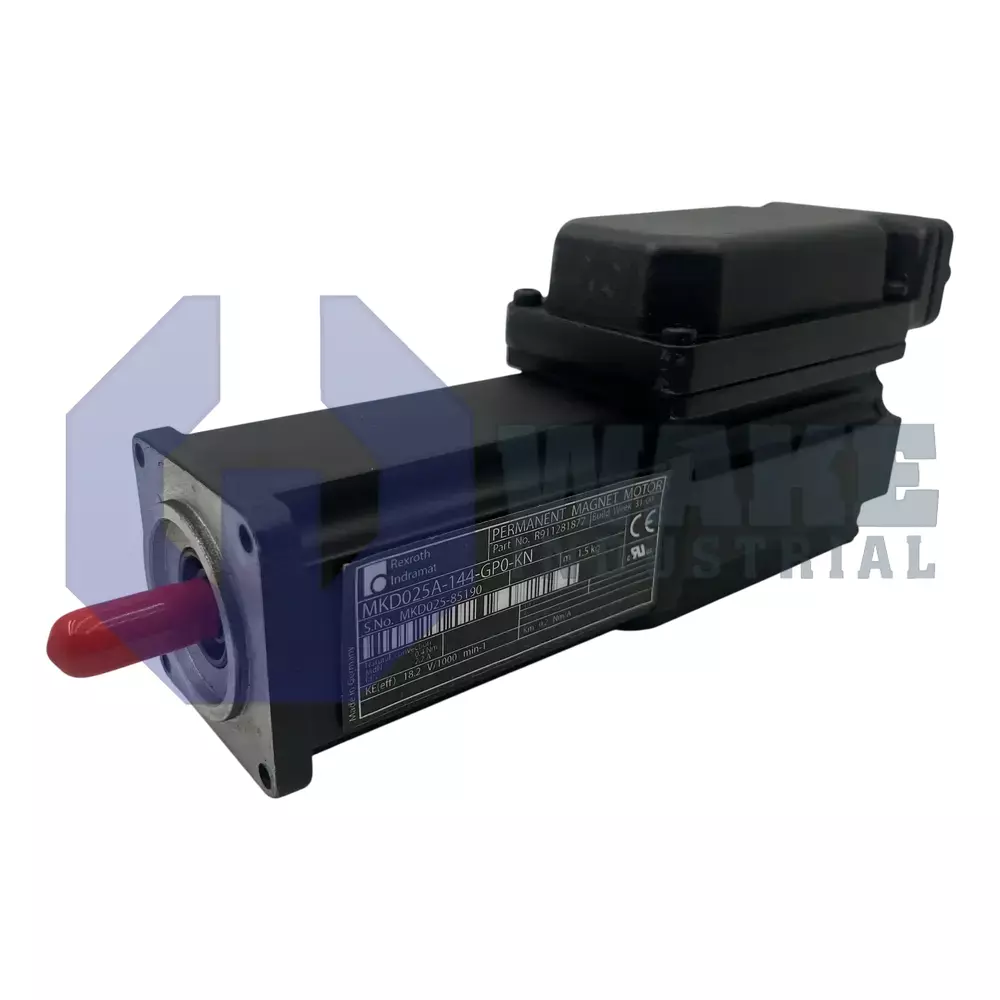

MKD025A-144-GP0-KN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911281877
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MKD025A-144-GP0-KN is a servo motor from the MKD Synchronous Motors series featuring a 54 mm flange size and 40 mm centering diameter. It provides resolver feedback for relative position detection and delivers a continuous torque of 0.4 Nm at standstill. This motor has a shaft with keyway and uses a connection box on Side B.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactures the MKD025A-144-GP0-KN, a compact servo motor in the MKD Synchronous Motors series. The unit converts drive output from a compatible inverter into controlled rotary motion for pick-and-place heads, small conveyors, and other precise axes in industrial automation. Its design balances low inertia with adequate holding torque so closed-loop velocity and position corrections can be executed quickly while maintaining the repeatability demanded by packaging machines, semiconductor tooling, and light assembly stations. Because the motor is intended for continuous duty inside electrical cabinets, it uses onboard terminals to simplify wiring in multi-axis assemblies.
The mechanical interface starts with a centering shoulder of 40 mm, allowing the stator housing to seat accurately against matching machine frames and minimize axial runout. Power and feedback leads exit on Side B, a layout that helps prevent cable loops from interfering with driven components when the motor is mounted flush to a panel. All terminations are contained in a connection box, which provides strain relief and helps maintain EMC shielding continuity. At standstill, the motor can deliver 0.4 Nm of continuous torque, a level suitable for fine-indexing tables. Rotor position is monitored through resolver feedback (RSF), which provides analog sine-cosine signals that high-resolution servo drives can interpret without additional electronics.
The mounting flange measures 54 mm square, so the motor fits compact linear stages and small gearheads without adapter plates. A keyed output shaft, specified as a shaft with keyway, permits direct coupling, while the integral shaft seal helps keep lubricants and contaminants out of the bearing cavity. Coil set designation 144 identifies the winding data required by the drive, and series size 025 marks the overall magnetic frame class used across the MKD family. Motor length code A shortens the rotor stack to reduce mass, and relative position detection simplifies homing routines during startup.
Frequently Asked Questions about MKD025A-144-GP0-KN:
Q: What is the continuous torque at standstill for the MKD025A-144-GP0-KN motor?
A: The MKD025A-144-GP0-KN provides a continuous torque at standstill of 0.4 Nm.
Q: What type of encoder feedback does the MKD025A-144-GP0-KN motor use?
A: This model is equipped with resolver feedback (RSF) for position detection.
Q: Where is the connection direction located on the MKD025A-144-GP0-KN motor?
A: The connection direction for this motor is positioned at Side B for cable management.
Q: What shaft and seal configuration does the MKD025A-144-GP0-KN motor feature?
A: A shaft with keyway design is included, along with a shaft seal for added protection.
Q: What is the flange size for the MKD025A-144-GP0-KN servo motor?
A: The flange size of this model is specified at 54 mm.
