MKD025A-144-GG0-KN Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911281876
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees

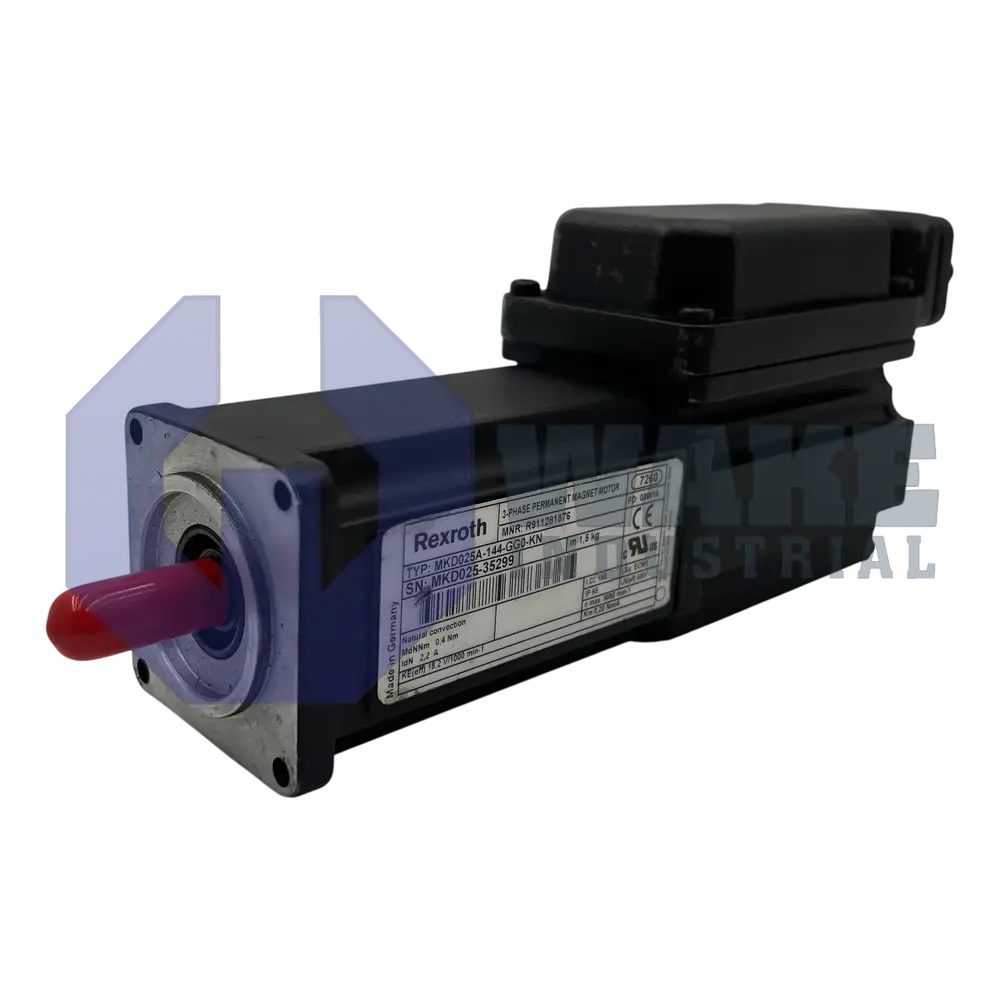

The Bosch Rexroth Indramat MKD025A-144-GG0-KN is a servo motor from the MKD Synchronous Motors series with a flange size of 54 mm and a centering diameter of 40 mm. It features resolver feedback for position detection, a plain shaft design with shaft seal, and has a continuous torque at standstill of 0.4 Nm. The motor is equipped with a connection box on Side B and does not include a holding brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
Bosch Rexroth Indramat manufactures the MKD025A-144-GG0-KN within the MKD Synchronous Motors series. This servo motor is designed to provide controlled rotary motion for small automated stations. It lets drive controllers deliver exact torque and velocity to tooling, indexing tables, or auxiliary axes on packaging and assembly equipment.
The mechanical interface begins with a centering diameter of 40 mm. This circular reference surface keeps the stator concentric to the driven load and minimizes runout after mounting. A square flange measuring 54 mm provides the bolt pattern that couples the motor to gearheads or machine frames. At standstill, the motor can deliver 0.4 Nm of continuous torque, which indicates the holding or low-speed driving force available during indexing cycles. Rotor position is reported through resolver feedback, giving the controller analog sine-cosine signals for fine interpolation across a full revolution. Power and feedback leads terminate in a sealed connection box, simplifying wiring changes because individual conductors can be landed on screw terminals without disturbing the motor housing.
To integrate the motor physically and electrically, the cabling exits on Side B, keeping connections clear of adjacent equipment and aligning with axis layouts that place the load on the opposite face of the flange. The unit is supplied without a holding brake, so static load retention must be handled by the drive or by external locking mechanisms. Size code 025 and length code A indicate a short stack rotor that lowers inertia for rapid start-stop profiles, while winding code 144 matches the stator resistance and inductance to low-power MKD drives. A plain shaft transmits torque directly, and the shaft seal helps keep lubricant from entering the motor interior. Relative position detection is suitable for applications where the control system references the axis after each power-up.
Frequently Asked Questions about MKD025A-144-GG0-KN:
Q: What type of encoder is used in the MKD025A-144-GG0-KN motor?
A: The MKD025A-144-GG0-KN servo motor is equipped with resolver feedback (RSF) for position detection.
Q: What is the continuous torque at standstill for the MKD025A-144-GG0-KN?
A: This motor features a continuous torque at standstill of 0.4 Nm.
Q: Is the MKD025A-144-GG0-KN equipped with a holding brake?
A: The MKD025A-144-GG0-KN model does not include a holding brake.
Q: What shaft design and seal are featured on the MKD025A-144-GG0-KN?
A: This model uses a plain shaft design and comes with a shaft seal.
Q: What is the connection type and direction for the MKD025A-144-GG0-KN servo motor?
A: The connection is made through a connection box positioned at side B.
