Product Description

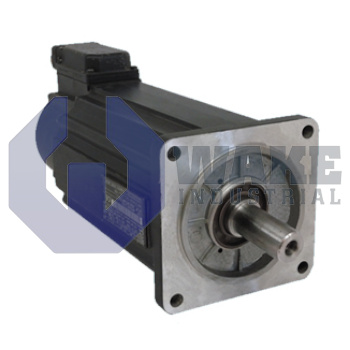

The MHP115B-024-HG1-ANNNNN is a digital AC motor produced by Rexroth Indramat. It offers high repetitive frequencies, continuous stop-start operations, high dynamics and easy mounting. The motor length is B, motor size is 115 and it weighs 40 kg. it has 4 pole pairs and maximum speed is 6000 min^-1. At nominal conditions, the winding inductance of this equipment is rated 5.3 mH. Also, the maximum winding temperature of this motor is 155 ^oC. The feedback mechanism of the MHP115B-024-HG1-ANNNNN utilizes an incremental encoder with 2048 increments. It features a holding brake with a torque rating of 70.0 Nm, and nominal voltage of 24 V DC (+/- 10%). The holding brake weighs 3.8 kg and has a nominal current rating of 1.29 Amps.

The shaft of this equipment is plain and has a sealing ring. The output direction of the electric power connector on top of the MHP115B-024-HG1-ANNNNN is on side A. It cooling mechanism is standard and occurs by natural convection. The rated power of this motor is 3.7 kW. Its thermal time constant is 100 minutes. The peak current of this equipment is rated for 99 Amperes. At 20 degrees C, the torque constant, voltage constant and winding resistance of the MHP115B-024-HG1-ANNNNN are 2.50 Nm/A, 154.0 V/1000min^-1 and 0.36 ohms respectively. The speed measuring counting direction of this equipment is +ve, and its number of lines is 2048. It is categorized in protection class F as per DIN VDE 0530.

During storage, the acceptable temperature range is -20 to +80 degrees C. Also, the MHP115B-024-HG1-ANNNNN must be stored in a horizontal position under vibration free, dust free and moisture free conditions to prevent equipment damage. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
