MHP112D-027-HG0-BNNNNN

  • Rated 4.4 (18 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911291709
  • Call for Expedited Shipping and Product Condition Options

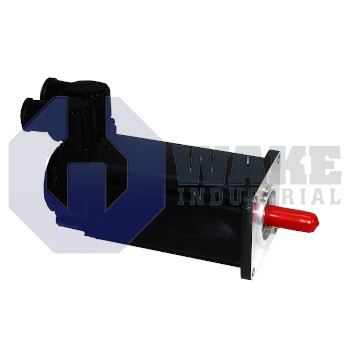

MHP112D-027-HG0-BNNNNN Servo Motor is manufactured by Rexroth, Indramat, Bosch. This motor has a Plain Shaft with Sealing Ring shaft and windings of 27. This motor is also Not Equipped with a holding brake and has an Incremental encoder.

MHP112D-027-HG0-BNNNNN

  • Rated 4.4 (18 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911291709
  • Call for Expedited Shipping and Product Condition Options
MHP112D-027-HG0-BNNNNN Servo Motor is manufactured by Rexroth, Indramat, Bosch. This motor has a Plain Shaft with Sealing Ring shaft and windings of 27. This motor is also Not Equipped with a holding brake and has an Incremental encoder.
Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The MHP112D-027-HG0-BNNNNN is a digital synchronous motor from Bosch Rexroth. The AC motor operates with POWERDRIVE servo drives from the manufacturer. The unit supports peak torque over different speeds because of electronic commutation. It has high overload capabilities because of the heat dissipation from windings in the stator to the outside wall of the housing of the motor. The device must be operated only by qualified and trained personnel. It may experience breakdown when there is a malfunction of monitoring circuits, encoders, or sensors. The motor comes with a one-year warranty period.

The MHP series motor operates at temperatures ranging between 0°C and 40°C. The motor housing, feedback connections, and driven shaft are protected against damage if submerged in water temporarily when the device is used with sealing air connection. The compressed air has a maximum pressure of 0.3bar. The rotor has 360 x 10-4kgm2 moment of inertia. The unit has 2.51Nm/A torque constant and 154.5V/1000min-1 voltage constant at 20°C. It has a maximum speed of 3,000min-1. The speed measuring system has 2,048 lines and a positive counting direction. The device has a brushless and completely sealed design.

The motor can be mounted either vertically or horizontally using a flange mounting style. The device supports an additional 40µm thickness paint coating on the housing. The bearings have a lifespan of 30,000 operating hours if the axial and radial forces are not exceeded. The motor is equipped with standard power cables for connections to intermediate plug-in points and direct connections. The cables are available in lengths ranging from 2 meters to 75 meters. The device has a mass of 48kg. It makes use of either a pipeline or a hose system as a coolant line. We can dispatch the synchronous motor to your address through our delivery partners.

MHP112D-027-HG0-BNNNNN Documents

  • MHP112D027HG0BNNNNN
  • mhp112d-027-hg0-bnnnnn
  • MHP112D 027 HG0 BNNNNN

MHP112D-027-HG0-BNNNNN Technical Specifications

Driven Shaft: Plain Shaft with Sealing Ring
Encoder: Incremental
Holding Brake: Not Equipped
Windings: 27
