Product Description

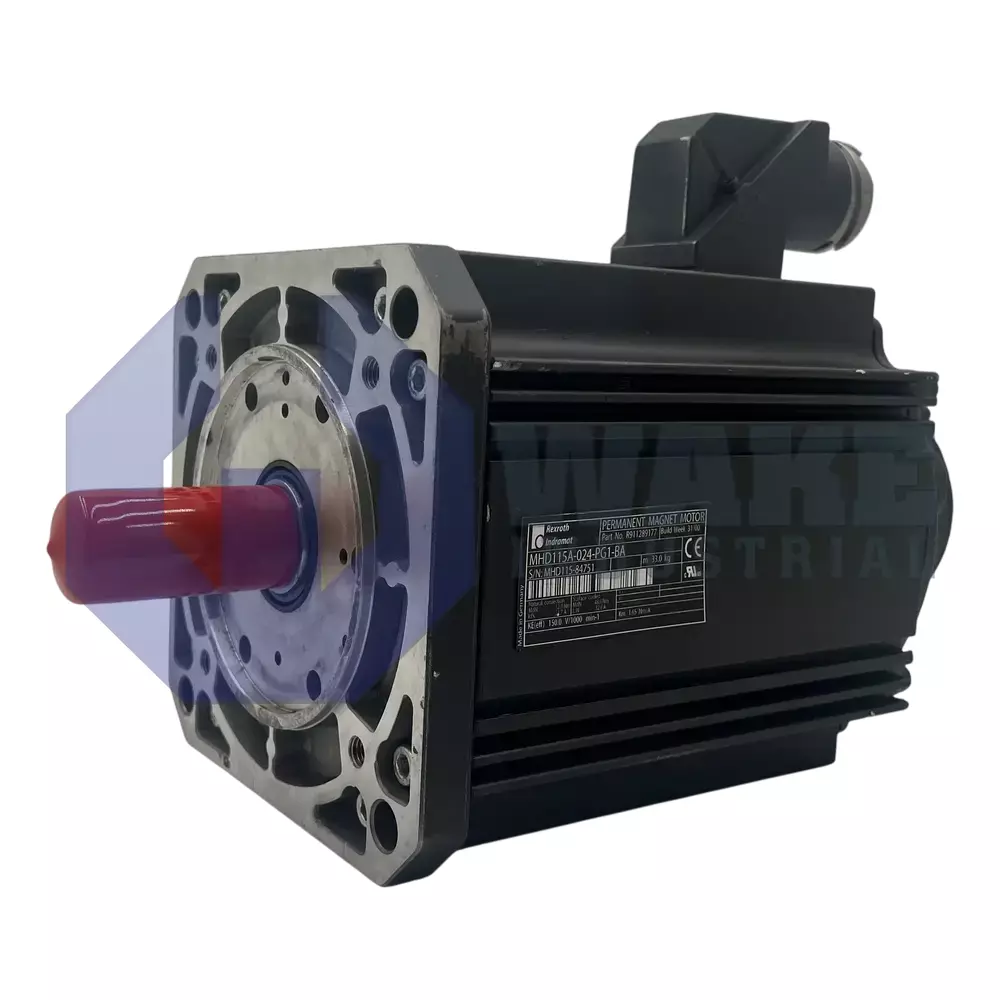

The Bosch MHD115A-024-PG1-BA is an industrial servo motor. It is part of the MDD family of synchronous motors. Cooling methods supported by MHD motors include natural convection, surface cooling and liquid cooling. The MHD115A-024-PG1-BA motor is designed for natural convection and surface cooling. The choice of cooling method depends on the application: natural convection is appropriate for low torque requirements, and surface cooling is suitable for higher torque requirements. When used with natural convection at 60K overtermperature, the MHD115A-024-PG1-BA delivers 32 Nm continuous torque at standstill and 21.7 Amps continuous current at standstill. When used with natural convection at 100K overtermperature, the MHD115A-024-PG1-BA delivers 36.5 Nm continuous torque at standstill and 25 Amps continuous current at standstill. When used with surface cooling, the MHD115A-024-PG1-BA delivers 48 Nm continuous torque at standstill and 32.6 Amps continuous current at standstill.

The peak current that the MHD115A-024-PG1-BA can deliver is 98 Amps. The rated motor speed is 2000 RPM. The peak motor speed is 4000 RPM. Mass of the motor is 30 kilograms. Mass of the motor holding brake is 3.8 kilograms. The brake is rated for 70 Nm holding torque and operates at 24 Volts DC. The time taken by the brake to connect is 53 milliseconds. The time taken by the motor to disconnect is 97 milliseconds. The MHD115A-024-PG1-BA is a flange-mounted device and comes with a 192 millimeter flange. Support for digital servo feedback with integrated encoder is available on the motor. The main shaft on the MHD115A-024-PG1-BA is plain and is fitted with a sealing ring. The power connector is on side B. Instructions related to storage and transport are listed on the motor packaging.
