MHD115A-024-NG0-BN

  • Rated 4.5 (34 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911286131
    In-Stock, Ships 3-5 Days
  • Call for Expedited Shipping and Product Condition Options

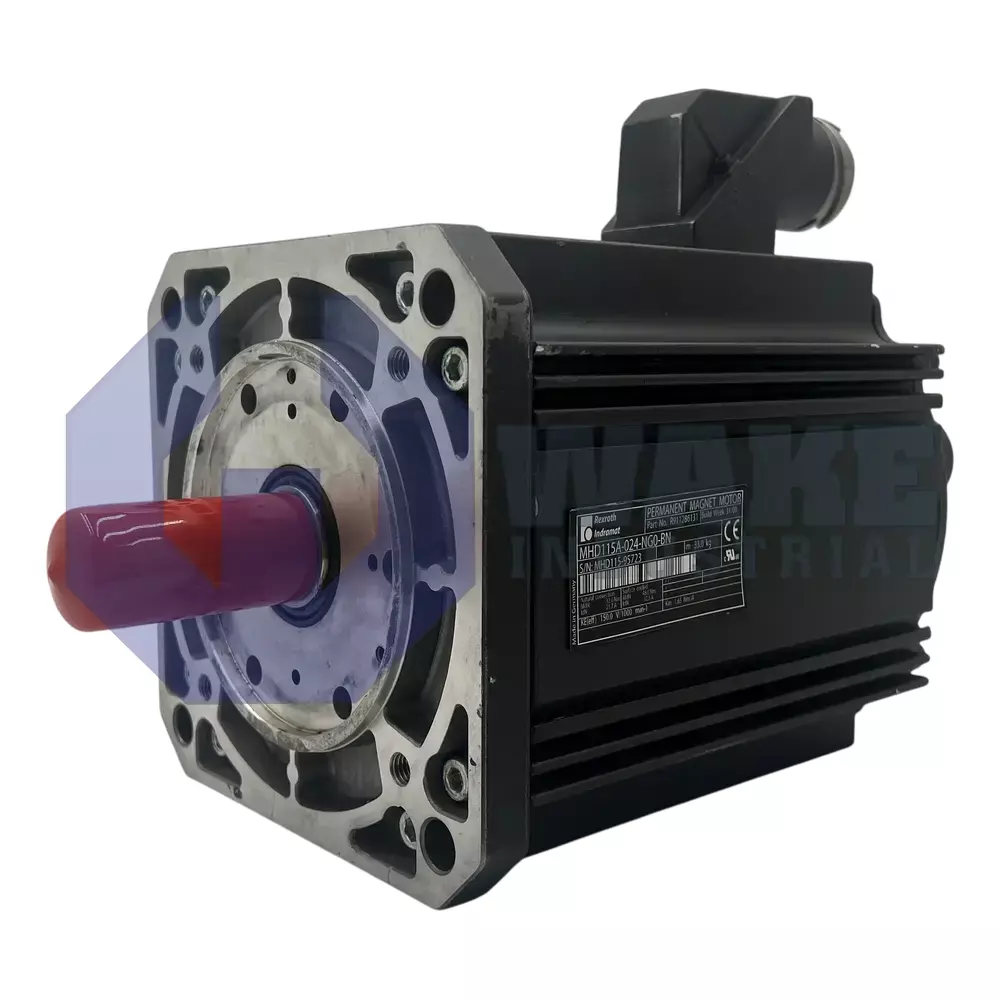

The MHD115A-024-NG0-BN Magnet Motor is manufactured by Rexroth Indramat Bosch. This motor has a Winding Code of 24 and has a Digital Motor Encoder. The Driven Shaft for this motor is Plain and it is Not Equipped with a holding brake.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The Bosch MHD115A-024-NG0-BN is a synchronous servo motor. According to the type code for the MHD115 series, the motor frame size is 115, the motor frame length is A, and the winding code is 024. The MHD115A-024-NG0-BN motor has a housing that is designed for cooling through natural convection or liquid cooling. Natural convection is suitable for low motor loads, and liquid cooling can be employed for higher motor loads. Rated speed of the MHD115A-024-NG0-BN motor is 2000 RPM and its maximum speed is 4000 RPM. The continuous torque at standstill is 32 Nm with natural convection and 60.8 Nm with liquid cooling. The continuous current at standstill is 21.7 Amps with natural convection and 41.2 Amps with liquid cooling. Peak current that the MHD115A-024-NG0-BN motor can deliver is 98 Amps.

Performance specifications for the MHD115A-024-NG0-BN motor with natural convection at 60K overtemperature are as follow: 14.9 Nm rated torque, 7.1 Amps rated current, 3.8 kilowatts power outputs, 309 Volts rated voltage and 133 Hertz rated frequency. Weight of the motor is approximately 30 kilograms. The motor does not feature a holding brake. However optional holding brakes can be ordered if required. Features available on the motor include support for digital servo feedback, a plain main shaft with sealing ring and power connector on side B. The location of the power connector is specified at the time of ordering. The MHD115A-024-NG0-BN motors mounts through holes on the flange. The size of the motor flange is 192 millimeters. The centering diameter is 180 millimeters and the shaft diameter is 38 millimeters. The housing of the MHD115A-024-NG0-BN is IP65 rated and is completely protected from dust ingress.

  • MHD115A024NG0BN
  • MHD115A 024 NG0 BN
  • mhd115a-024-ng0-bn

MHD115A-024-NG0-BN Technical Specifications

Driven Shaft: Plain
Holding Brake: Not Equipped
Motor Encoder: Digital
Winding Code: 24
