MHD112D-027-PG3-BN

  • Rated 4.5 (24 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911283384
    In-Stock, Ships 3-5 Days
  • Unused Original Box Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options

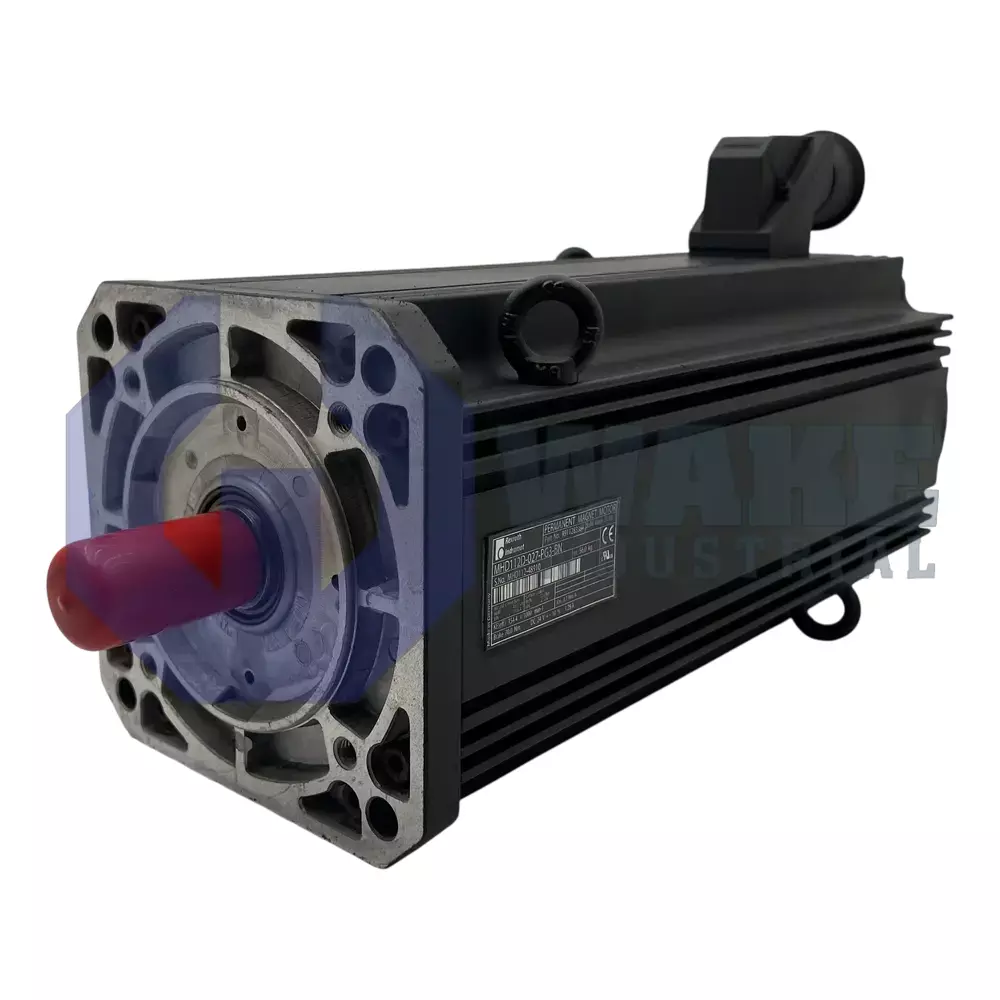

The MHD112D-027-PG3-BN Magnet Motor is manufactured by Rexroth Indramat Bosch. This motor has a Winding Code of 27 and has a Multiturn Motor Encoder. The Driven Shaft for this motor is Plain and it is Equipped with a holding brake.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The Bosch MHD112D-027-PG3-BN is a Rexroth MHD family synchronous motor. It supports digital servo feedback and comes with an integrated multiturn absolute encoder. The MHD112D-027-PG3-BN also comes with an integrated holding brake which is rated for 70 Nm. The holding brake is required for clamping the servo axis when the motor is in the de-energized state. The holding brake follows electrical release principle of operation. When de-energized, a magnetic force acts on the brake armature disk causing the brake to close and clamp on to the to the axis. When 24 Volts DC is applied, the brake opens due to application of electrically generated magnetic field. The electrical connector is located on side B of the motor. The motor frame size and frame length are 112 and D respectively. The motor winding code is 027.

The MHD112D-027-PG3-BN has a plain shaft which does include a sealing ring. Housing of the MHD112D-027-PG3-BN is rated for IP65 and is designed to be cooled through surface cooling or natural convection. Temperature ranges recommended by Bosch for storage and operation of the motor are -20 to 80 degrees Celsius and 0 to 40 degrees Celsius respectively. Insulation class of the motor is F as per DIN VDE 0530. Characteristic speed of the MHD112D-027-PG3-BN is 3000 RPM and the rated speed is 2000 RPM. Rated torque ranges from 27.3 Nm at 60K to 59.2 Nm at 60K/100. Mechanical motor parameters include weight of 56 kilograms and maximum recommended installation altitude of 1000 meters. The MHD112D-027-PG3-BN is well suited to industrial applications including machine tools, food and packaging machines and automation. Prior to operation, it must be verified that the rotor on the MHD112D-027-PG3-BN can be operated manually without the holding brake being open. The MHD112D-027-PG3-BN can be shipped to any address globally with a one-year warranty period from Wake Industrial.

  • MHD112D027PG3BN
  • MHD112D 027 PG3 BN
  • mhd112d-027-pg3-bn

MHD112D-027-PG3-BN Technical Specifications

Driven Shaft: Plain
Holding Brake: Equipped
Motor Encoder: Multiturn
Winding Code: 27
