Product Description

One of Bosch Rexroth’s most revolutionary products is its cost-effective automation system. The components of this system are digital intelligent drive controllers and synchronous servo motors like those in the MHD series. The MHD servo motors are permanent magnet motors with low inertia and high operational reliability. As part of the automation systems by Bosch Rexroth, they can be used in machine tools, handling and automation systems, and food industries.

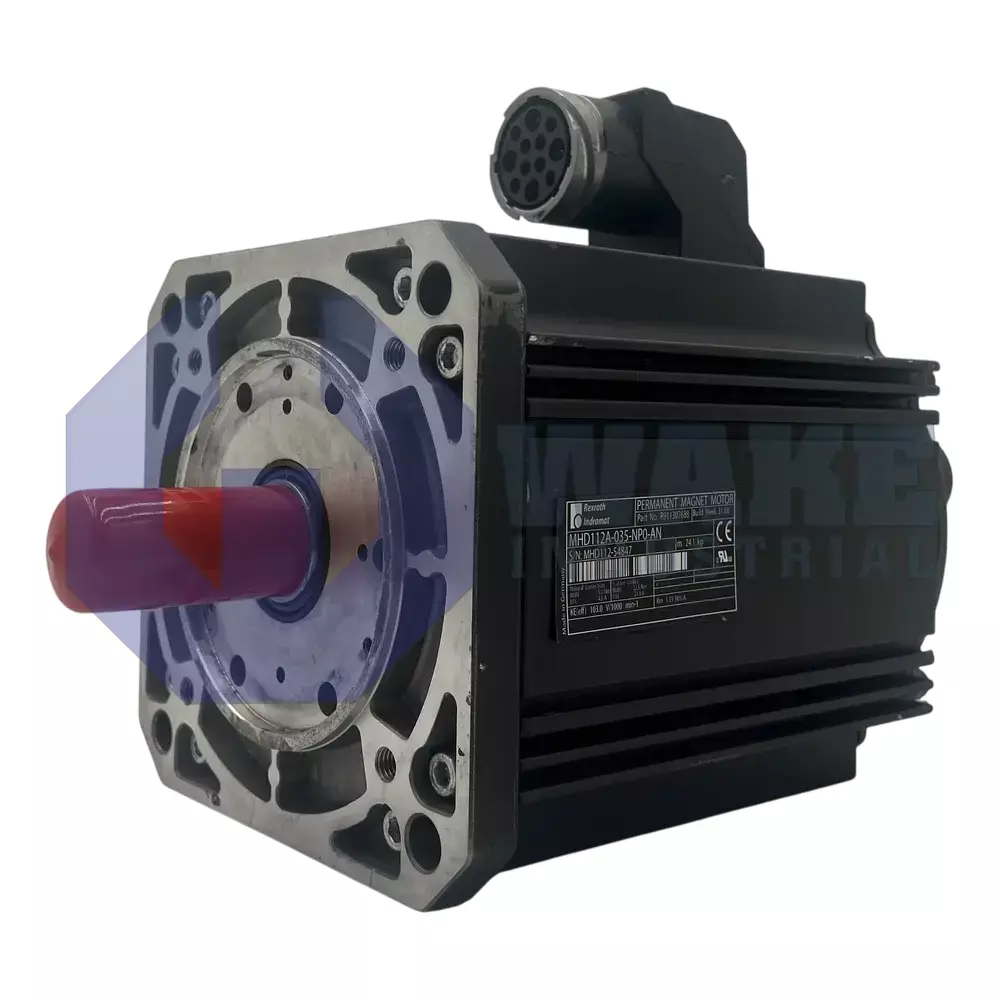

The MHD112A-035-NP0-AN is a Bosch Rexroth servo motor in the MHD series. It features a digital servo feedback system for the control of the motor’s speed and its position. The encoder unit performs its function by providing the relevant signals to the drive controller, which transmits the positional value to a superordinate CNC. It has a data storage capacity where parameters like the motor’s type name and its control loop parameters are stopped. The motor can be installed in any position with easy cabling thanks to the use of cable sets of various designs in its installation. It has high-performance data and high dynamics due to a favorable torque-to-inertia mass ratio.

The output shaft of the MHD112A-035-NP0-AN is equipped with radial shaft sealing rings according to DIN 3760 - design A. Its featherkey is according to DIN 6885-1, and it permits keyed torque transmission with constant direction. With the IP 65 Ingress Protection rating of its housing, the motor can be operated under adverse environmental conditions. It is completely dustproof, touch-proof, and impenetrable to solid objects or sprays from water jets. It also supports cooling by natural convection or surface cooling. Furthermore, electronic commutation in this motor ensures that its peak torque is utilized across a wide speed range.
