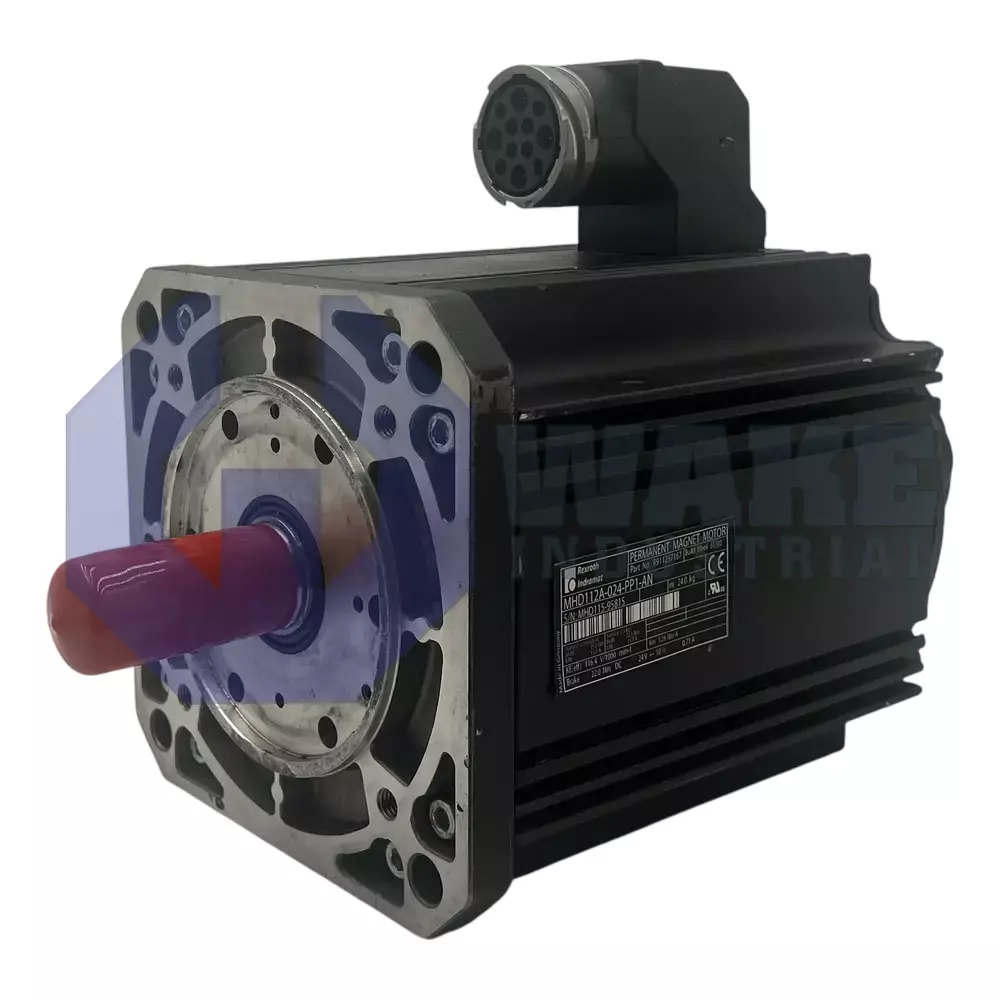

MHD112A-024-PP1-AN
- MPN: R911287167
- Stock: Call for Quote
COVID-19 Update: Wake Industrial is open and available to support your automation needs.
This company was fantastic to work with! Very patient with us to make sure we ...
~ Carla Morgan Excellent Kentucky, USANext day air shipping and we are up and running!! Thanks so much!
~ Jeanne Wolter Excellent Colorado, USAWe asked for a fast turn around and Wake was up to the task!
~ Darrell Chapman Excellent Indiana, USAI contacted Gregg one morning in desperate need of two servos to get our Filler ...
~ Paul Kovacs Excellent California, USAThe service that I received was outstanding!
~ Gary Douglas Excellent Ontario, CanadaUnderstood our situation, and worked to help us get it solved. Very responsive, and stepped ...
~ Brian Tomlin Excellent Arizona, USABosch's Rexroth makes the MHD112A-024-PP1-AN which is in the MHD Series. The MHD112A indicates that its motor has a size value of 100 and is a synchronous servo motor which has length type 'A'. With a winding code of 024, it is fitted with a digital servo feedback. Coupled with is an integrated multiturn absolute encoder that functions primarily as a signal transmitter to the motor's drive controller. It also has a shaft with key as per DIN6885-1 and a 22Nm holding brake. This particular motor has its output direction of power connection on the mechanical side A part and has a housing design that affords it the luxury of natural convection or surface cooling.
Mechanical parameters of the MHD112A-024-PP1-AN at Natural 60K both the minimum strand cross-section and time constant 1.5mm² and 40min respectively. These values remain at 1.5mm² and 20min when recorded at Surface 60K/100. The motors maximum speed does not exceed but is capped at 4000min–¹. The rotor's moment of inertia is 110×10–⁴kgm² while the theoretical maximum torque is 54Nm. Without the holding brake and blowing unit the motor's mass is 23kg and it carries a IP65 protection class and an 'F' insulation class according to the Part 1 of the DIN VDE 0530 specification. Permanent storage should be in temperature between -20°C to 80°C and ambient temperature during operation between 0°C to 40°C. The maximum setup height is 1000m above MSL.
Rated data at Natural 60K, Natural 100K and Surface 60K/100 are as follows; rated torque is 10.1Nm, 13.8Nm and 19.4Nm respectively, rated performance is 3.2kW, 4.8kW and 6.4kW respectively, rated current is 6.2A, 9.1A and 12A. The rated voltage according to these aforementioned parameters is 374V, 332V and 355V. Rated frequency is recorded at 167Hz which is constant for all parameters. Likewise, the rated speed at 2500min–¹ is constant for all three types of cooling and overtemperature parameters. Before use, proper consultation of the manual and perusal of all terms and conditions should be considered to curtail hazards and or misunderstanding of this machine. The MHD112A-024-PP1-AN can be shipped to any address globally with a one-year warranty period from Wake Industrial.
Driven Shaft: | With Key |
Holding Brake: | Equipped |
Motor Encoder: | Multiturn |
Winding Code: | 24 |
