MHD112A-024-NP1-AN

  • Rated 4.5 (21 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911309377
    In-Stock, Ships Today
  • Call for Expedited Shipping and Product Condition Options

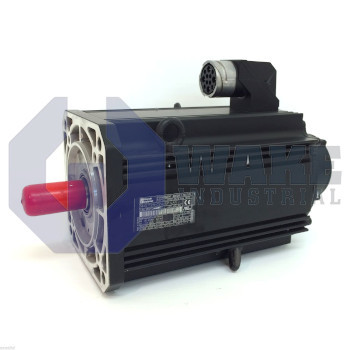

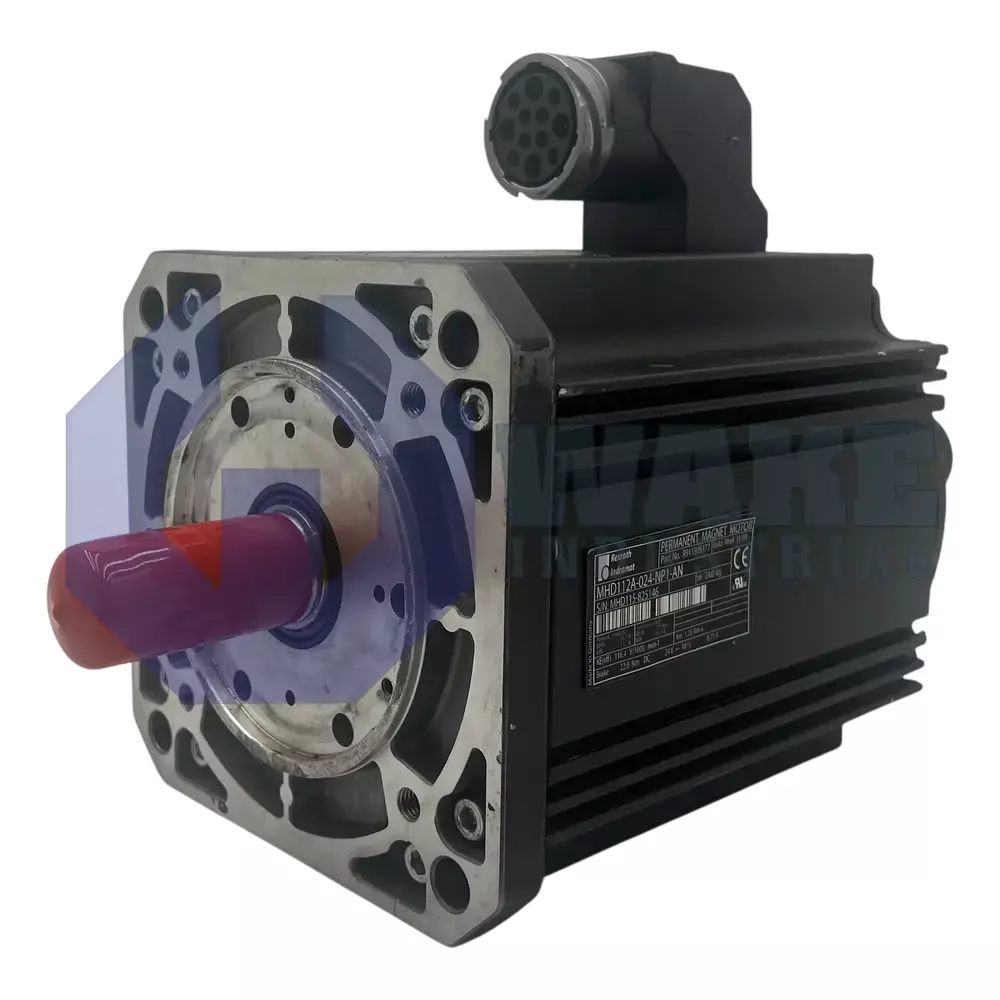

The MHD112A-024-NP1-AN Magnet Motor is manufactured by Rexroth Indramat Bosch. This motor has a Winding Code of 24 and has a Digital Motor Encoder. The Driven Shaft for this motor is With Key and it is Equipped with a holding brake.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch Rexroth is the industry leader in the design and production of energy-efficient, long-lasting, and cost-effective equipment for a wide range of industrial applications, including synchronous motors, spindle motors, and drive controllers.

The MHD112A-024-NP1-AN model has a rated rotational speed of 2000 rpm, a rated voltage consumption of 314 A, a rated frequency of 167 Hz, and it operates optimally at a maximum ambient temperature of +40 degrees Celsius. The MHD112A synchronous motor has a winding code of 024, a winding inductivity of 14 mH, and a resistance of 1.45 ohms. This motor can only withstand shock-absorbing or shock-decoupled loads, such as those encountered in presses, punches, or press inlets, provided it is fixed in a shock-absorbing or shock-decoupled way. The setup of such linkages must be reviewed in isolated circumstances. During natural cooling mode, the MHD112A synchronous motor has a rated torque of 13.8 Nm, a rated current of 9.1 A, and a voltage consumption of 332 volts. The thermal time constant of the model is 40 minutes, and the maximum theoretical torque production is 54 Nm. The synchronous motor has an inertia moment of 110 x 10-4 kgm2 and a shaft with keys for smooth torque transfer.

The model MHD112A-024-NP1-AN running speed and shaft position are controlled by digital servo feedback. In surface cooling mode, at 60/100-K temperatures, the motor produces a constant torque of 22.5 Nm while drawing a continuous current of 19.7 A. During natural cooling mode, the motor produces 3.2 kW of rated power with current usage of 6.2 A at 60 K. Wake Industrial stocks this item (MHD112A-024-NP1-AN) and can ship it with a one-year replacement warranty. The organization uses a respected logistics service to distribute its items.

  • MHD112A024NP1AN
  • MHD112A 024 NP1 AN
  • mhd112a-024-np1-an

MHD112A-024-NP1-AN Technical Specifications

Driven Shaft: With Key
Holding Brake: Equipped
Motor Encoder: Digital
Winding Code: 24
