Product Description

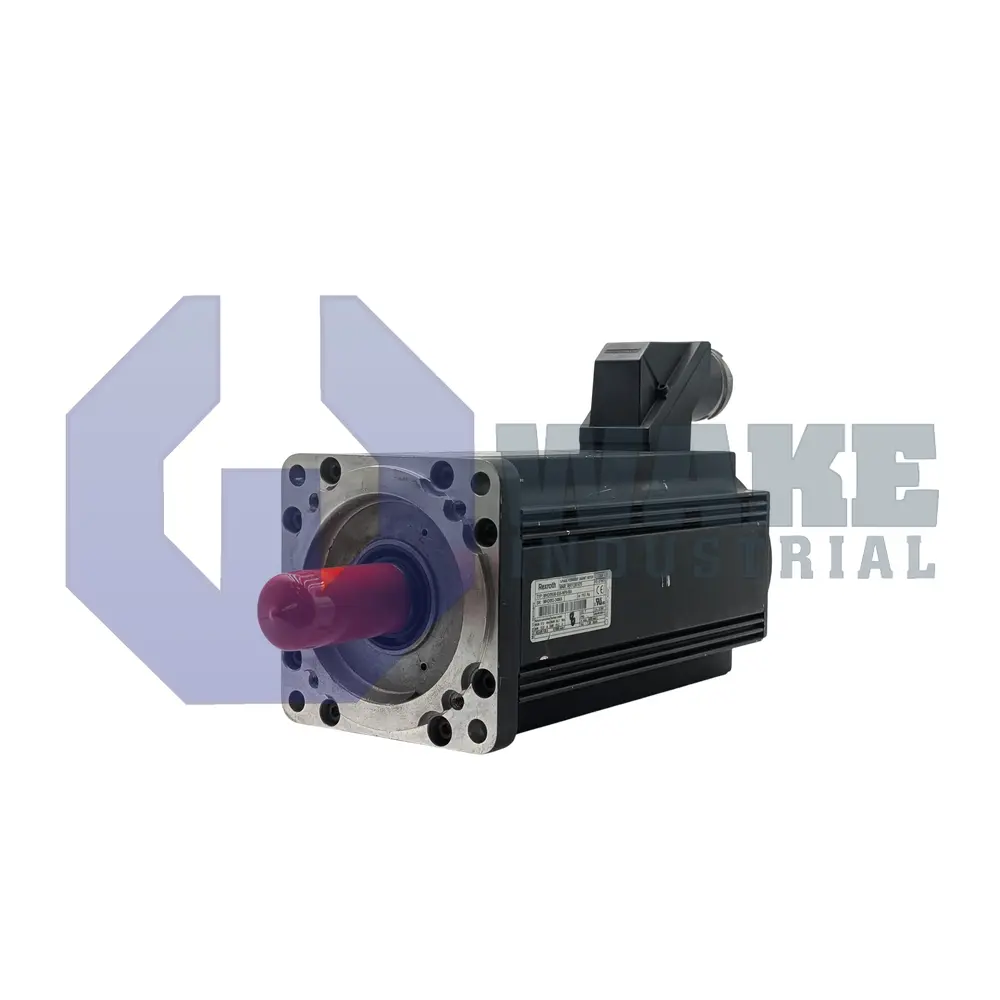

The Bosch MHD093B-058-PG1-LA is an advanced synchronous servo motor. It comes with integrated support for digital servo feedback. The motor features an integrated multiturn absolute encoder. The function of the encoder is to measure motor parameters such as torque and speed and send this information to a connected drive controller. Multiturn encoders are suited to applications that require measurement of degree of rotation and the total number of rotations. Multiturn encoder are also suited to applications that involve coordinated axes that are offset. The MHD093B-058-PG1-LA housing is designed for natural convection or surface cooling. Other motor features include a holding brake and a plain shaft with a sealing ring. The sealing ring is a factor that contributes to the excellent IP65 protection rating of the servo motor. The seal should however be inspected periodically and replaced when required.

The size of the flange on the MHD093B-058-PG1-LA is 140 / 150 millimeters and the centering diameter is 130 millimeters. The diameter of the motor shaft is 32 millimeters. The length of the motor is 356 millimeters. The shipping weight of the motor is 19 kilograms. The power connector is located on the left side of the motor housing. The holding brake has a 22 Nm rated toque and operates at 24 Volts DC. Rated data for the MHD093B-058-PG1-LA motor includes 2500 RPM rated speed, 5.4 Nm rated torque, 4.9 Amps rated current and 200 Volts rated voltage. The theoretical maximum motor torque value is 66 Nm. The motor time constant is 60 minutes. The wire used for power connections should have a minimum cross-section of 2.5 mm². The recommended ambient working temperature range is 0 to 40 degrees Celsius.
