✓ In-Stock!

Wake Industrial LLC is not an authorized distributor of this product.

MHD093B-035-NG0-LA

  • Rated 4.6 (11 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911290439
    In-Stock, Ships 3-5 Days
  • Unused Original Box Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options

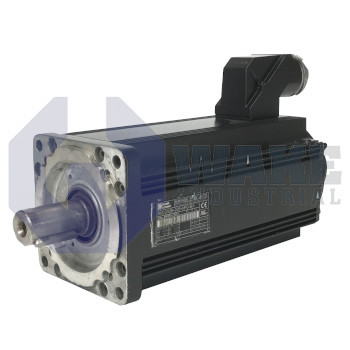

The MHD093B-035-NG0-LA Magnet Motor is manufactured by Rexroth Indramat Bosch. This motor has a Winding Code of 35 and has a Digital Motor Encoder. The Driven Shaft for this motor is Plain and it is Not Equipped with a holding brake.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

Bosch is one of the leading manufacturers of automation products. The company provides cost-effective solutions through its products such as synchronous motors, frequency converters, and industrial power tools.

The MHD093B-035-NG0-LA model is designed to operate on both natural and surface cooling modes. Under normal operating conditions the motor operates at the natural cooling mode in which it consumes 350 – 360 V of input voltage to deliver the continuous power of 2.7 – 4.7 kW. Under extreme loading conditions, the MHD093 synchronous motor operates at the surface cooling mode in which the motor consumes 374 V of rated voltage to deliver the constant power of 6.6 kW. In surface cooling mode, a blower unit is attached to the motor for cooling purposes. The maximum overtemperature range for motor housing is 60K and 100K for motor winding. The MHD093 synchronous motor is capable to deliver the nominal torque of 8.8 – 20.9 Nm while consuming the nominal current of 4.6 – 10.8 A, at the input voltage frequency of 167 Hz. The motor is widely used in various industrial sectors such as machine shops, printing industries, textile mills, and food-processing units. The MHD motor housing is painted with a black color to protect it from harsh climatic conditions. A sealing ring is also placed along the plain output shaft to avoid oil leakage.

The model MHD093B-035-NG0-LA is equipped with digital intelligent servo feedback for controlling the speed and position of the MHD093 synchronous motor. The climatic conditions specified in the user manual are +40 degree Celsius operating temperature, class-F insulation, and 1000 meters installation height. The connector with the power delivery to the left side is placed at the top of the motor. You can order this IndraDyn S synchronous motor (MHD093B-035-NG0-LA) from Wake Industrial.

  • MHD093B035NG0LA
  • MHD093B 035 NG0 LA
  • mhd093b-035-ng0-la
  • MHD93B-035-NG0-LA

MHD093B-035-NG0-LA Technical Specifications

Driven Shaft: Plain
Holding Brake: Not Equipped
Motor Encoder: Digital
Winding Code: 35
