The MHD071B-061-PG1-UN synchronous motor offers precise motion control with continuous torque output ranging from 8 to 12 Nm. Its rated speed varies between 4000 and 5000 rpm depending on the cooling method.

Preparing your secure checkout page...

Request A Quote

Please fill out the form below and a representative will contact you with a formal quote.

Request A Repair

Please fill out the form below and a representative will contact you with a formal quote.

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

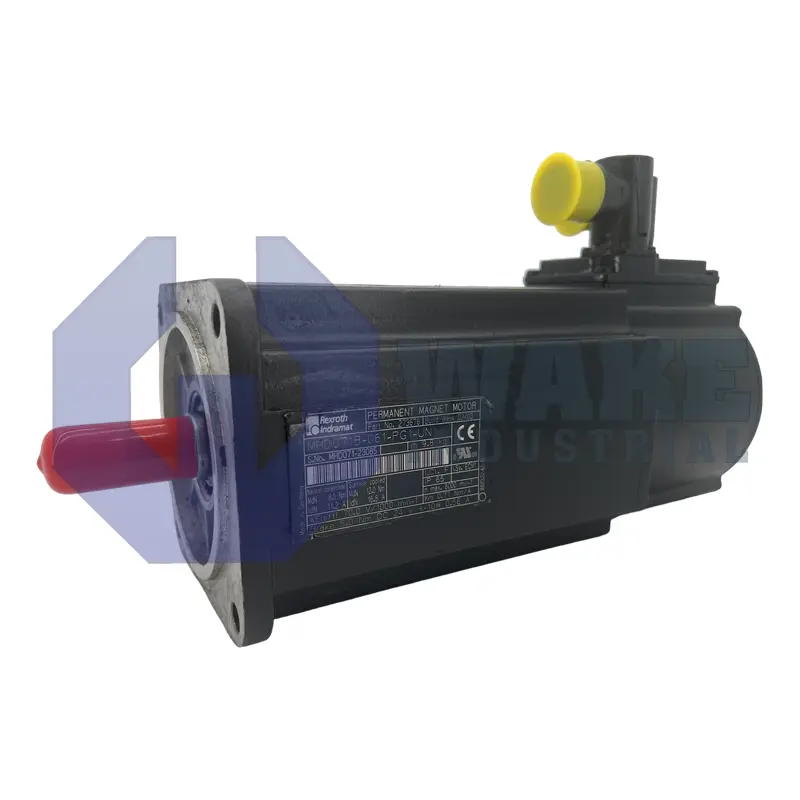

The model MHD071B-061-PG1-UN is a robust synchronous motor designed for high precision motion control applications. It ensures reliable performance across various operational environments. It is a suitable solution for industrial automation systems requiring precise torque control and consistent speed regulation.

This MHD071B-061-PG1-UN synchronous motor offers an optimal cooling system with three variations: natural cooling with overtemperature limits of 60 K and 100 K and surface cooling with 60K/100K. The motor provides a continuous torque output of 8 to 12 Nm and is capable of peak currents reaching up to 50.5 A. Its rated speed varies between 4000 to 5000 rpm depending on the cooling method. The MHD series synchronous motor ensures efficient operation with a rated torque output of up to 7.8 Nm and rated performance reaching 4.4 kW. The motor is equipped with a winding resistance of 1.45 ohms and a winding inductivity of 7.2 mH contributing to its electrical stability. The motor features a voltage constant of 70 V/1000rpm which further enhances its precision in speed control applications.

The MHD071B-061-PG1-UN synchronous motor includes a rotor moment of inertia of 8.7 x 10-4 kgm^2 and a maximum speed of 6000 rpm that makes it ideal for high speed tasks. The motor is built with a protection class of IP65 to ensure it operates reliably in harsh environments. It has an operational ambient temperature range from 0 degrees C to 40 degrees C and can tolerate storage temperatures as low as - 20 degrees C. The motor's holding brake provides a torque of 5.0 Nm and connection and disconnection times of 20 and 38 ms. This synchronous motor weighs approximately 8.8 kg and is coated with a durable prime varnish.

  • MHD071B061PG1UN
  • MHD071B 061 PG1 UN
  • mhd071b-061-pg1-un
  • MHD71B-061-PG1-UN

MHD071B-061-PG1-UN Technical Specifications

Product Type: Synchronous Motor
Insulation Class: F
Series: MHD
Characteristic Speed: 4500 rpm
Peak Current: 50.5 A
Torque Constant: 0.77 Nm/A
Winding Resistance: 1.45 ohms
Winding Inductivity: 7.2 mH
Theoretical Maximum Torque: 32 Nm
Mass : 8.8 kg

Frequently Asked Questions about MHD071B-061-PG1-UN


Q: What are the cooling options available for the MHD071B-061-PG1-UN synchronous motor?

A: The MHD071B-061-PG1-UN motor offers three cooling options. These include natural cooling with overtemperature limits of 60K and 100K, as well as surface cooling with 60K/100K for enhanced performance.

Q: What is the maximum speed of the MHD071B-061-PG1-UN motor?

A: This motor can reach a maximum speed of 6000 rpm. This makes it ideal for high-speed applications requiring precision and durability in industrial automation.

Q: What is the rated torque and performance of the MHD071B-061-PG1-UN synchronous motor?

A: The motor has a rated torque output of up to 7.8 Nm and a performance rating of 4.4 kW. It ensures efficient operation in motion control tasks requiring high precision.

Q: What are the environmental operating conditions for the MHD071B-061-PG1-UN?

A: This motor can operate in ambient temperatures ranging from 0 degrees C to 40 degrees C. It can tolerate storage temperatures as low as -20 degrees C, making it suitable for diverse environmental conditions.

Q: What are the connectivity and electrical properties of the MHD071B-061-PG1-UN motor?

A: The motor features a winding resistance of 1.45 ohms and inductivity of 7.2 mH. This provides electrical stability, supporting precise torque and speed control in motion control applications.

Internal Product Review

  • ‘‘The MHD071B-061-PG1-UN synchronous motor excels in high-precision applications due to its impressive torque range of 8 to 12 Nm and robust IP65 protection rating. Its rotor moment of inertia, rated at 8.7 x 10^-4 kgm^2 allows for superior performance at high speeds of up to 6000 rpm.’’
