The MHD071B-061-NG1-UN Magnet Motor is manufactured by Rexroth Indramat Bosch. This motor has a Winding Code of 61 and has a Digital Motor Encoder. The Driven Shaft for this motor is Plain and it is Equipped with a holding brake.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

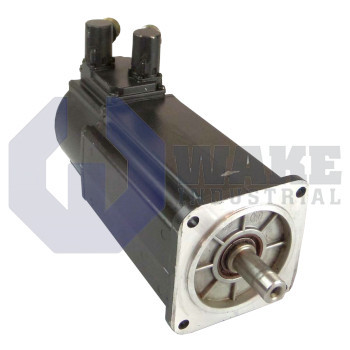

✓ In-Stock! MHD071B-061-NG1-UN | Rexroth, Indramat, Bosch MHD Motor Series | Image

MHD071B-061-NG1-UN

  • Rated 4.5 (38 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
  • MPN: R911275109
  • Stock: In-Stock, Ships 1-2 Days
  • Factory New Pricing Available!
    Request a Quote!
  • Call for Expedited Shipping and Product Condition Options
The MHD071B-061-NG1-UN Magnet Motor is manufactured by Rexroth Indramat Bosch. This motor has a Winding Code of 61 and has a Digital Motor Encoder. The Driven Shaft for this motor is Plain and it is Equipped with a holding brake.

Request a Quote Request Repair

Standard Repair Time is 1 - 2 weeks. 4 Day Rush Repair options are available.

Warranty
1 Year Wake Industrial Warranty Included
Shipping
Worldwide shipping via DHL, UPS, and Fedex
Repairs
Sell Us Your Surplus
Have a MHD071B-061-NG1-UN to sell?
To Speak to a sales representative for pricing and lead time:

Product Description

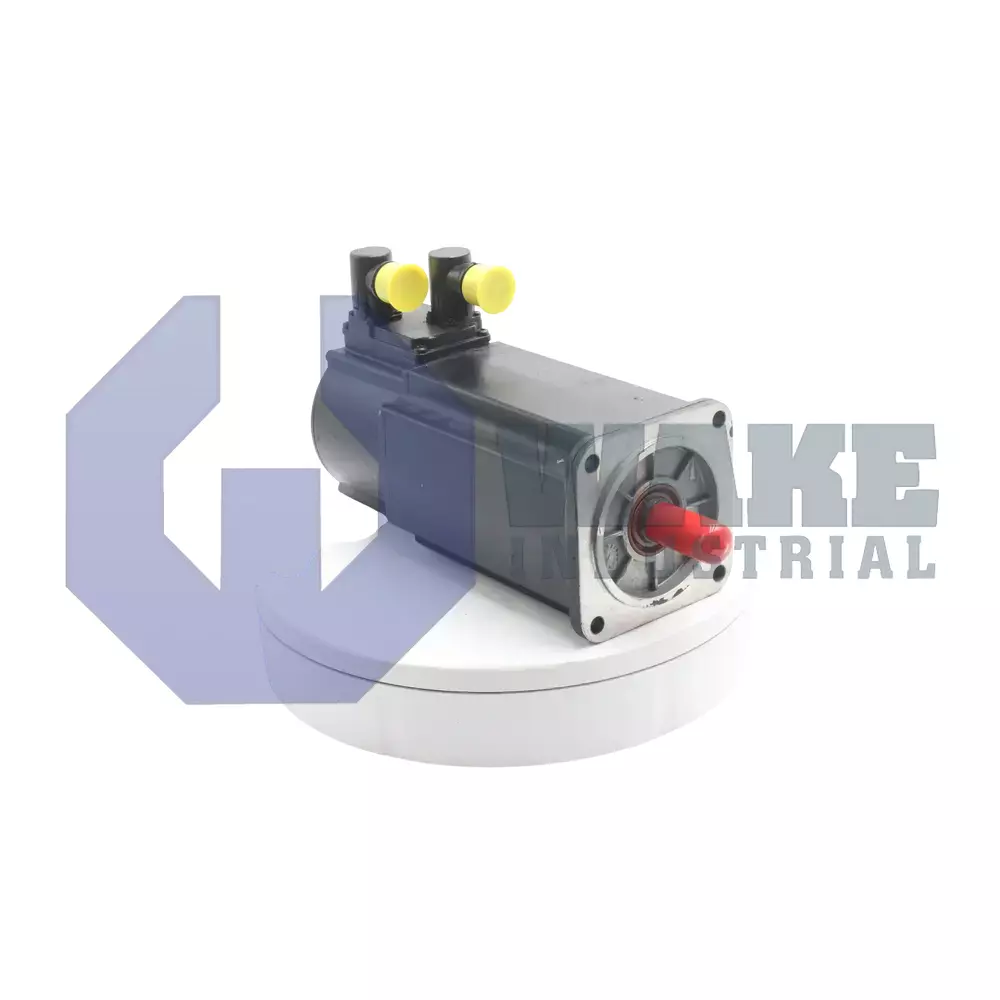

The MHD071B-061-NG1-UN is a synchronous motor from Rexroth Indramat under the MHD series. In conjunction with digital intelligent drive controllers, the motor provides a cost-effective automation system. This system offers extensive functionality for applications such as packaging machines, food processing machines, and machine tools among others. Using it comes with numerous benefits such as high operation reliability, maintenance-free construction, and continuous start-stop operation thanks to the high repeat frequencies facilitated by electrical commutation. Its basic construction comprises a shaft, stator with winding, bearing, motor encoder, flange socket, shaft sealing ring, holding brake, and rotor with permanent magnets.

The MHD071B-061-NG1-UN features a natural convection type of cooling, an IP 65 protection category, and the housing is protected with a prime black coating. The mechanical parameters include a time constant of 45 min, theoretical maximum torque of 32.0Nm, and a moment inertia of 8.7 x 10-4. It has a maximum speed of 6000 rpm. The ambient conditions are an operating temperature of 0 to 40 degrees, a storage and transport temperature of -20 to 80 degrees, a maximum installation height of 1000 meters above sea level, and a permissible humidity of 95% without condensation.

The electrical parameters of the MHD071B-061-NG1-UN include a continuous torque at standstill of 9.0Nm, a continuous current at standstill of 13.2 A, and a peak current of 50.5 A. it has a rated speed of 5000 rpm, rated torque of 5.3Nm, rated current of 5.5 A, and a rated voltage of 368 V. this Rexroth Indramat motor has a motor size of 071, winding code of 061, digital servo feedback, plain shaft with sealing ring, and a 5.0 Nm holding brake. You can get it from Wake Industrial with a one-year warranty period.

MHD071B-061-NG1-UN Documents

  • MHD071B061NG1UN
  • MHD071B 061 NG1 UN
  • mhd071b-061-ng1-un
  • MHD71B-061-NG1-UN

MHD071B-061-NG1-UN Technical Specifications

Driven Shaft: Plain
Protection Category: IP65
Motor Encoder: Digital servo Feedback
Holding brake : Equipped
Housing design : For Natural Convection or surface cooling
Characteristic Motor Speed: 4500min-1
Maximum Current: 50.5 A
Winding Inductivity: 7.2mH
Maximum Speed : 6000min-1
Weight: 6kg

Frequently Asked Questions about MHD071B-061-NG1-UN


Q: Can third party cables be used for the power and motor feedback connection of the MHD071B-061-NG1-UN?

A: The use of third party cable for the electrical connection of the MHD071B-061-NG1-UN is not recommended. Rexroth Indramat produce standardized electrical cable that can be ordered with industrial motor.

Q: What industrial application is the MHD071B-061-NG1-UN designed for?

A: The MHD071B-061-NG1-UN is intended to be used as servo and main drive motors in industrial applications that require motor accuracy over a broad speed range. Example of industrial application compatible with this industrial motor include textile machines, food processing machines, handling machines and lots more.

Q: What are the common operator mistakes the can lead to the dagerous movement of the MHD071B-061-NG1-UN?

A: Although this industrial motor is design to meet the higest standards of operational safety, dangerous motor movement can occur if the motor is used with defective components or configuration parameters. The improper or wrong wiring of this industrial motor can also lead to dangerous motor movement.

Q: How often should the MHD071B-061-NG1-UN be cleaned?

A: The accumulation of dirt and other foreign particles on the housing of the MHD071B-061-NG1-UN can interfare with its temperature regulation system. To ensure smooth operation, the motor should be cleaned at least once a month.

Q: Can damaged electrical cables used with the MHD071B-061-NG1-UN be repaired?

A: The repair of damaged electrical cables is not allowed as they can later cause fatal electrical accidents. Damaged electrical cables should be removed and replaced as soon as they are discovered.
