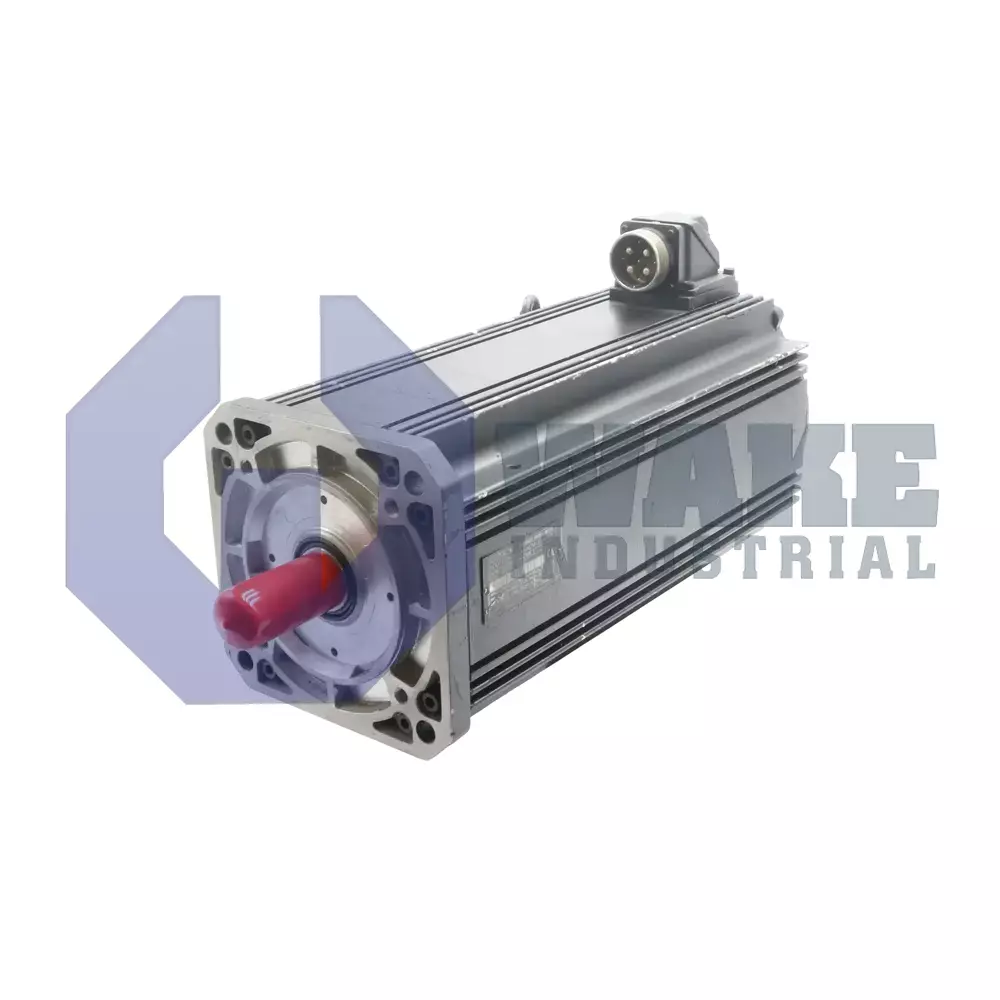

MDD112D-N-030-N2M-130PA1 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
MPN: R911262804
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
Current response time:
3 Minutes
31 Seconds
The Bosch Rexroth Indramat MDD112D-N-030-N2M-130PA1 is part of the MDD Synchronous Motors series and is designed for use with digital drive controllers. It offers a continuous torque at standstill of 38.0 Nm and a nominal speed of 3000 revolutions per minute. This motor features an integrated multiturn absolute encoder, a keyway shaft type with seal, and a holding brake with a brake torque of 14.0 Nm.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MDD112D-N-030-N2M-130PA1 is a synchronous servo motor produced by Bosch Rexroth Indramat as part of the MDD Synchronous Motors series. It is intended for use with compatible digital drive controllers, where it converts commanded electrical input into controlled torque and rotary motion for automated machinery and material-handling cells. By combining electronic feedback with electromagnetic actuation, the motor supports accurate positioning and stable speed control during repeatable motion cycles under changing load conditions. This operating profile suits axes that must start, stop, and reverse direction while maintaining consistent motion quality.
The motor can generate a continuous standstill torque of 38.0 Nm, supplying steady holding force without excessive heating during static phases. Under rated electrical frequency, it reaches a nominal speed of 3000 rpm, which is the upper steady-state velocity available for normal process duty. A centering diameter of 130 mm aligns the flange with mounting faces so the motor seats accurately during installation. For powered-off holding, the integrated blocking brake applies 14.0 Nm of torque directly to the shaft. Rotor position is monitored by an integrated multi-turn absolute encoder, allowing the controller to retain absolute position information after power loss and support closed-loop corrections during operation.
Power and feedback conductors exit on side A through a sealed connector interface, and signals are returned as Digital servo feedback (DSF) for drive communication. The connector arrangement keeps motor and feedback wiring consolidated at one end, which helps maintain orderly cable routing in compact machine spaces. Standard dynamic balancing helps limit vibration at operating speed, while the standard housing and motor size 112 fit common machine frames without changing the basic mounting concept. Code D length extends the active magnetic section to increase torque output without changing the single-ended shaft layout. The driven element is coupled through a keyway, and the output journal uses a shaft seal to limit contaminant ingress.
Frequently Asked Questions about MDD112D-N-030-N2M-130PA1:
Q: What is the continuous torque at standstill for the MDD112D-N-030-N2M-130PA1 motor?
A: This MDD112D-N-030-N2M-130PA1 motor provides a continuous torque of 38.0 Nm at standstill.
Q: What type of encoder is integrated into the MDD112D-N-030-N2M-130PA1 motor?
A: The MDD112D-N-030-N2M-130PA1 features an integrated multiturn absolute encoder for position feedback.
Q: Does the MDD112D-N-030-N2M-130PA1 motor have a holding brake, and what is its torque?
A: A blocking brake is included, with a holding brake torque rated at 14.0 Nm.
Q: What type of shaft and sealing does the MDD112D-N-030-N2M-130PA1 motor use?
A: The shaft type for this motor is a keyway design with a shaft seal included.
Q: Where is the electrical connection located on the MDD112D-N-030-N2M-130PA1 motor, and what type is it?
A: Connection for this model is made via a connector positioned on Side A.
