Product Description

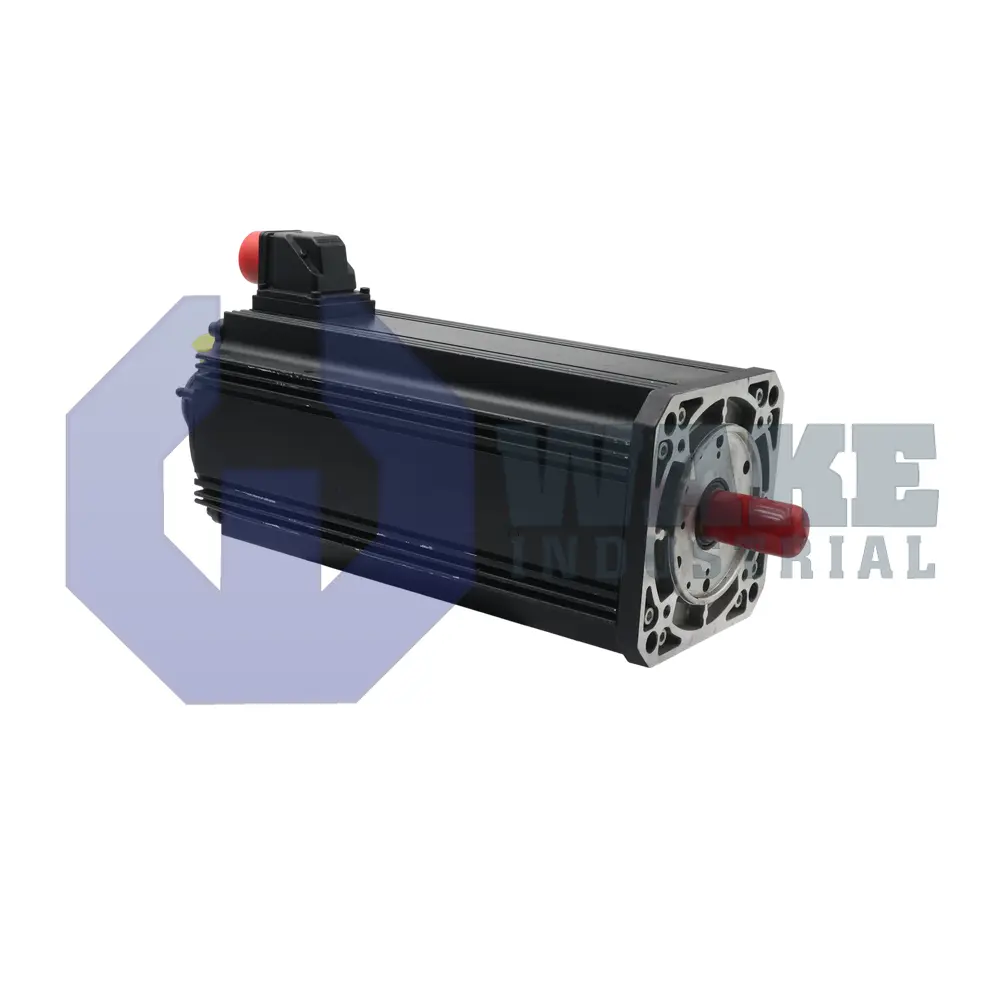

The MDD112D-N-030-N2M-130GA0 AC synchronous motor supports stationary operation under weather-proofed conditions in adherence to EN 60721-3-3 or IEC 721-3-3 specifications. This Bosch Rexroth motor can function as a rapid-response and cost-effective system when it is used along with a digital drive controller from the same manufacturer. The permanent magnets of the device are fitted on a laminated core. It has high overload capabilities because of efficient heat conduction between the exterior wall of the motor housing and the stator windings. The product can be put to use for extremely demanding applications only if it is shock decoupled or shock-damp mounted.

The motor is designed in such a way that the shaft is capable of withstanding high radial loads. It supports the direct attachment of belt pulleys and pinions on the shaft. The flange features through-holes to allow mounting according to IM B5 or IM B14 design. The device features a balance class of N in adherence with DIN VDE 0530, section 14 specifications. The unit encompasses a plain shaft with the connector to side A for power connection. It features a thermal time constant of 120 minutes. The product must be installed at a height of less than 1,000m above sea level. The MDD112D-N-030-N2M-130GA0 digital motor can be shipped to any address worldwide and is backed by a one-year warranty.

The maximum torque that is achievable with the synchronous motor is based on the drive used along with it. The device has a rotor moment of inertia of 230 x 10^-4 kgm². It has a protection category of IP 65. The unit does not have a holding brake to hold or clamp the output shaft in a standstill position. The coating of the housing is resistant to lyes and diluted acids. If the product is mounted in either IM V3 or IM V19 orientation, it is important to ensure that there is no liquid collection at the output shaft.
