Product Description:

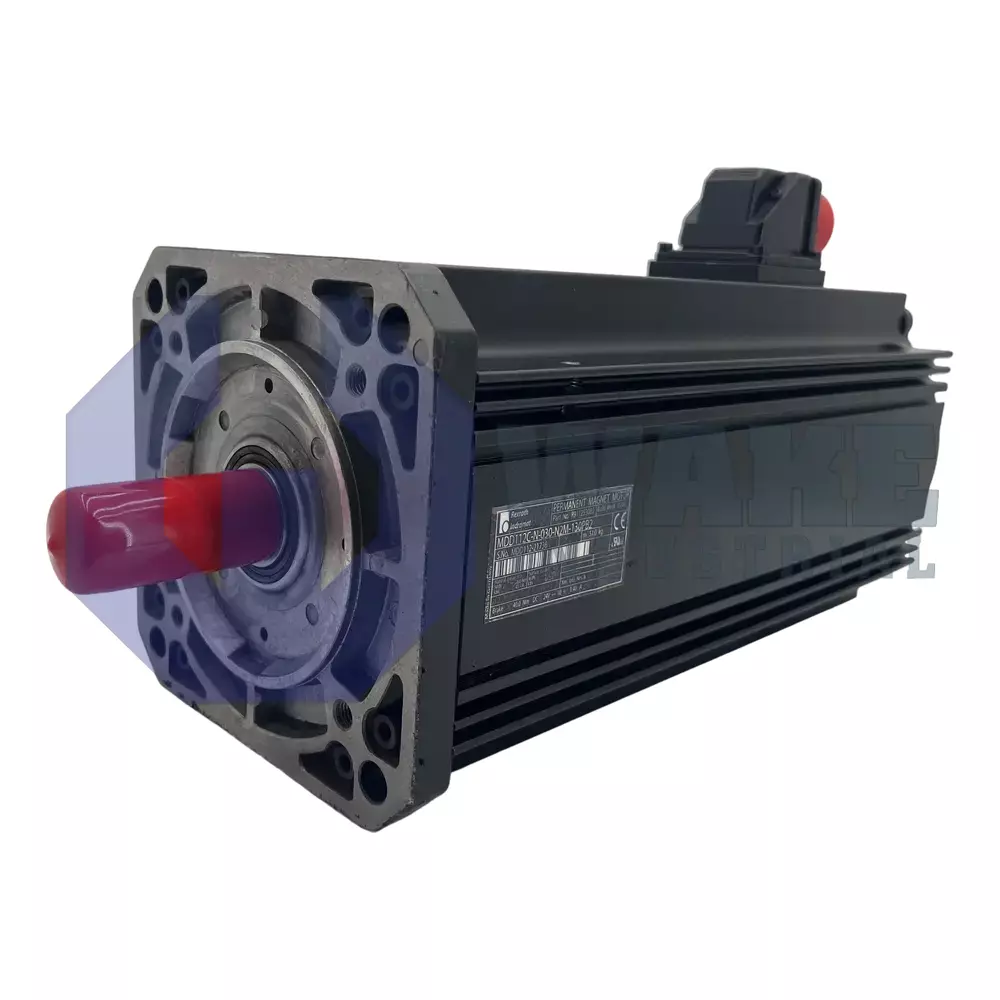

The MDD112C-N-030-N2M-130PB2 is a synchronous servo motor produced by Bosch Rexroth Indramat within the MDD Synchronous Motors series. It is intended for use with digital drive controllers, where it converts commanded drive output into rotary motion for position-controlled axes, conveyors, and handling modules. This arrangement supports accurate velocity and torque regulation in automated machinery. Because it is a synchronous servo motor, it can respond closely to changing drive commands during acceleration, deceleration, and load changes. The unit is suitable for multi-axis systems that require repeatable motion and stable closed-loop performance.

At standstill, the rotor can deliver 28.0 Nm of continuous torque, while the integrated blocking brake is rated at 40.0 Nm. The motor has a nominal speed of 3000 rpm, and a centering diameter of 130 mm supports accurate mounting alignment. Power and feedback plugs are positioned on Side B of the housing, which helps keep the connection area at the rear of the motor. The motor uses standard dynamic balancing to reduce vibration during operation. It also has a shaft seal to help protect the bearing area from coolant or fine dust, and it uses a single-ended shaft in frame size 112 with length code C.

Power is supplied through a keyed connector, which helps maintain the correct mating orientation during installation. Rotor position is detected by an integrated multi-turn absolute encoder, and the signal is transmitted as digital servo feedback (DSF) to the drive. This allows closed-loop control to remain available after power cycles without requiring an external feedback device. The output shaft uses a keyway for positive torque transmission to pulleys or gear couplings. The feedback and shaft arrangement support accurate positioning and dependable torque transfer in automated motion applications.
