Product Description:

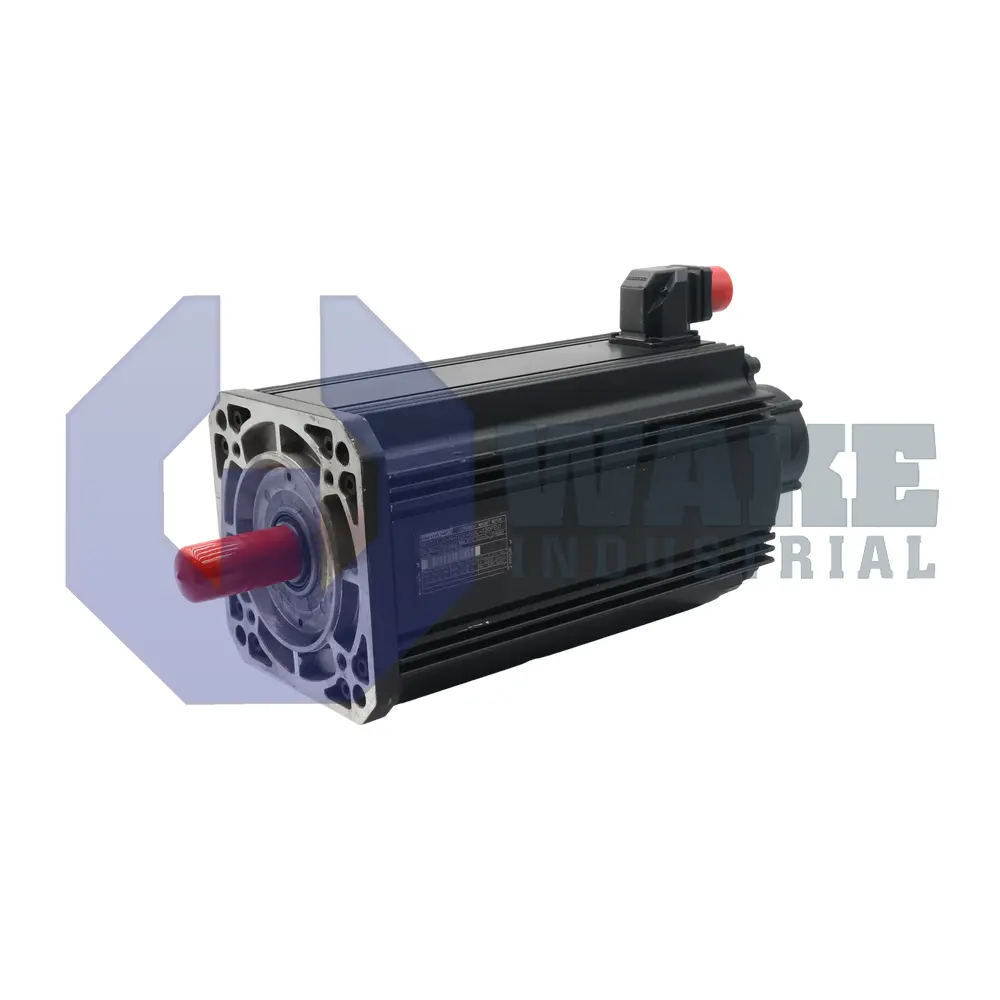

The MDD112C-N-030-N2M-130PB1 is a synchronous servo motor produced by Bosch Rexroth Indramat as part of the MDD Synchronous Motors series. Intended for use with digital drive controllers, this motor converts controlled three-phase current into torque for coordinated motion axes in packaging lines, machine tools, and material handling systems. Its design supports accurate position control, and the integrated connector layout helps reduce cable-routing congestion in compact automation assemblies. This arrangement also helps keep motor, brake, and feedback connections organized in multi-axis installations.

At standstill, the motor provides a continuous torque of 28.0 Nm, allowing it to resist load without exceeding thermal limits. Under commanded rotation, the unit reaches a nominal speed of 3000 rpm, giving the paired controller a common operating range for servo-driven axes. Position information is transmitted through digital servo feedback from an integrated multi-turn absolute encoder, allowing the drive to track several mechanical revolutions with closed-loop control. A blocking brake rated at 14.0 Nm secures vertical or suspended axes when power is removed. A flange recess measuring 130 mm in diameter provides accurate centering during installation on matching machine interfaces.

Connections for power, brake, and feedback exit on side B, keeping cable access at the non-drive end of the machine. The shaft uses a keyway, so couplings can transmit torque without slipping, and a shaft seal helps protect the bearing area from coolant or dust. Standard dynamic balancing helps reduce vibration during operation and supports smooth running in applications with repeated acceleration and deceleration. The motor has Motor Size 112 and Motor Length Code C, which indicate the housing size and stack length used for this version.
