MDD112C-N-020-N2L-130PB1
MPN: R911247353
No Tariffs On US Orders- Straightforward Pricing: No Rush Fees, No Credit Card Fees
-
In-Stock, Ships Today

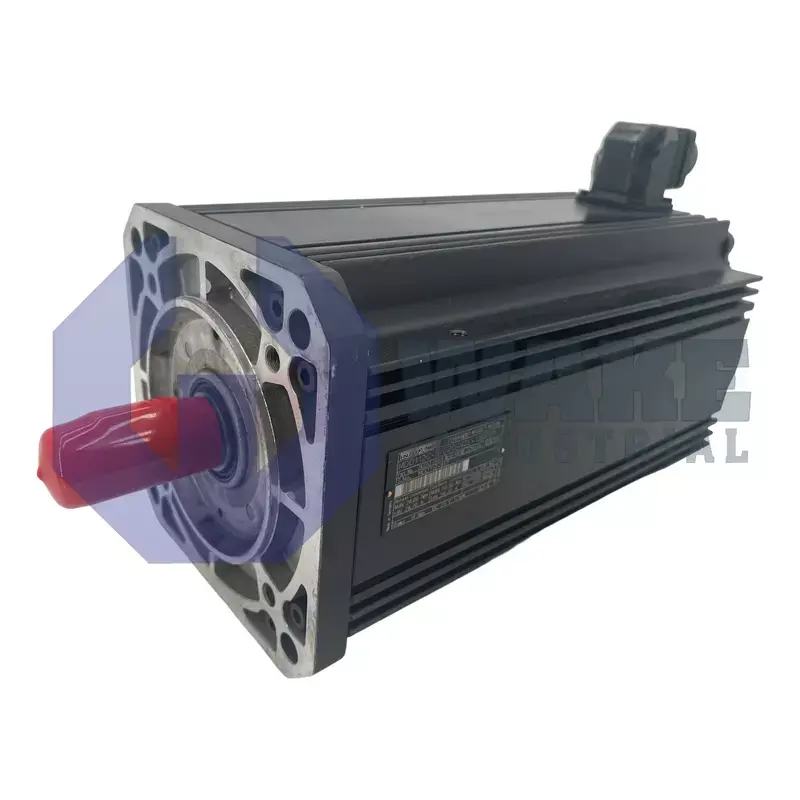

The MDD112C-N-020-N2L-130PB1 Servo Motor is manufactured by Bosch Rexroth Indramat. This unit operates with a 2000 Min nominal speed, Digital Servo Feedback, a(n) Output Shaft with Keyway, and it is Equipped with a blocking brake.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MDD112C-N-020-N2L-130PB1 digital AC servomotor has high dynamics because of a favorable torque-to-inertia ratio. The Bosch Rexroth motor depicts a standard centering diameter of 130mm. The product is designed for operation between 0°C and 45°C. This device encompasses protection against water penetration. The housing coat of the unit tends to peel if it is cleaned often with a steam cleaner. The AC motor must not have fluid accumulation at its output shaft when it is installed upright with the shaft towards the top. This product is operated in printing, packaging and textile machines. The device is integrated with a temperature sensor in its windings to monitor its temperature and avoid overload damage.
The motor has 97.3Nm theoretical maximum torque. The floating bearing of the product absorbs the radial forces encountered during operation. The device encompasses a sealing ring for its shaft. The unit is associated with a shaft fitted with a sealing ring. It is best suited for applications where high precision is of prime concern. The motor is fitted with a 14Nm blocking brake. This product makes use of bearings that are lubricated for a lifetime. The device supports continuous start-stop operations with a high repetition rate because of its high cyclic load capacity. This AC motor features a warranty period of one year.
The product implements digital servo feedback. The device is meant to support a maximum installation elevation of 1,000m over sea level. The unit has an IP 65 degree of protection. Its coating is resistant to dilute acids and lyes. The motor incorporates a rotor with 170 x 10-4 kgm2 moment of inertia. This product features an overall length of 462mm. The device utilizes a power connector with a minimum 4mm2 cross-section when natural convection cooling mode is preferred. This digital motor is transported in custom military-grade packaging to avoid damage during transit.
