Product Description:

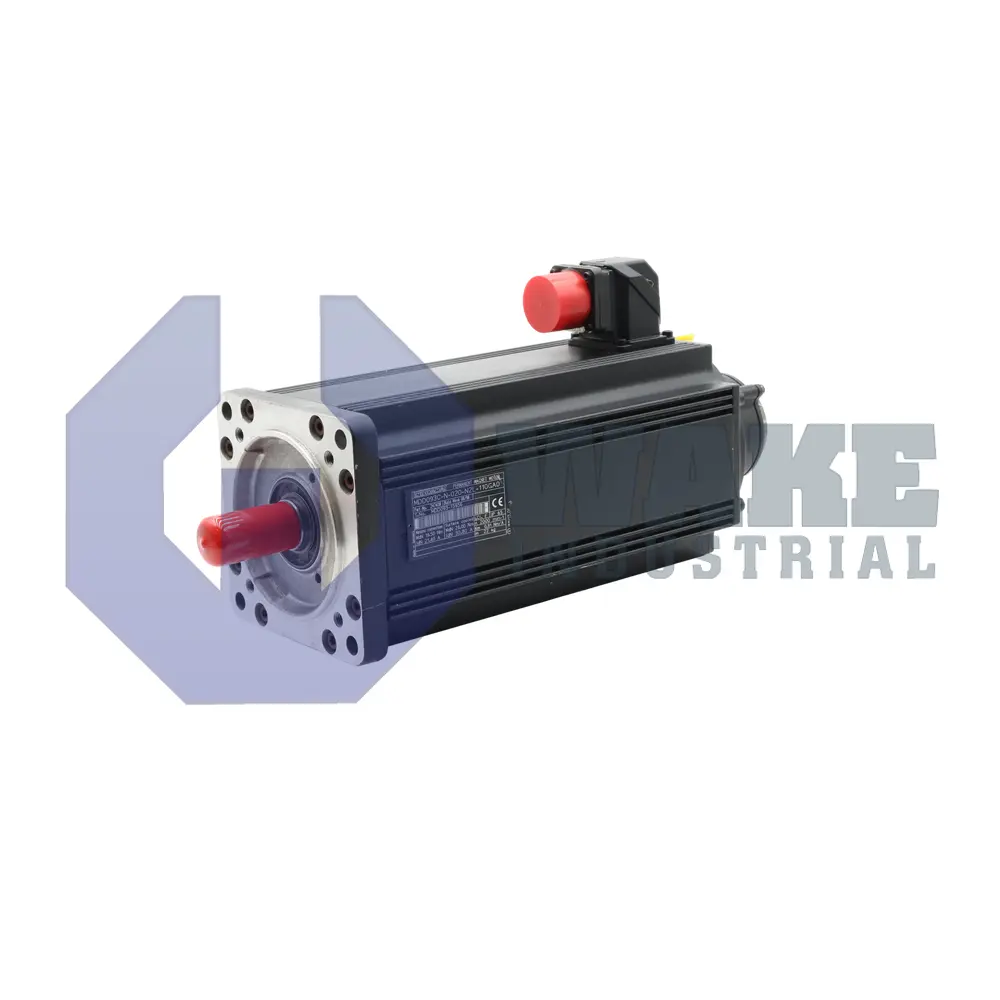

The MDD093C-N-030-N2M-130GR0 is a synchronous servo motor produced by Bosch Rexroth Indramat and included in the MDD Synchronous Motors series. As a motor for digital drive controllers, it converts controlled electrical power into precise rotational motion for positioning axes and speed-regulated machinery in automated lines. When paired with a compatible controller, it supports repeatable starts, stops, and speed changes during continuous machine operation. Its closed-loop operation helps automated equipment maintain stable motion during indexing, transfer, and other synchronized process steps.

This model reaches a nominal speed of 3000 rpm, which is the rated continuous shaft speed. Accurate mechanical alignment to the driven load is aided by a centering diameter of 130 mm, which forms the pilot fit in companion housings. The feedback loop relies on an integrated multiturn absolute encoder, so the controller can retain angular position information across multiple revolutions after power is restored. This feedback arrangement also supports stable synchronization between the motor and the drive during acceleration and deceleration. Power and feedback conductors exit on the right side of the stator housing, which can simplify cable routing in layouts with one-sided harness entry. Rotational vibration is minimized because the rotor uses a standard balancing quality grade for general-purpose drive tasks.

Physical dimensions follow size code 093, while length code C indicates a mid-length active stack suited to medium-duty axes. Shaft protection against lubricant migration and dust ingress is provided with a shaft seal, allowing use in ventilated enclosures. The shaft is plain on side A and the motor is supplied without a blocking brake, so holding torque during power-off must come from external mechanics or drive-generated torque. A plain shaft arrangement allows torque transfer through a machine coupling selected for the application. This motor is suitable for conveyor sections, gantry slides, and other servo axes where precise feedback is needed but an integrated holding brake is not required.
