MDD093C-N-030-N2M-110PL0 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MDD093C-N-030-N2M-110PL0 is a motor from the MDD Synchronous Motors series, made for digital drive controllers. It features a nominal speed of 3000 min⁻¹, a centering diameter of 110 mm, and an integrated multiturn absolute encoder. The motor has standard housing and balancing, a shaft with keyway and shaft seal, and uses digital servo feedback.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:

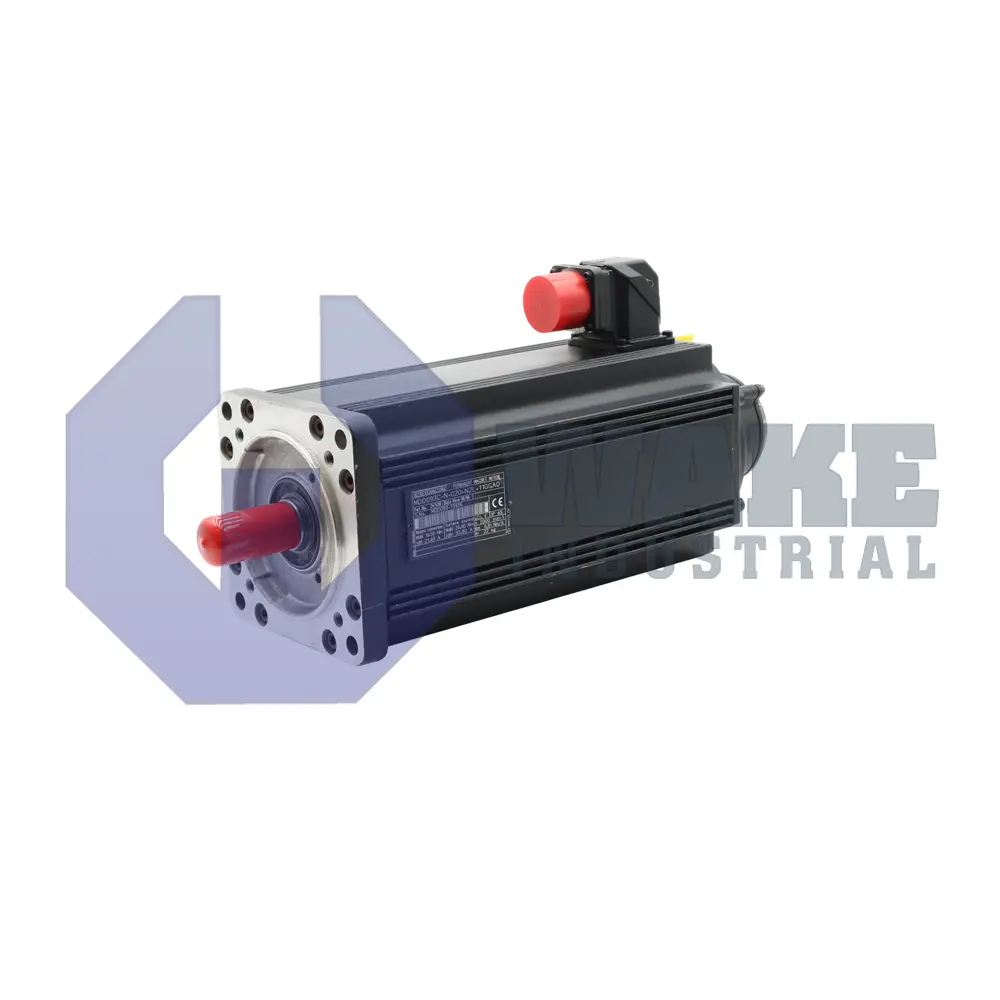

The MDD093C-N-030-N2M-110PL0 is a synchronous servo motor built by Bosch Rexroth Indramat for the MDD Synchronous Motors series. It is designed for use with digital drive controllers that require accurate rotary motion in automated machinery. Typical duties include indexing tables, gantry axes, and packaging equipment where repeatable speed and position control are important.
Rated speed reaches 3000 min⁻¹, which suits common ball-screw pitches and helps simplify controller scaling. Position data is supplied through digital servo feedback, allowing the drive to monitor motion continuously during operation. An integrated multiturn absolute encoder preserves position information after power loss, which reduces homing time when the machine restarts.
A centering shoulder of 110 mm aligns the housing with the mounting flange, and the keyway shaft supports positive torque transfer to couplings or pulleys. The motor is supplied without a blocking brake, so any holding function must be provided elsewhere in the axis. A fitted shaft seal helps protect the bearing area, and a single connector on the left side combines power and feedback wiring for cleaner cable routing.
Wake Industrial stocks this motor, offers same-day shipping for urgent orders, and includes a 1-year warranty with each unit. Quotations remain valid for 30 days, which can help purchasing teams plan approvals without rushing a replacement decision. For general questions about type codes or fault codes, customers can use the chat tool available on the website and receive a prompt reply. This support channel is useful when maintenance staff need quick clarification before placing an order online today.
Frequently Asked Questions about MDD093C-N-030-N2M-110PL0:
Q: What type of shaft is equipped on the MDD093C-N-030-N2M-110PL0 motor?
A: This motor features a keyway shaft design, allowing for secure coupling to driven equipment.
Q: What type of encoder does the MDD093C-N-030-N2M-110PL0 use?
A: The MDD093C-N-030-N2M-110PL0 has an integrated multiturn absolute encoder for precise feedback.
Q: Is a holding brake included on the MDD093C-N-030-N2M-110PL0?
A: This model is constructed without a blocking brake, so it does not hold position when power is removed.
Q: What is the centering diameter of the MDD093C-N-030-N2M-110PL0 motor?
A: The MDD093C-N-030-N2M-110PL0 motor has a centering diameter of 110 mm for secure mounting alignment.
Q: Does the MDD093C-N-030-N2M-110PL0 come with a shaft seal?
A: This motor is fitted with a shaft seal, providing added protection against the ingress of dust and liquids.
