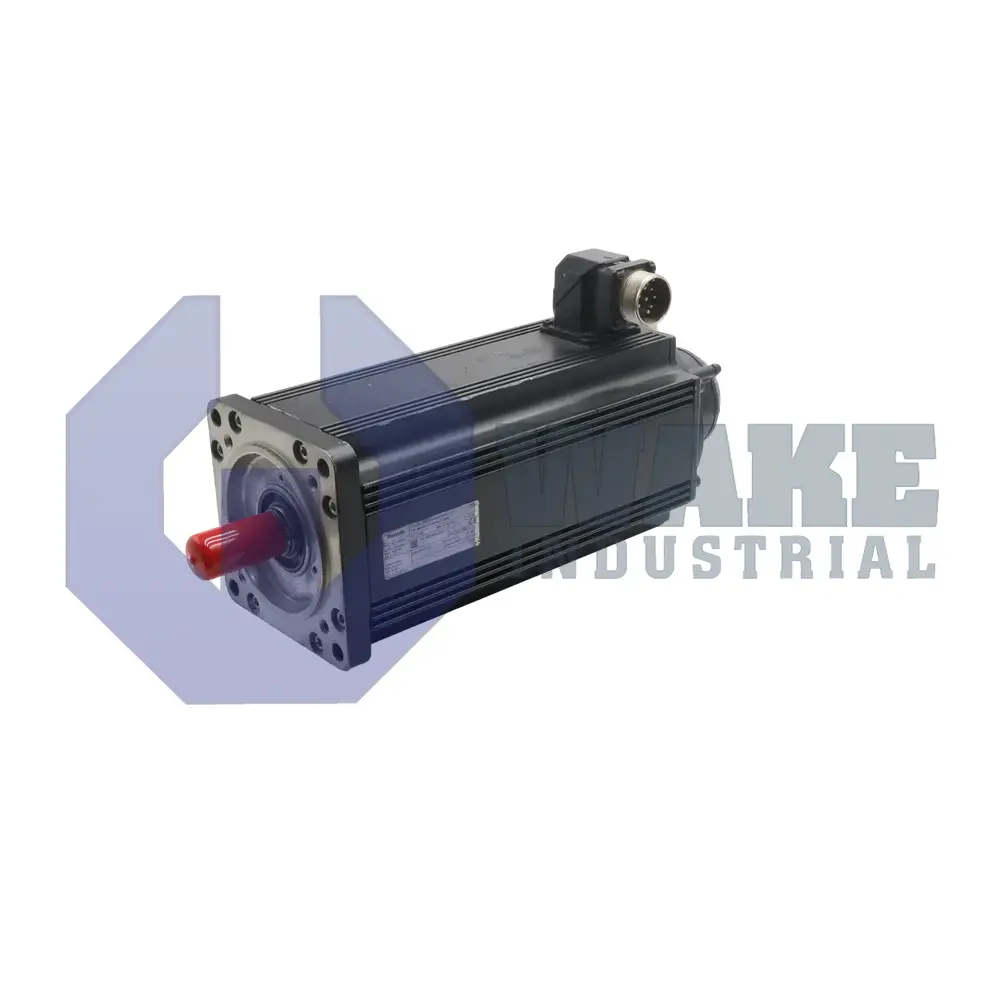

MDD093C-N-030-N2L-110PL2 Bosch Rexroth Indramat
Wake Industrial LLC is not an authorized distributor of this product.
- Straightforward Pricing: No Rush Fees, No Credit Card Fees
The Bosch Rexroth Indramat MDD093C-N-030-N2L-110PL2 is a motor for digital drive controllers and is part of the MDD Synchronous Motors series. This motor has a nominal speed of 3000 rpm, a centering diameter of 110 mm, and features a shaft with keyway and shaft seal. It is equipped with a 22 Nm blocking brake and provides digital servo feedback.
To contact sales for pricing and lead time:
Payment Methods
Shipping Methods
Our Credentials
Product Description:
The MDD093C-N-030-N2L-110PL2 synchronous motor is manufactured by Bosch Rexroth Indramat as part of the MDD Synchronous Motors series. Intended for use with digital drive controllers, it transforms drive current into accurate shaft rotation for gantries, tool changers, and packaging axes. The 093 frame size offers a balance between torque capacity and inertia for medium-duty automation cells.
Its nominal speed of 3000 min⁻¹ allows direct coupling to gearless mechanisms while maintaining servo bandwidth. A blocking brake generates 22 Nm of static torque to hold vertical loads during power loss and prevent drift at standstill. The integrated digital servo feedback (DSF) transducer supplies high-resolution position data to the controller for stable commutation and repeatable positioning. Accurate centering is achieved with a 110 mm pilot diameter that mates to standard mounting flanges. For torque transfer, the shaft is machined with a keyway, which supports secure coupling engagement under reversing duty.
Cable routing is simplified because the motor sockets face the left, letting harnesses follow machine frame geometry in compact layouts. Length code C identifies an elongated stator stack that increases continuous power without widening the footprint. A radial shaft seal protects the bearings from spray and lubricant migration. All power, brake, and feedback leads lock into a single keyed connector, which keeps the electrical interface organized during service.
Wake Industrial supplies this model with a 1-year warranty. Same-day shipping is available for urgent orders. The chat tool available on the website can help with general type-code or fault-code questions when basic identification details need quick clarification.
Frequently Asked Questions about MDD093C-N-030-N2L-110PL2:
Q: What is the holding brake torque provided by the MDD093C-N-030-N2L-110PL2 motor?
A: This model features a holding brake with a torque of 22 Nm for holding applications.
Q: What kind of motor feedback does the MDD093C-N-030-N2L-110PL2 use?
A: The MDD093C-N-030-N2L-110PL2 uses digital servo feedback (DSF) for motor feedback.
Q: What is the nominal speed of the MDD093C-N-030-N2L-110PL2?
A: The nominal speed for this motor is rated at 3000 min⁻¹.
Q: What type of shaft does the MDD093C-N-030-N2L-110PL2 have?
A: The shaft on this model has a keyway and is equipped with a shaft seal.
Q: Where is the connection located on the MDD093C-N-030-N2L-110PL2, and what type of connection does it use?
A: The connection for this motor is via a connector positioned on the left side.
