Product Description:

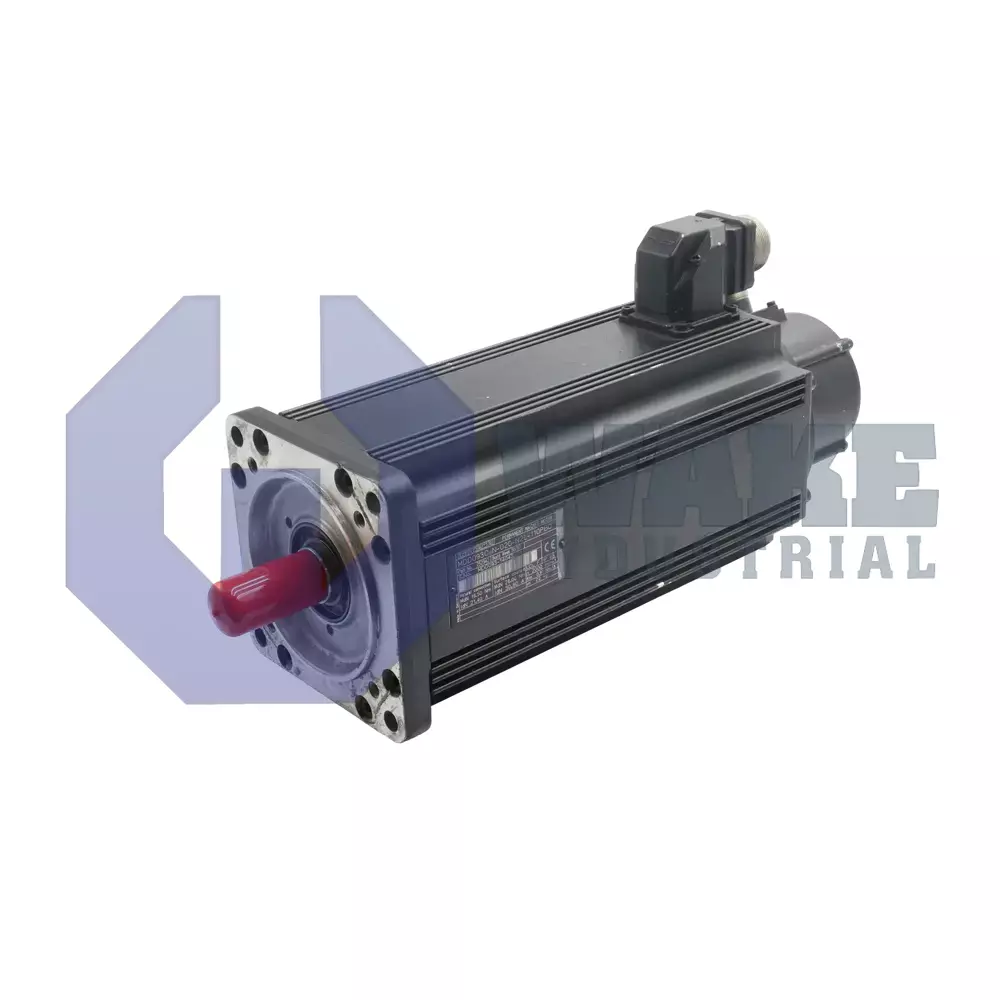

The MDD093C-N-030-N2L-110PB2 is a synchronous servo motor manufactured by Bosch Rexroth Indramat and supplied within the MDD Synchronous Motors series. Designed for digital drive controllers, it generates closed-loop torque and speed for industrial automation axes that depend on electronic position feedback and repeatable motion. The motor serves as the rotary element in a drive package, connecting to a compatible controller through standardized power and feedback interfaces. In operation, the controller can monitor rotor position continuously and correct load-related deviations during acceleration, deceleration, and steady running.

The motor uses a centering diameter of 110 mm with a 093 frame size and C length code, which gives the active section more stack depth for higher continuous torque. The centering shoulder helps align the motor on the machine face, while the dynamic balance is standard and the housing uses the enclosure version commonly used across the series. Electrical and feedback connections are placed on Side B and use a Connector arrangement that helps keep cable routing orderly. The output shaft includes a keyway for positive torque transmission into couplings or pulleys, and the rotor reaches 3000 rpm under rated conditions, matching drives that operate at a nominal electrical frequency of 300 Hz.

The motor is equipped with a blocking brake that supplies 22 Nm of static holding torque when power is removed, which helps keep vertical or suspended loads in place at standstill. Position data is returned through Digital servo feedback (DSF), allowing the controller to regulate speed and torque without a separate external encoder assembly. A standard shaft end is fitted only on the drive side, and a shaft seal helps protect the interior from coolant splash and fine dust. This arrangement suits enclosed industrial machines that require controlled load holding together with accurate feedback during repeated motion cycles.
