Product Description:

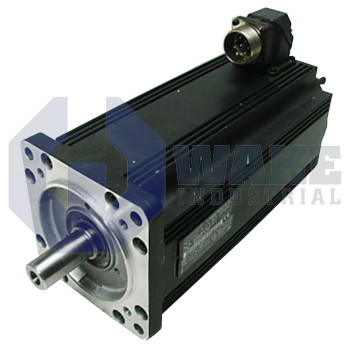

The MDD093C-N-020-N2M-130GA0 is a synchronous servo motor built by Bosch Rexroth Indramat as part of the MDD Synchronous Motors series. Designed for use with digital controllers, it converts commanded electrical input into controlled rotary motion for positioning axes and speed-regulated machinery. Its synchronous motor design supports accurate torque response during starts, stops, and repeated indexing cycles, making it suitable for industrial systems that need stable motion in automated equipment.

The motor operates at a nominal speed of 2000 rpm, which suits moderate-speed applications that need steady torque over a practical operating range. Accurate installation is supported by a centering diameter of 130 mm. Power, feedback, and brake conductors exit on side A, and a connector interface helps keep cable routing compact at the connection point. Motion information is returned through digital servo feedback, allowing the paired drive to regulate position and velocity with high resolution. The motor has frame length C and a size 093 stator package, which fit mid-frame machine layouts. It is supplied without a blocking brake, so any holding function must come from the driven mechanism or drive control.

The output uses a plain shaft, which allows direct coupling or the addition of a suitable hub. It also includes a shaft seal to reduce the entry of contaminants from adjacent machine elements. Position retention after power cycling is supported by an integrated multi-turn absolute encoder, so the axis can retain absolute location information across multiple revolutions. Rotor balance is set to standard balancing, which helps limit vibration during normal operation. The feedback system uses DSF communication, and the housing follows the standard motor form used for this frame size. A plain side-B end cap and the lack of a side-B shaft extension help the motor fit machines that already have space allocated for 093-frame geometry.
