Product Description:

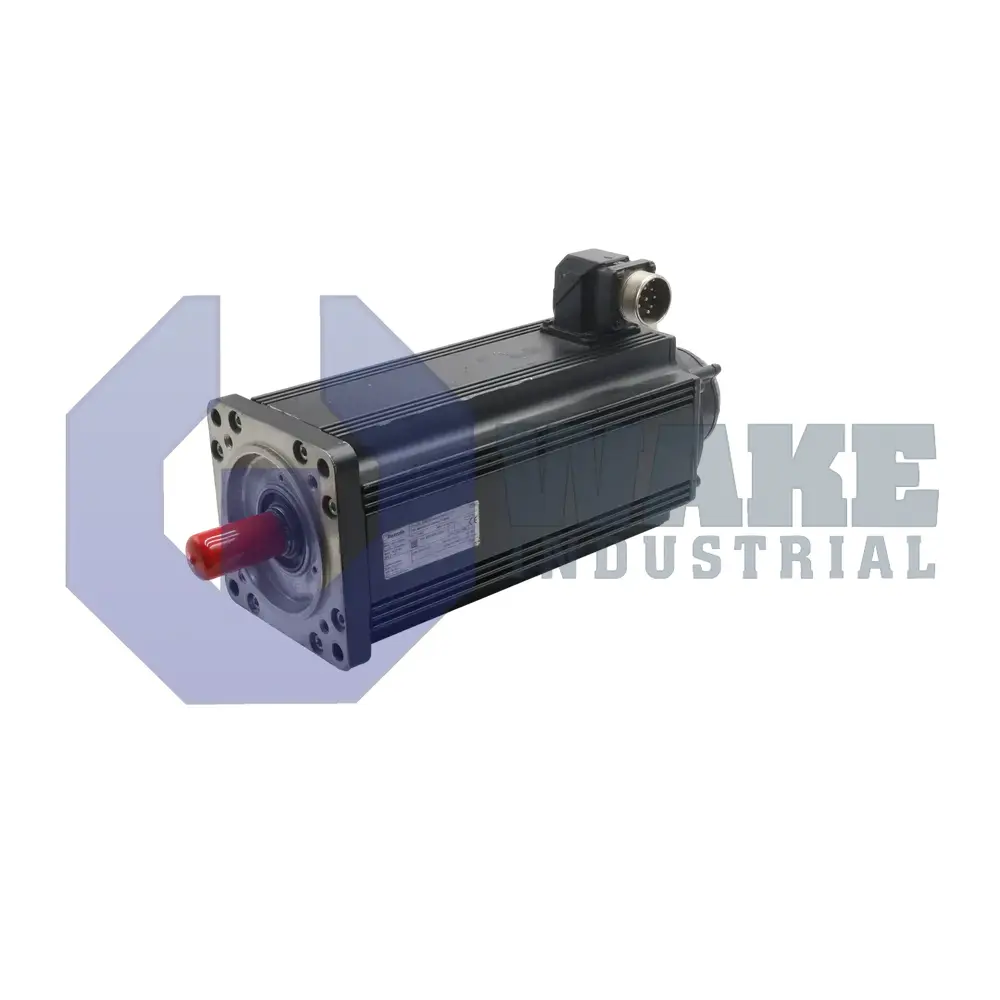

Bosch Rexroth Indramat manufactures the MDD093C-N-020-N2L-110GL0 within the MDD Synchronous Motors series. As a motor for digital drive controllers, it converts drive current into controlled rotary motion. It is intended for positioning axes, pick-and-place actuators, and similar industrial tasks that demand closed-loop velocity and torque regulation.

The rotor is dynamically balanced to the standard grade, keeping vibration low when mounted through the 110 mm centering pilot. Rated operation reaches a nominal speed of 2000 rpm, which matches drive controllers that deliver field-oriented current at moderate frequencies. Position and speed data are returned via digital servo feedback, allowing low following error and simplified parameter settings in the drive. Wiring enters from the machine’s left side because the connection orientation is Left. A sealed circular connector couples the power and encoder conductors without hardwiring. For emergency stops, the motor relies on dynamic drive torque only because it is supplied without a blocking brake. The housing follows a standard fin pattern for convection cooling, and the circular connector keeps the wiring interface compact.

The mechanical envelope uses motor size 093 and the longer stator tube identified by length code C. This combination increases continuous torque capacity compared with shorter variants in the same frame. A shaft seal prevents lubricant migration and blocks airborne particles from the interior bearings, while the hardened steel output end remains a plain shaft for direct coupling or clamped hubs. The shaft end is the standard single-sided style, so no extension is provided on side B, and the load is fully supported by internal radial bearings. Electrical leads terminate at a keyed connector, and the standard housing finish matches other motors in the series.
